£192.99
excl. VAT
£231.59 incl. VAT
£231.59
incl. VAT
£192.99 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

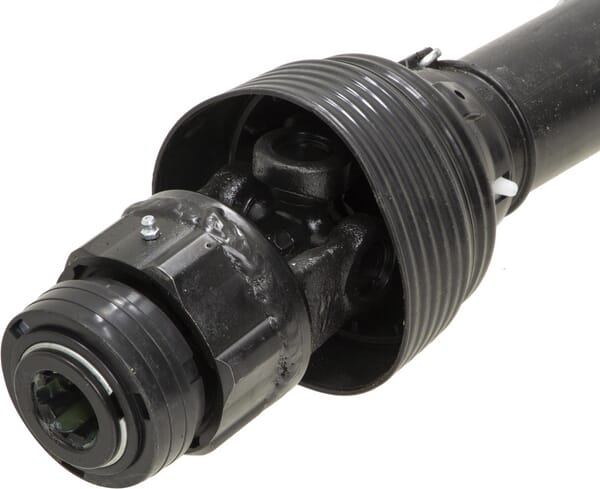

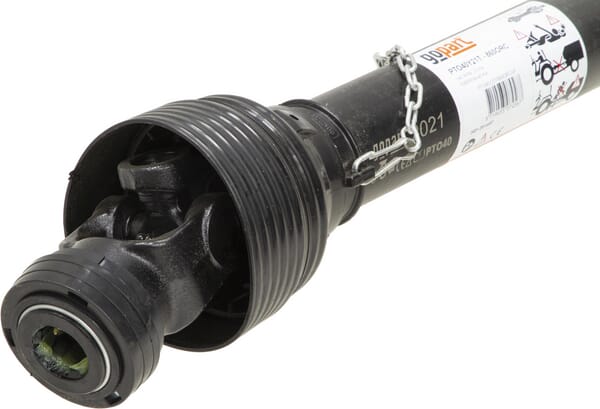

| Attachment machine side | Overrunning clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Cost-effective alternative in lower power range |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 74.6 mm |
| Cross joint length by tractor side | 74.6 mm |
| Inner tube large outside diameter | 36 mm |
| Inner tube wall thickness | 4.5 mm |

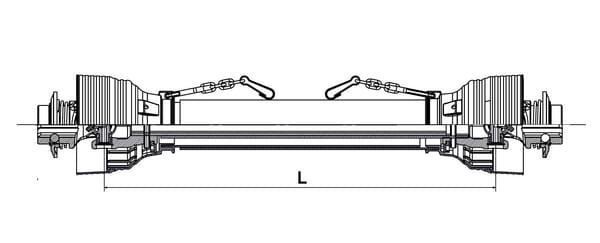

| Length | 860 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Long description | PTO shafts with freewheeling clutch attached, a cost-effective alternative in the lower power range |
| Max dynamic torque | 780 N·m |
| Outer tube large outside diameter | 43.5 mm |
| Outer tube wall thickness | 3.4 mm |
| Power 1000 rpm | 40 kW |
| Power 540 rpm | 26 kW |
| Product details | PTO40, Max. dynamic capacity 540 rpm: 26kW, 460Nm, Max. dynamic capacity 1000 rpm: 40kW, 380Nm, PTO50, Max. dynamic capacity 540 rpm: 35kW, 620Nm, Max. dynamic capacity 1000 rpm: 54kW, 515Nm, PTO60, Max. dynamic capacity 540 rpm: 47kW, 830Nm, Max. dynamic capacity 1000 rpm: 74kW, 710Nm |
| Profile tube shape | Triangular |
| Properties | Fulfils all international safety requirements |
| Pros | Meets all international safety requirements |
| Size code | PTO 40 |
| Technical info | PTO40, Max. dynamic capacity 540 rpm: 26 kW, 460Nm, Max. dynamic capacity 1000 rpm: 40 kW, 380Nm, PTO50, Max. dynamic capacity 540 rpm: 35 kW, 620Nm, Max. dynamic capacity 1000 rpm: 54 kW, 515Nm, PTO60, Max. dynamic capacity 540 rpm: 47kW, 830Nm, Max. dynamic capacity 1000 rpm:74kW, 710Nm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
PTO940Y21DY13821GP
gopart Yoke, Quick disconnect, 1-3/8"-21 spline, PTO 40 PTO940Y21DY13821GP
£28.77 excl.
£34.52 incl.
PTO940Y21DY83238GP
gopart Yoke, Quick disconnect, 38x32mm -8 spline, PTO 40 PTO940Y21DY83238GP
£32.39 excl.
£38.87 incl.
PTO940Y21SBCGP
gopart PTO40 Shearbolt clutch PTO940Y21SBCGP
£84.75 excl.
£101.70 incl.
PTO920OPT1500GP
gopart Profile tube outer 20-40 triangular 43.5x3.4mm L: 1.5m PTO920OPT1500GP
£41.37 excl.
£49.64 incl.
PTO940Y21RTGP
gopart Ratchet clutch, PTO40 PTO940Y21RTGP
£131.33 excl.
£157.60 incl.
Logistics
| EAN | 8719493074567 |
|---|---|
| Unit of measure | EA |
| Weight | 16000 g |
| Dimensions | 1152 × 150 × 150 mm |
| Dangerous goods | No |
You might also like
BPA000343085
gopart Profile tube outer 20-40 triangular 43.5x3.4mm L: 1m PTO920OPT1000GP
£27.89 excl.
£33.47 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000112740

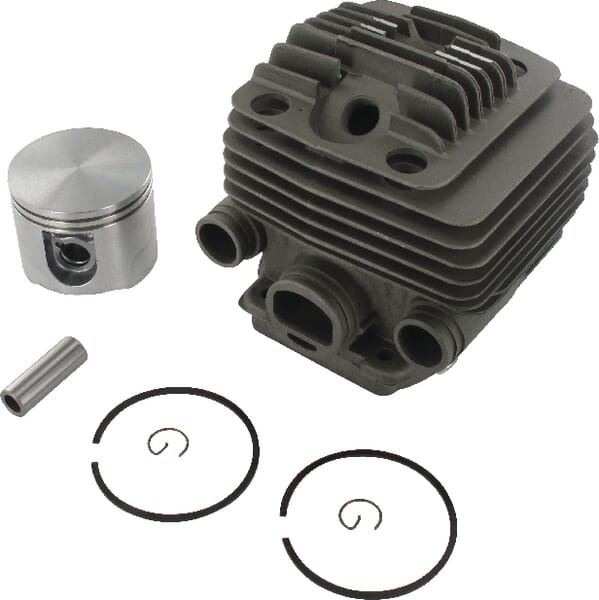

gopart Cylinder complete Ø 56mm, 42240201202GP
£138.27 excl.
£165.92 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000343047
gopart PTO shaft PTO 50 L: 1010mm with overrunning clutch, PTO50Y21T1010ORCGP
£236.02 excl.
£283.22 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000148793
gopart Deep groove ball bearing 10x26x8mm 60002RSRVSGP
£2.43 excl.
£2.92 incl.
In stock
Expected to ship on Thursday 24 September
BPA000310867

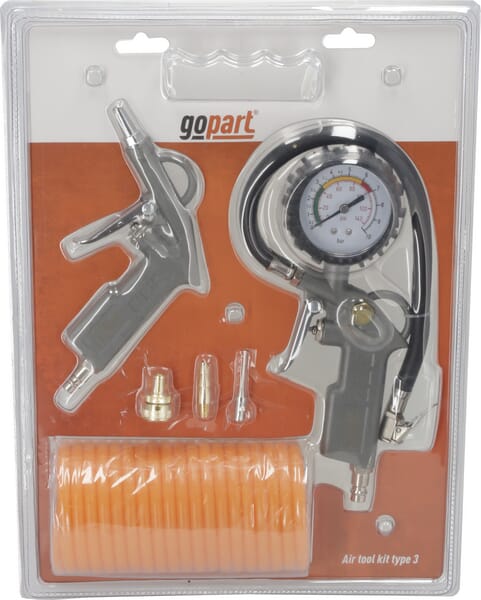

gopart Air tool kit type 3 LT300GP
