£220.36
excl. VAT
£264.43 incl. VAT
£264.43
incl. VAT
£220.36 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

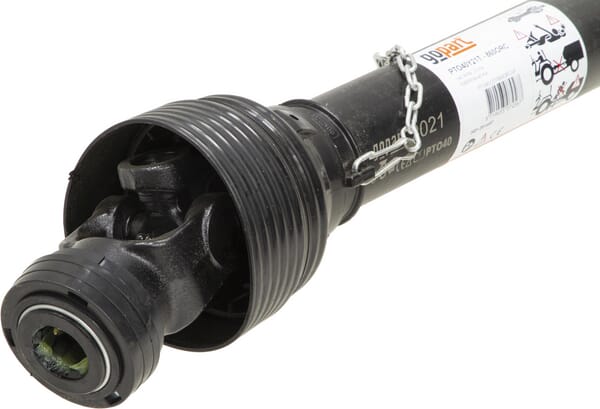

Product details

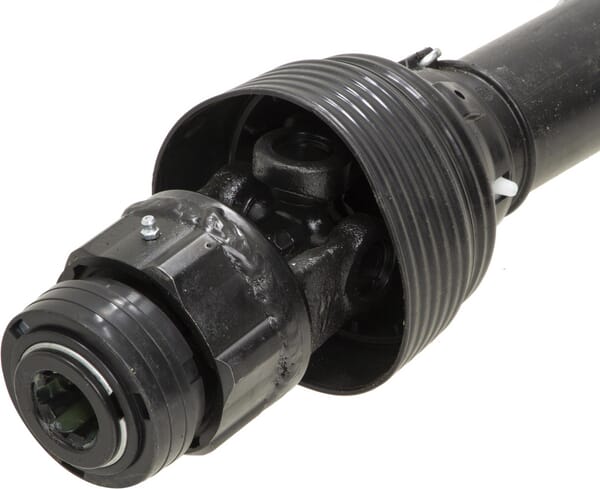

| Attachment machine side | Overrunning clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Benefits | Cost-effective alternative in lower power range |
| Clutch type code | n/a |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 79.6 mm |
| Cross joint length by tractor side | 79.6 mm |
| Inner tube large outside diameter | 45 mm |
| Inner tube wall thickness | 3.8 mm |

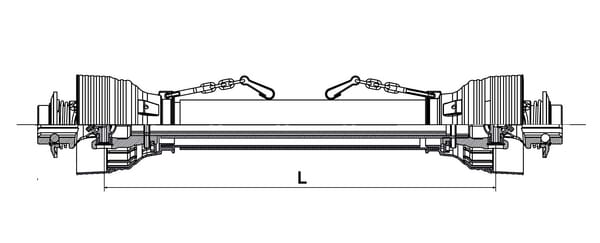

| Length | 860 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Long description | PTO shafts with freewheeling clutch attached, a cost-effective alternative in the lower power range |
| Outer tube large outside diameter | 51.5 mm |
| Outer tube wall thickness | 3 mm |
| Power 1000 rpm | 54 kW |
| Power 540 rpm | 35 kW |
| Product details | PTO40, Max. dynamic capacity 540 rpm: 26kW, 460Nm, Max. dynamic capacity 1000 rpm: 40kW, 380Nm, PTO50, Max. dynamic capacity 540 rpm: 35kW, 620Nm, Max. dynamic capacity 1000 rpm: 54kW, 515Nm, PTO60, Max. dynamic capacity 540 rpm: 47kW, 830Nm, Max. dynamic capacity 1000 rpm: 74kW, 710Nm |
| Profile tube shape | Triangular |
| Properties | Fulfils all international safety requirements |
| Pros | Meets all international safety requirements |
| Size code | PTO 50 |
| Technical info | PTO40, Max. dynamic capacity 540 rpm: 26 kW, 460Nm, Max. dynamic capacity 1000 rpm: 40 kW, 380Nm, PTO50, Max. dynamic capacity 540 rpm: 35 kW, 620Nm, Max. dynamic capacity 1000 rpm: 54 kW, 515Nm, PTO60, Max. dynamic capacity 540 rpm: 47kW, 830Nm, Max. dynamic capacity 1000 rpm:74kW, 710Nm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
PTO950Y21DY13821GP
gopart Yoke, Quick disconnect, 1-3/8"-21 spline, PTO 50 PTO950Y21DY13821GP
£36.70 excl.
£44.04 incl.
PTO950Y21DY83238GP

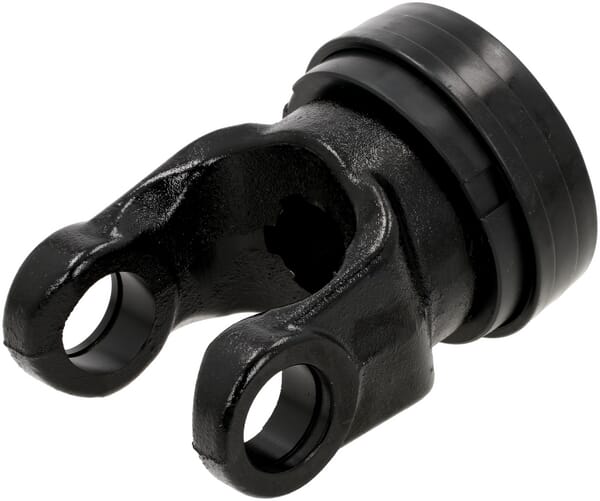

gopart Yoke, Quick disconnect, 38x32mm -8 spline, PTO 50 PTO950Y21DY83238GP
£36.70 excl.
£44.04 incl.
PTO950Y21SBCGP

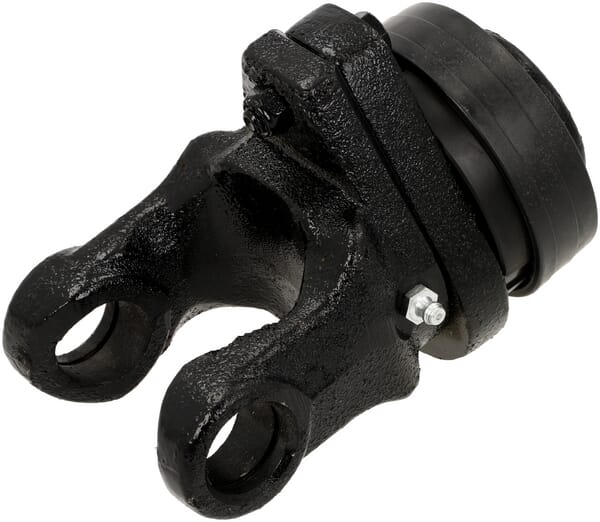

gopart PTO50 Shearbolt clutch PTO950Y21SBCGP
£87.18 excl.
£104.62 incl.
PTO950Y21RTGP

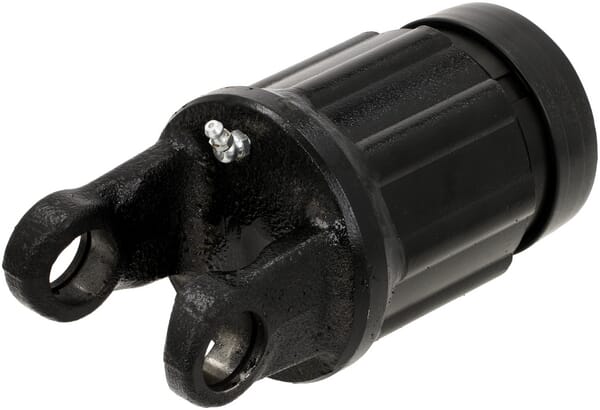

gopart Ratchet clutch, PTO50 PTO950Y21RTGP
£181.71 excl.
£218.05 incl.
PTO950FCGP

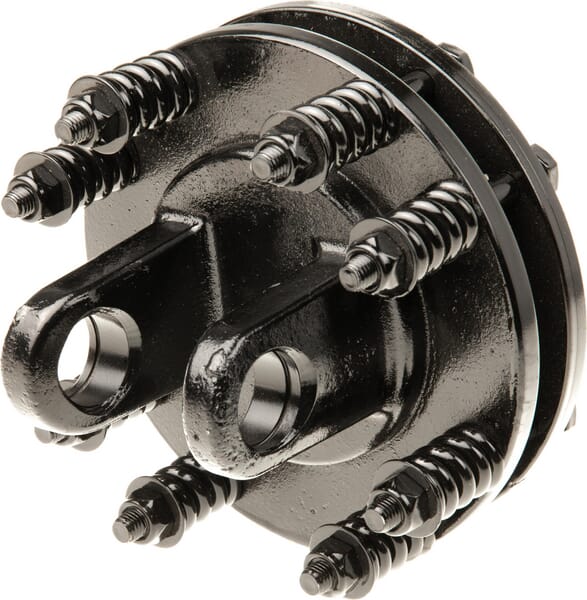

gopart Friction disc clutch PTO 50 PTO950FCGP
£169.12 excl.
£202.94 incl.
Logistics
| EAN | 8719493073317 |
|---|---|
| Unit of measure | EA |
| Weight | 17000 g |
| Dimensions | 1220 × 160 × 160 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000133724

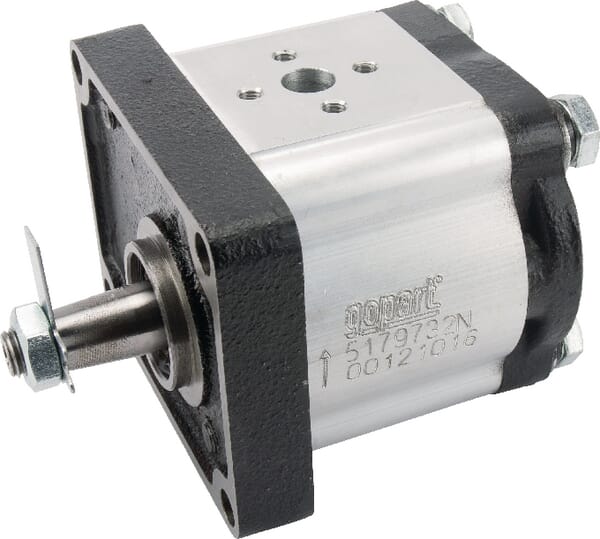

gopart Hydraulic pump 8.2 ccm 5179732N
£213.45 excl.
£256.14 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000090075

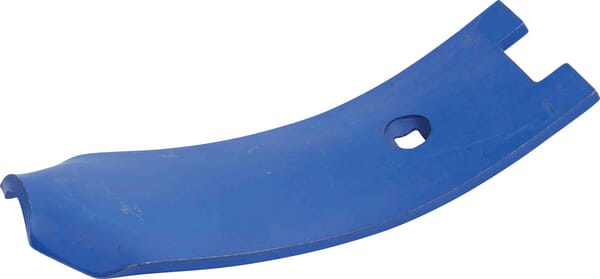

gopart Guide plate LB1 Lemken 3374395GP
£17.31 excl.
£20.77 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000041998
gopart Self-aligning ball bearing 40x90x23mm 1308GP
£10.38 excl.
£12.46 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000272485

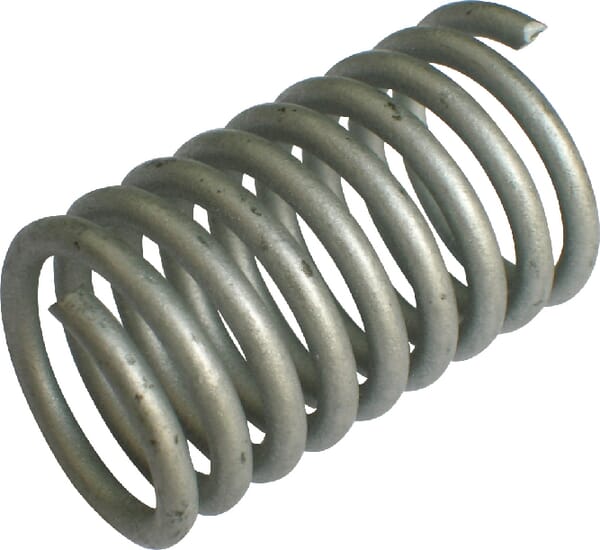

gopart Damping spring 11337913100 FGP440030
£2.73 excl.
£3.28 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000254264

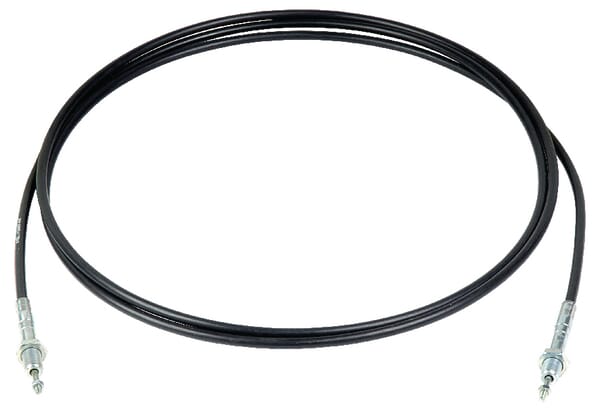

gopart Cord L-4500 D018C1X4500
£51.68 excl.
£62.02 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000315561

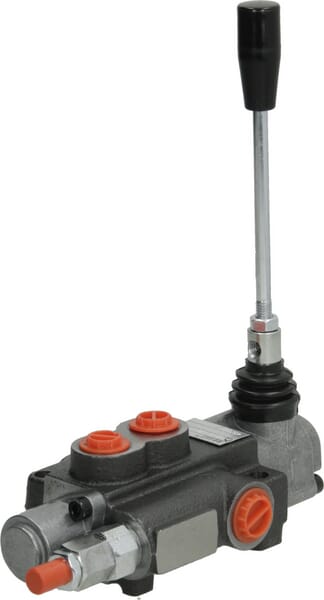

gopart Control valve MBV5/1-A1-KZ1 MBV51001GP
£68.62 excl.
£82.34 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000302702

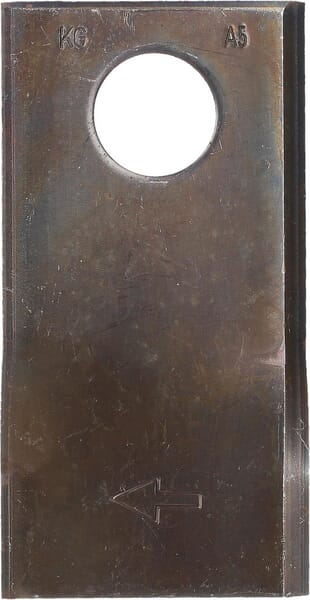

Kverneland / Taarup Mower blade RH 93x47x3mm bore diameter 19mm Suitable for Taarup/PZ 25 pack KT4189300001
