£10.62
excl. VAT
£12.74 incl. VAT
£12.74
incl. VAT
£10.62 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction and agricultural machines, Hydraulic tools, Applications in sensitive environments, Mineral oil-based fluids |
|---|---|
| Benefits | User-friendly, Low leakage, No air pockets during coupling |
| Body size | 3/8 Inch |
| Connectable under pressure | No |
| Connection 1, type | Quick coupling |
| Connection 1, type - male/female | Male |
| Connection 2, thread diameter | 3/8 Inch |
| Connection 2, threads per inch | 19 |
| Connection 2, thread type | BSP |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Female |
| Details | One-handed coupling, With special flat valve |

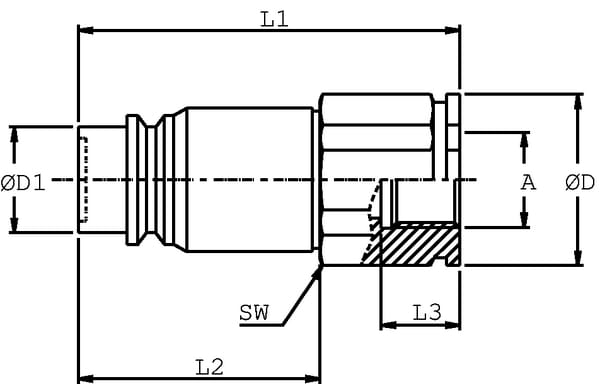

| L1Total length | 59.5 mm |
| L2Connection no 1 length | 40.6 mm |

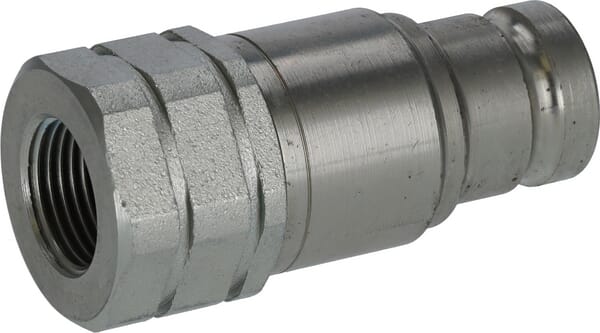

| Long description | Quick release coupling male SKV-M gopart |
| Material | Steel |
| Max working temperature | 100 °C |
| Min. working temperature | -20 °C |
| ØD1Connection no 1 diameter | 12 mm |
| ØDOutside diameter | 27 mm |
| Properties | Locks on both sides |
| Seal material | Nitrile rubber [NBR], Teflon (PTFE) |
| Shape | Straight |
| Size code | BG 2 |
| Unit | Each |
Logistics
| EAN | 8719493094770 |
|---|---|
| Unit of measure | EA |
| Weight | 141 g |
| Dimensions | 62 × 27 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000081730
gopart Tapered roller bearing 35x72x18.25mm 30207GP
£7.79 excl.
£9.35 incl.
In stock
Expected to ship on Friday 18 September
BPA000153687

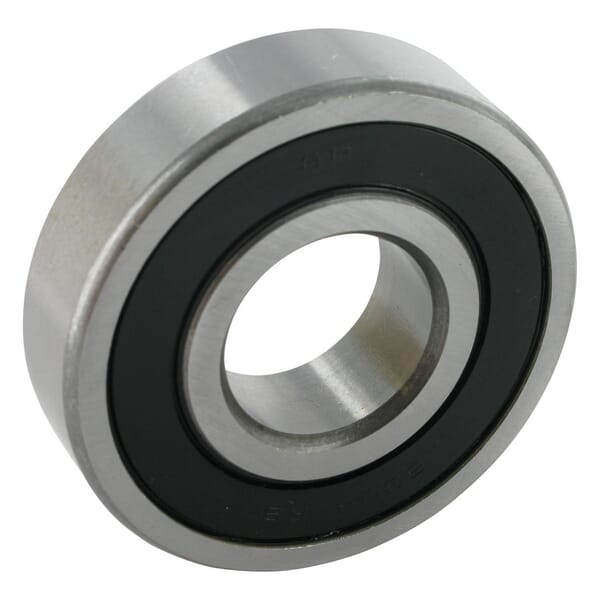

gopart Deep groove ball bearing 45x100x25mm 63092RSGP
£7.13 excl.
£8.56 incl.
In stock
Expected to ship on Friday 18 September
BPA000022000
gopart Copper washer 10 x 21 x 1.5MM 0921173GP
£1.06 excl.
£1.27 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000363139
gopart Quick coupling SKP Female bulkhead 12L, SKPF12N18N
£7.98 excl.
£9.58 incl.
In stock
Expected to ship on Friday 18 September
BPA000376230

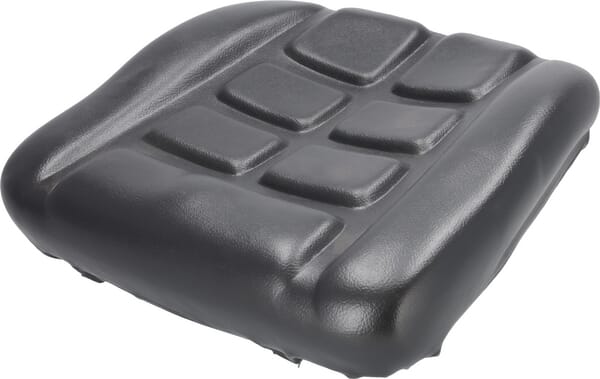

gopart Seat cushion PVC with switch - New design TS901080GP
