£4.76
excl. VAT
£5.71 incl. VAT
£5.71
incl. VAT
£4.76 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

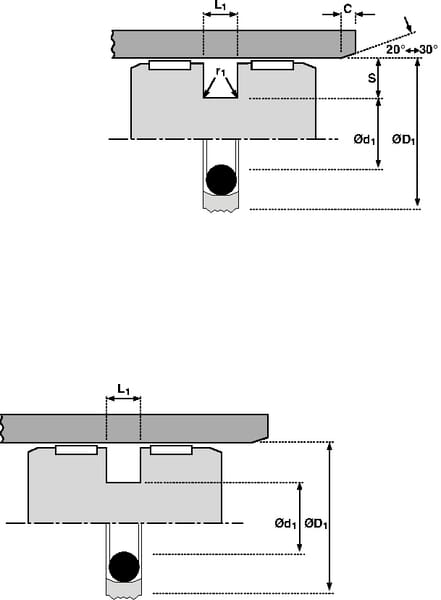

| d1Inside diameter | 64.5 mm |
|---|---|
| D1Outside diameter | 80 mm |
| Groove thickness | 6.3 mm |

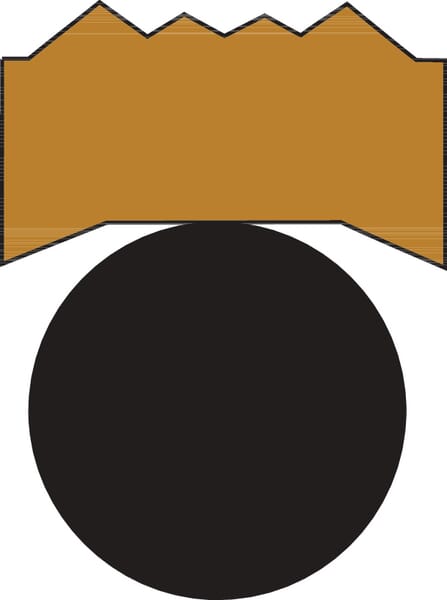

| Includes | Seal ring: polyester elastomer, O-ring: NBR 70 |
| Material | Bronze, Nitrile rubber [NBR], Teflon (PTFE) |
| Max. sliding speed | 1 m/s |
| Max. working pressure | 250 BAR |
| Max. working temperature | 110 °C |
| Min. working temperature | -45 °C |
| Product details | For double-acting cylinders, Maximum operating pressure: 250 bar, It is recommended that a guide ring is fitted to the piston on one or both sides of the seal, e.g. type 87 or 506, The seal does not need to be recalibrated like PTFE standard seals, Easy mounting |
| Pros | Negligible internal leakage compared to a PTFE standard seal, Very flexible and wear-resistant, Low friction, Easy mounting |
| Type | Piston seal |
| Type code | 764 |
| Unit | Each |
| Width | 6.3 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 13 g |
| Dimensions | 81 × 81 × 7 mm |
| Dangerous goods | No |
