£5.06
excl. VAT
£6.07 incl. VAT
£6.07
incl. VAT
£5.06 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

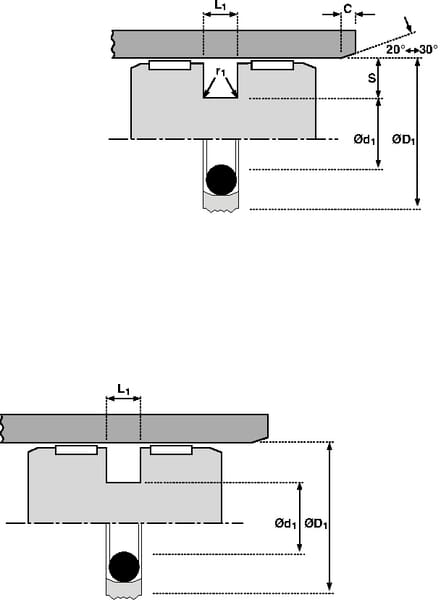

| d1Inside diameter | 74.5 mm |
|---|---|
| D1Outside diameter | 90 mm |
| Groove thickness | 6.3 mm |

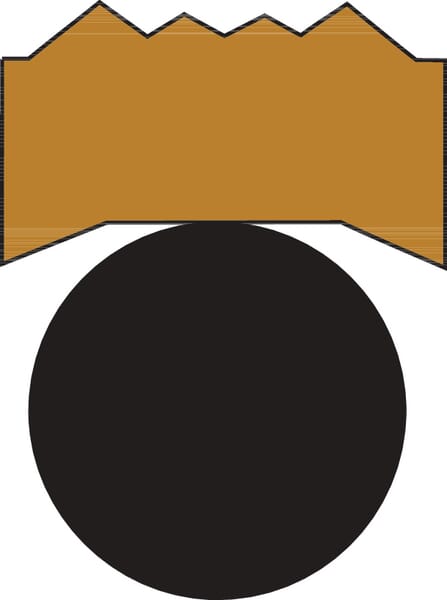

| Includes | Seal ring: polyester elastomer, O-ring: NBR 70 |
| Material | Bronze, Nitrile rubber [NBR], Teflon (PTFE) |
| Max. sliding speed | 1 m/s |
| Max. working pressure | 250 BAR |
| Max. working temperature | 110 °C |
| Min. working temperature | -45 °C |
| Product details | For double-acting cylinders, Maximum operating pressure: 250 bar, It is recommended that a guide ring is fitted to the piston on one or both sides of the seal, e.g. type 87 or 506, The seal does not need to be recalibrated like PTFE standard seals, Easy mounting |
| Pros | Negligible internal leakage compared to a PTFE standard seal, Very flexible and wear-resistant, Low friction, Easy mounting |
| Type | Piston seal |
| Type code | 764 |
| Unit | Each |
| Width | 6.3 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 17 g |
| Dimensions | 150 × 100 × 10 mm |
| Dangerous goods | No |
You might also like

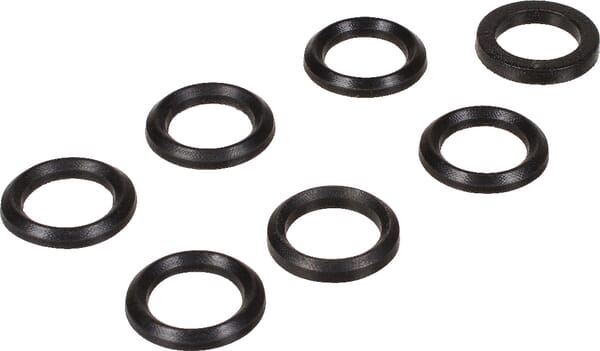

BPA000241667
Hallite Vee-pack set 22x32x21 CH223221
£33.79 excl.
£40.55 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000286939

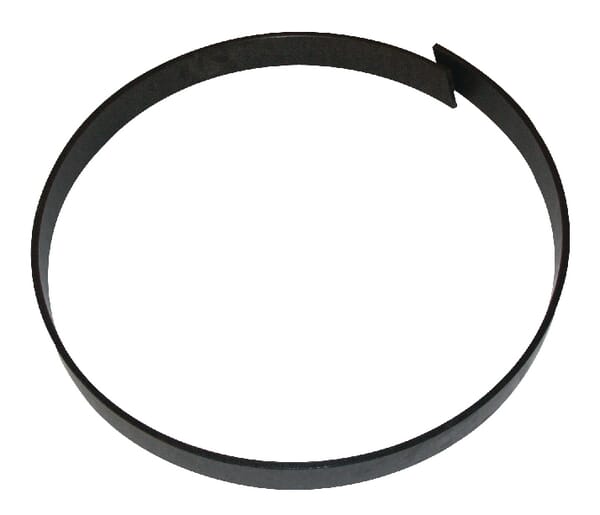

Hallite Guide ring 40x34x10 - GRE F GRE403410F
£4.95 excl.
£5.94 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000234608
Hallite Backup for 75.57 x 5.34 e=1.52 BU7557534
£3.47 excl.
£4.16 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000280066

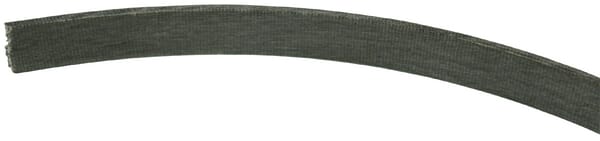

Hallite Guide strip coil 9.9x3 GB993
£69.05 excl.
£82.86 incl.
In stock
Expected to ship on Tuesday 22 September

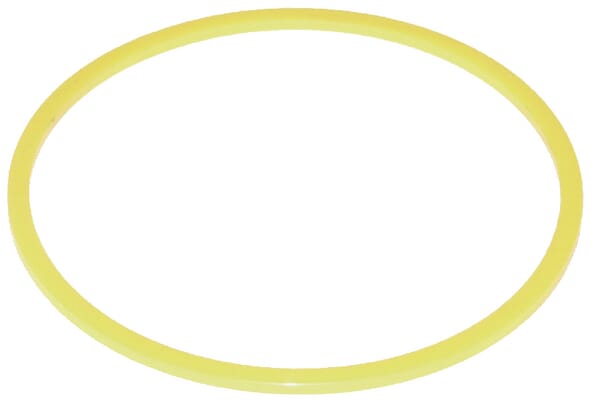

BPA000234588
Hallite Backup for 48.9 x 2.62 e=1.14 BU4890262
£2.46 excl.
£2.95 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000286998
Hallite Guide ring 85x80x9,7 - GRI GRI808597
£7.31 excl.
£8.77 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed

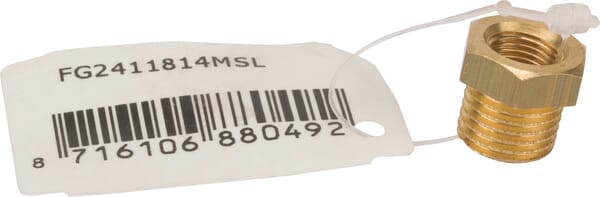

BPA000270602
