Product details
| CWidth | 11.8 mm |
|---|---|
| Long description | SA-UN series rod seals are suitable for use as both rod seals and piston seals. |
| Material | Polyurethane |
| Max. sliding speed | 1 m/s |
| Max. working pressure | 400 BAR |
| Max. working temperature | 110 °C |
| Min. working temperature | -45 °C |

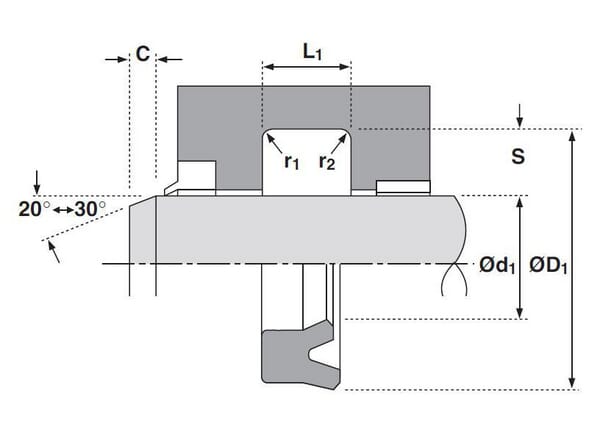

| Ød1Inside diameter | 90 mm |
| ØD1Outside diameter | 100 mm |

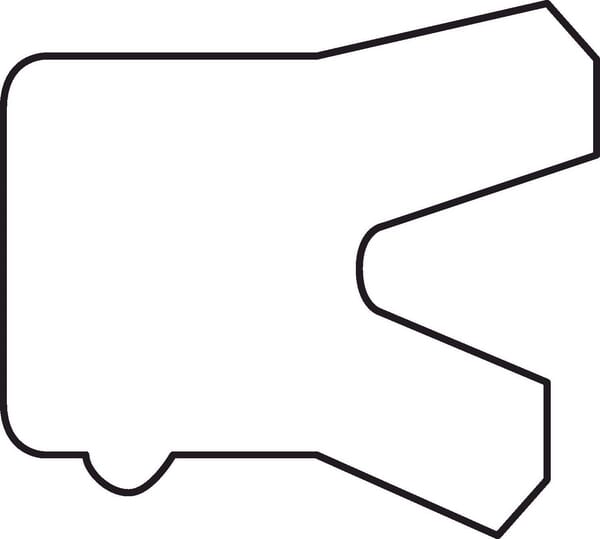

| Product details | Good fit and seal, Type 605 and 610 have a perfect and stable seal due to additional lip at the top of the cuff, Types 605 and 663 have an asymmetrical profile (the inner lip is shorter than the outer), These types (605 and 663) are therefore only suitable for use as piston rod seals, Type 601 and 610 have a symmetrical profile (both inner and outer sealing lips are the same height), These types (601 and 610) are therefore only suitable for use as piston rod seals, Double-acting cylinders, Single-acting cylinders |
| Pros | Very flexible, Very wear resistant, Low friction, Easy installation |
| SGroove width | 13 mm |
| Type | Rod seal, Piston seal |
| Type code | 605 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 18 g |
| Dimensions | 112 × 112 × 11 mm |
| Dangerous goods | No |
You might also like

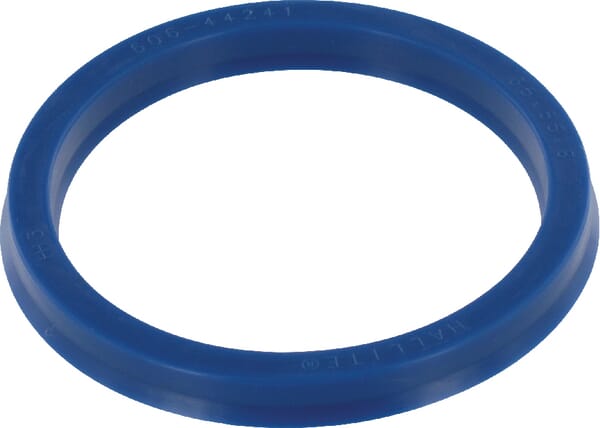

BPA000404805
Hallite Piston seal 65x55x7.3mm ZA655573UN
£6.58 excl.
£7.90 incl.
In stock
Expected to ship on Friday 18 September

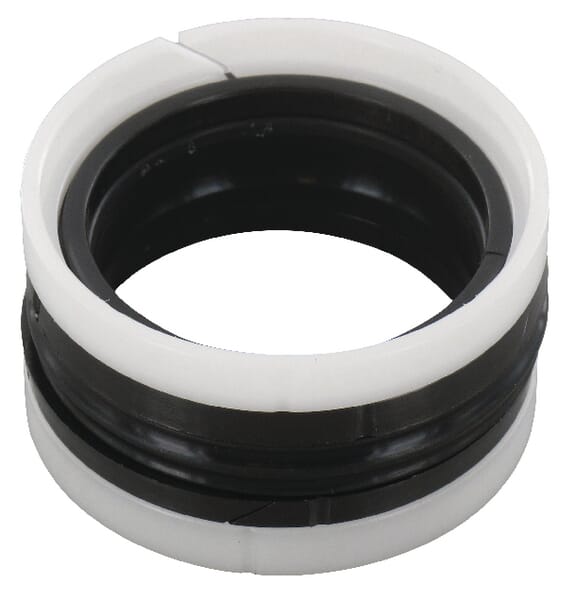

BPA000404783
Hallite Piston seal 50x38x20.5mm ZA5038205DBM
£7.85 excl.
£9.42 incl.
In stock
Expected to ship on Friday 18 September
BPA000232613
Hallite Rod wiper ASU 35x43x4/5/7mm ASU3543457T
£1.71 excl.
£2.05 incl.
In stock
Expected to ship on Friday 18 September

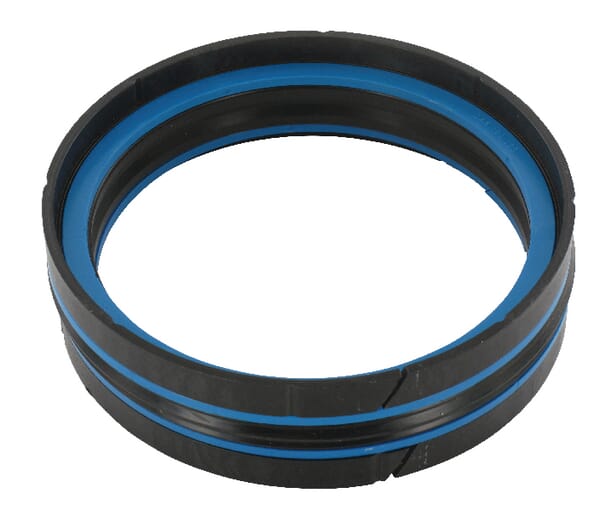

BPA000404738
Hallite Piston seal 160x135x25.4mm ZA160135254DBM
£25.89 excl.
£31.07 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000232485

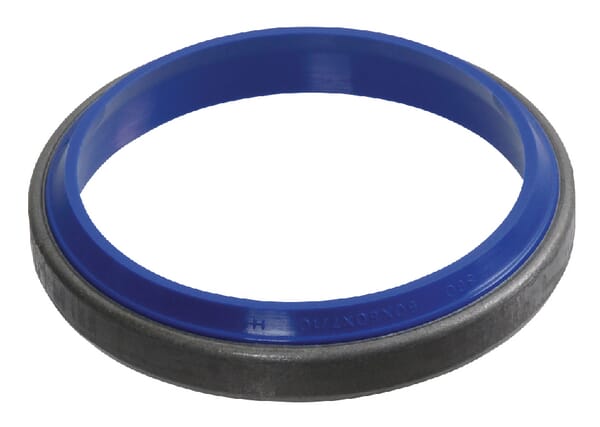

Hallite Rod wiper ASM 32x45x7/10mm ASM3245710
£4.36 excl.
£5.23 incl.
In stock
Expected to ship on Friday 18 September
BPA000354422

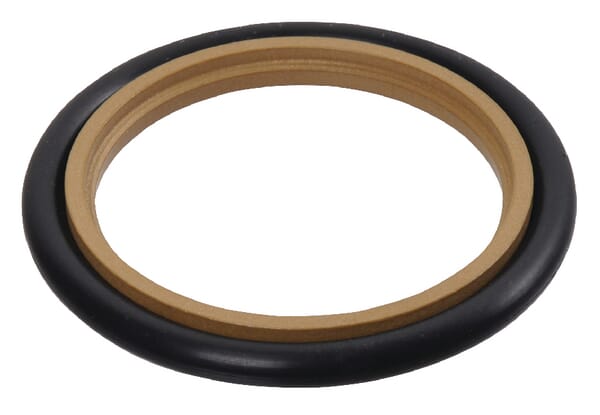

Hallite Rod seal 46.7x36x4.2mm SAS3646742
£7.66 excl.
£9.19 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000246131

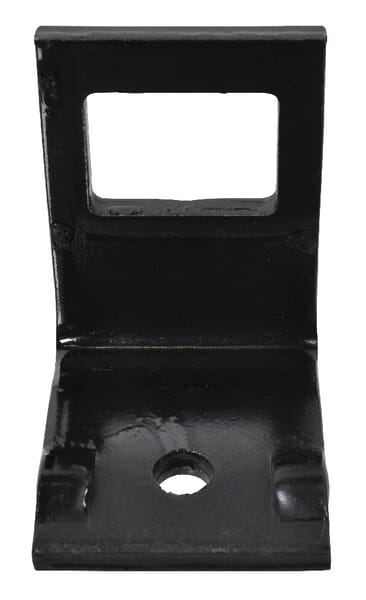

Non Original Tine clamp 45x10/12mm for frame 50x50mm CP337
£4.79 excl.
£5.75 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000369916
Knipex Crimping pliers f Two Handed Operation TA975234
£126.40 excl.
£151.68 incl.
In stock
Expected to ship on Friday 18 September
BPA000002453
Kramp Sealing tape 320x220x330 mm 0006784681KR
£42.48 excl.
£50.98 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000269343

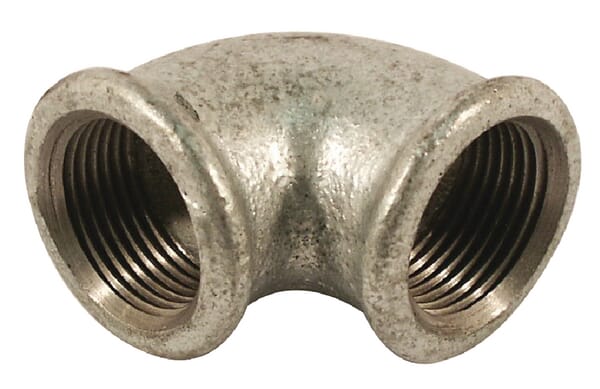

Kramp Elbow 90° galv. f/f 2 1/2" FG90212
