£22.91
excl. VAT
£27.50 incl. VAT
£27.50
incl. VAT
£22.91 excl. VAT
In stock
Expected to ship on Thursday 17 September
Product details

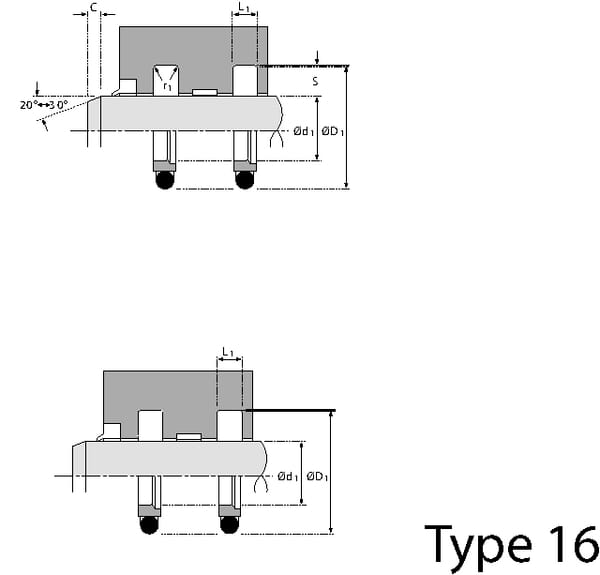

| d1Inside diameter | 90 mm |
|---|---|
| D1Outside diameter | 105.1 mm |
| Groove width | 6.3 mm |
| Includes | PTFE/bronze seal, O-ring in NBR |
| Long description | The SAS type 16 is a single-acting, O-ring energized rod seal designed for low friction and reliable performance. Made from high-quality materials combined with an elastomer energizer, it offers excellent wear resistance, extrusion resistance, and compatibility with a wide range of temperatures and fluids. |
| Material | Bronze, Nitrile rubber [NBR], Teflon (PTFE) |
| Max. sliding speed | 15 m/s |
| Max. working pressure | 400 BAR |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |
| Product details | 2-piece single-acting rod seal, Seal ring: PTFE/bronze compound, Pre-tensioned O-Ring: NBR, 70 shore, For heavily loaded high-pressure cylinders, Low break-away force, Design elminates occurrence of stick-slip, Excellent dynamic and static sealing properties, Long wear and high extrusion resistance, Able to absorb shock loads created from pressure spikes, Good resistance to high temperatures, Good chemical resistance |
| Type | Rod seal, Piston seal |
| Type code | 16 |
| Unit | Each |
| Width | 6.3 mm |
Logistics
| EAN | 8719607048484 |
|---|---|
| Unit of measure | EA |
| Weight | 28 g |
| Dimensions | 114 × 111 × 10 mm |
| Dangerous goods | No |
You might also like

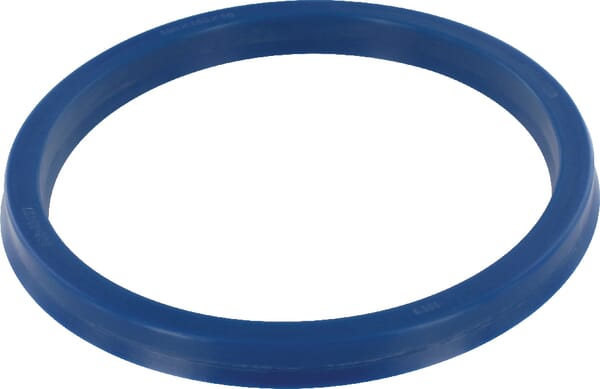

BPA000404739
Hallite Piston seal 160x140x14.5mm ZA160140145UN
£20.78 excl.
£24.94 incl.
In stock
Expected to ship on Thursday 17 September

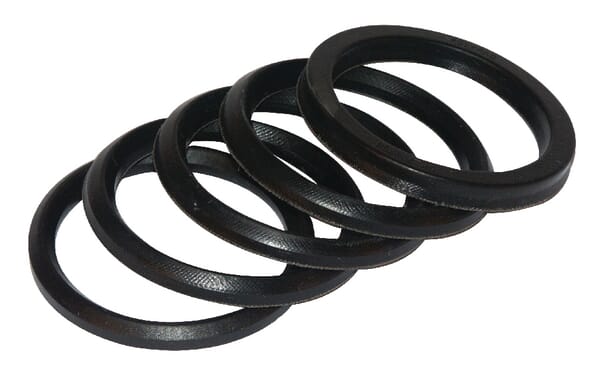

BPA000241671
Hallite Vee-pack set 30x45x22.5 CH3045225
£29.68 excl.
£35.62 incl.
Backorder available
Usually ships within 3–8 weeks

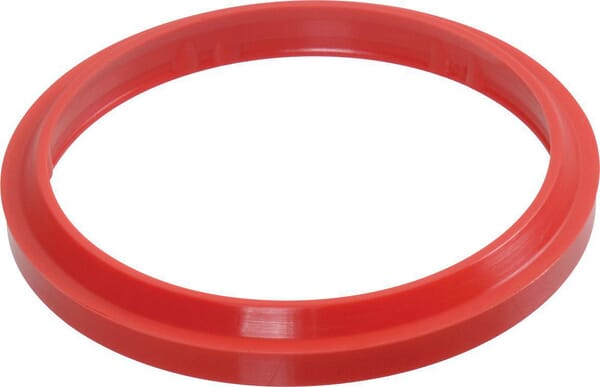

BPA000232607
Hallite Rod wiper ASU 30x38x5/8mm ASU30385T38
£4.53 excl.
£5.44 incl.
In stock
Expected to ship on Thursday 17 September

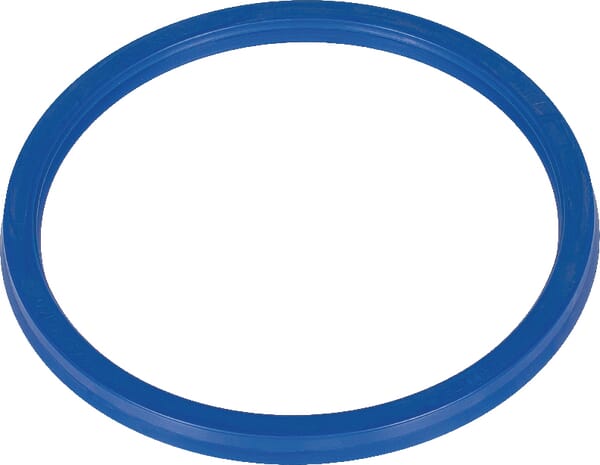

BPA000353511
Hallite Piston rod seal 135x120x9mm SA1201359UN
£17.07 excl.
£20.48 incl.
In stock
Expected to ship on Thursday 17 September
BPA000353839
Hallite Rod seal 88.9x76.2x9.5mm SA762889952UN
£6.65 excl.
£7.98 incl.
In stock
Expected to ship on Thursday 17 September

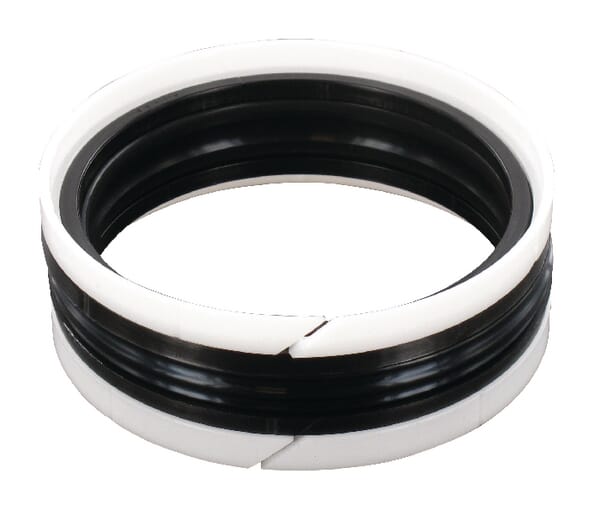

BPA000404834
