£27.30
excl. VAT
£32.76 incl. VAT
£32.76
incl. VAT
£27.30 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| d1Inside diameter | 110 mm |
|---|---|
| D1Outside diameter | 125.1 mm |
| Groove width | 6.3 mm |
| Includes | PTFE/bronze seal, O-ring in NBR |
| Long description | The SAS type 16 is a single-acting, O-ring energized rod seal designed for low friction and reliable performance. Made from high-quality materials combined with an elastomer energizer, it offers excellent wear resistance, extrusion resistance, and compatibility with a wide range of temperatures and fluids. |
| Material | Bronze, Nitrile rubber [NBR], Teflon (PTFE) |
| Max. sliding speed | 15 m/s |
| Max. working pressure | 400 BAR |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |
| Product details | 2-piece single-acting rod seal, Seal ring: PTFE/bronze compound, Pre-tensioned O-Ring: NBR, 70 shore, For heavily loaded high-pressure cylinders, Low break-away force, Design elminates occurrence of stick-slip, Excellent dynamic and static sealing properties, Long wear and high extrusion resistance, Able to absorb shock loads created from pressure spikes, Good resistance to high temperatures, Good chemical resistance |
| Type | Rod seal, Piston seal |

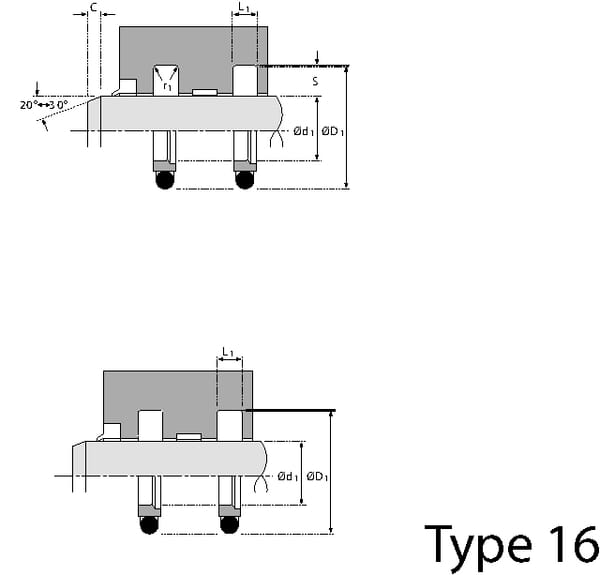

| Type code | 16 |
| Unit | Each |
| Width | 6.3 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 34 g |
| Dimensions | 134 × 129 × 12 mm |
| Dangerous goods | No |
You might also like
BPA000286939

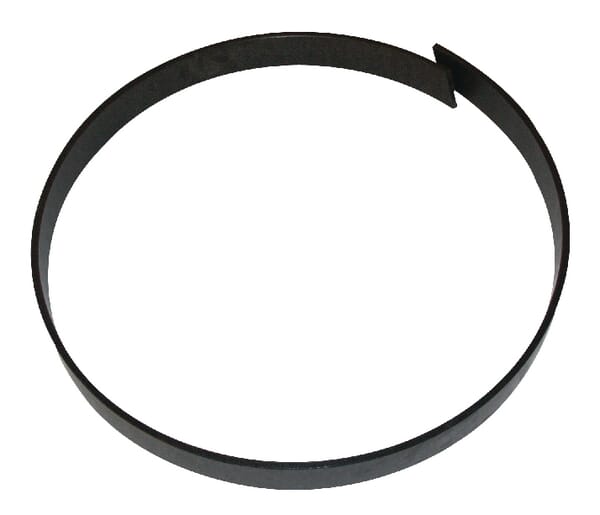

Hallite Guide ring 40x34x10 - GRE F GRE403410F
£4.95 excl.
£5.94 incl.
In stock
Expected to ship on Monday 21 September
BPA000232603

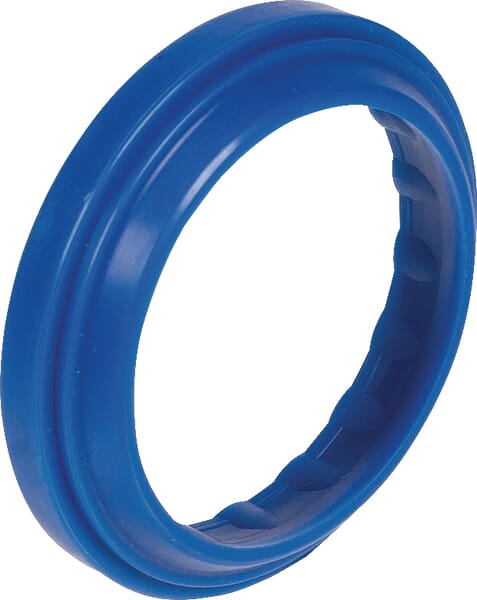

Hallite Rod wiper ASU 28x36x4/5/7mm ASU2836457T
£1.88 excl.
£2.26 incl.
In stock
Expected to ship on Friday 18 September
BPA000351214
Hallite Rod seal 40x30x7.3mm SA304073UN
£2.91 excl.
£3.49 incl.
In stock
Expected to ship on Friday 18 September
BPA000286952

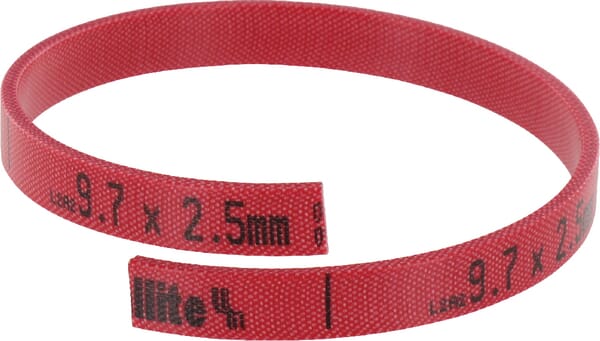

Hallite Guide ring 70x65x9,7 - GRE GRE706597
