£1.88
excl. VAT
£2.26 incl. VAT
£2.26
incl. VAT
£1.88 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| d1Inner diameter | 28 mm |
|---|---|
| D1Outer diameter | 36 mm |
| D2Collar diameter | 34 mm |
| Groove width | 4 mm |

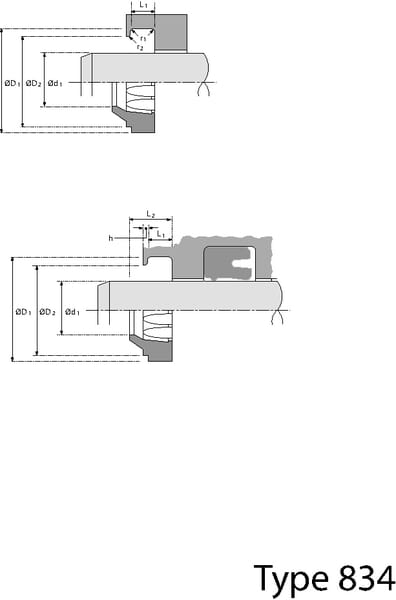

| Long description | The Hallite 834 is a single-lip, snap-in rod wiper designed to fit standard housings, including many dimensions specified in ISO 6195 Type E. Its precisely engineered wiping lip maintains consistent contact with the rod surface, effectively removing mud, dirt, and other common contaminants. Moulded stabilizing ribs on the inner diameter improve the wiper’s grip in the housing and help prevent blow-out caused by pressure build-up between the wiper and the main rod seal. |
| Material wiper seal | Polyurethane |
| Max. sliding speed | 4 m/s |
| Max. working temperature | 110 °C |
| Min. working temperature | -45 °C |
| Product details | Material : Hythane® 181 polyurethane, Designed with an additional sealing lip and ribs, Easy “snap-in” installation in closed chambers, Secure fit with reliable sealing, Highly flexible, Exceptional wear resistance, Effective dirt removal, Prevents pressure build-up behind the scraper |
| Total width | 7 mm |
| Type | Rod wiper |
| Type code | ASU-T (834) |
| Unit | Each |
Logistics
| EAN | 8719607088077 |
|---|---|
| Unit of measure | EA |
| Weight | 2 g |
| Dimensions | 32 × 32 × 3 mm |
| Dangerous goods | No |
You might also like

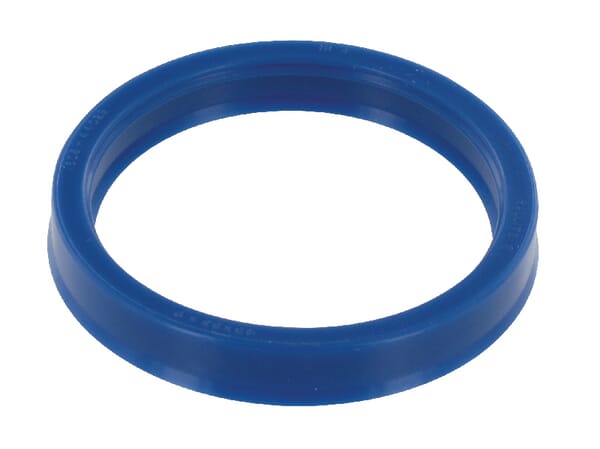

BPA000353688
Hallite Rod seal 48x40x8.2mm SA404882UN
£2.52 excl.
£3.02 incl.
In stock
Expected to ship on Tuesday 22 September

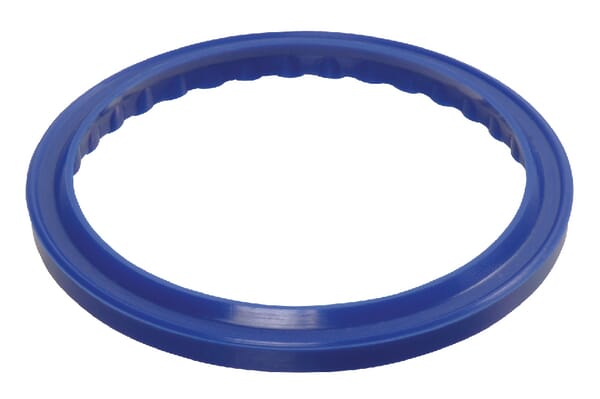

BPA000232618
Hallite Rod wiper ASU 36x44.6x5.3/7mm ASU3644653
£1.23 excl.
£1.48 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000404905
Hallite Piston seal 80x64.5x6.3mm ZAS8064563
£13.94 excl.
£16.73 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000351132
Hallite Rod seal 30x22x5.7mm SA223057UN
£1.62 excl.
£1.94 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000353553
Hallite Rod seal 46x36x7.3mm SA364673UN
£2.36 excl.
£2.83 incl.
In stock
Expected to ship on Tuesday 22 September

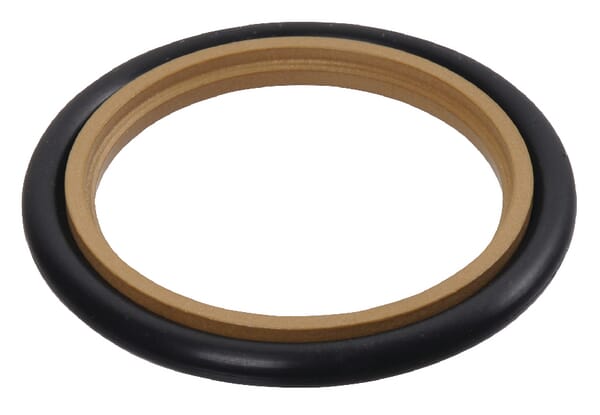

BPA000354425
Hallite Rod seal 55.1x40x6.3mm SAS4055163V
£26.98 excl.
£32.38 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
Free shipping

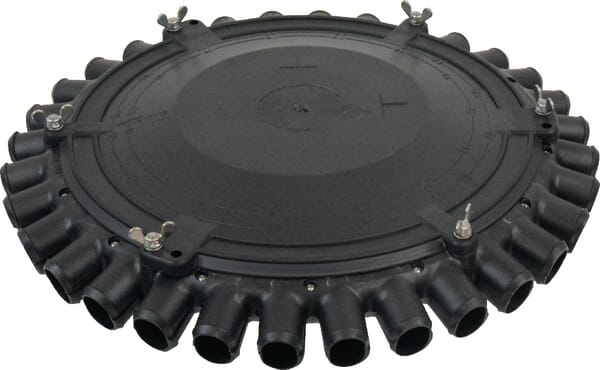

BPA000220357
