£35.83
excl. VAT
£43.00 incl. VAT
£43.00
incl. VAT
£35.83 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| d1Inside diameter | 140 mm |
|---|---|
| D1Outside diameter | 155.1 mm |
| Groove width | 6.3 mm |
| Includes | PTFE/bronze seal, O-ring in NBR |

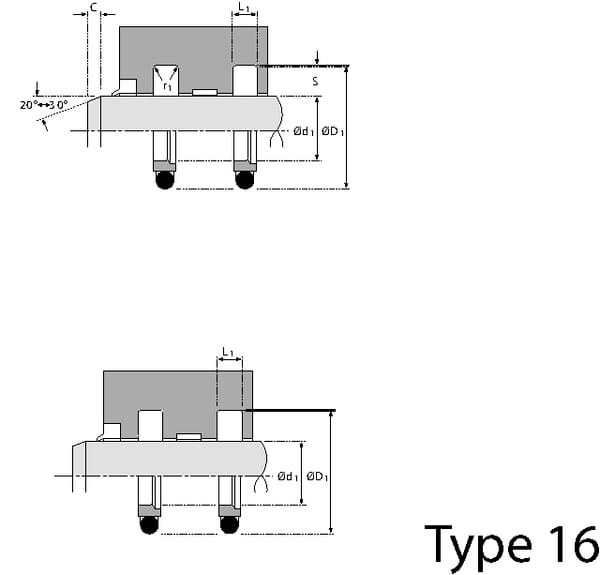

| Long description | The SAS type 16 is a single-acting, O-ring energized rod seal designed for low friction and reliable performance. Made from high-quality materials combined with an elastomer energizer, it offers excellent wear resistance, extrusion resistance, and compatibility with a wide range of temperatures and fluids. |
| Material | Bronze, Nitrile rubber [NBR], Teflon (PTFE) |
| Max. sliding speed | 15 m/s |
| Max. working pressure | 400 BAR |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |
| Product details | 2-piece single-acting rod seal, Seal ring: PTFE/bronze compound, Pre-tensioned O-Ring: NBR, 70 shore, For heavily loaded high-pressure cylinders, Low break-away force, Design elminates occurrence of stick-slip, Excellent dynamic and static sealing properties, Long wear and high extrusion resistance, Able to absorb shock loads created from pressure spikes, Good resistance to high temperatures, Good chemical resistance |
| Type | Rod seal, Piston seal |
| Type code | 16 |
| Unit | Each |
| Width | 6.3 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 500 g |
| Dimensions | 220 × 160 × 6 mm |
| Dangerous goods | No |
You might also like
BPA000234599
Hallite Backup for 63.17 x 2.62 e=1.14 BU6317262
£2.41 excl.
£2.89 incl.
In stock
Expected to ship on Monday 21 September
BPA000354438
Hallite Rod seal 85.1x70x6.3mm SAS7085163V
£43.22 excl.
£51.86 incl.
In stock
Expected to ship on Monday 21 September
BPA000232601

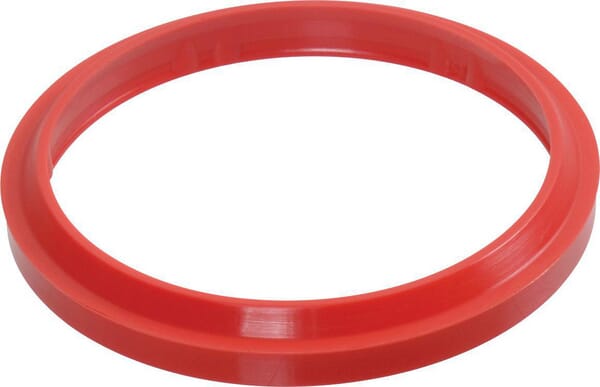

Hallite Rod wiper ASU 25x33x5/8mm ASU25335T38
£4.52 excl.
£5.42 incl.
In stock
Expected to ship on Monday 21 September
BPA000351158
Hallite Rod seal 33x25x6.8mm SA253368UN
£1.63 excl.
£1.96 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000351215
Hallite Rod seal 40x30x7mm SA30407UN
£1.74 excl.
£2.09 incl.
In stock
Expected to ship on Monday 21 September
BPA000234603

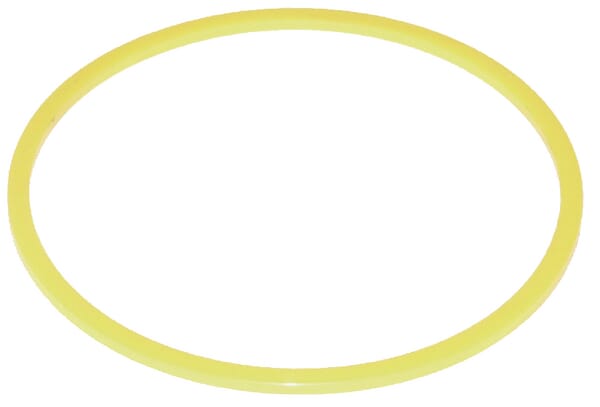

Hallite Backup for 69.52x2.62 e=1 BU6952262
