£7.98
excl. VAT
£9.58 incl. VAT
£9.58
incl. VAT
£7.98 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| d1Inside diameter | 40 mm |
|---|---|
| D1Outside diameter | 55.1 mm |
| Groove width | 6.3 mm |
| Includes | PTFE/bronze seal, O-ring in NBR |

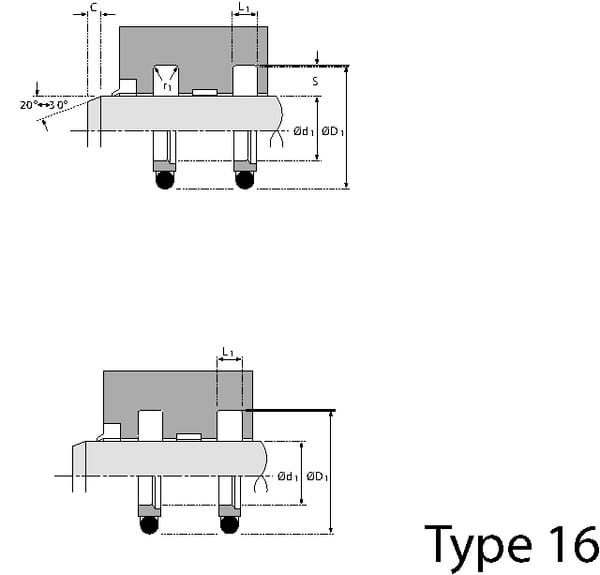

| Long description | The SAS type 16 is a single-acting, O-ring energized rod seal designed for low friction and reliable performance. Made from high-quality materials combined with an elastomer energizer, it offers excellent wear resistance, extrusion resistance, and compatibility with a wide range of temperatures and fluids. |
| Material | Bronze, Nitrile rubber [NBR], Teflon (PTFE) |
| Max. sliding speed | 15 m/s |
| Max. working pressure | 400 BAR |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |
| Product details | 2-piece single-acting rod seal, Seal ring: PTFE/bronze compound, Pre-tensioned O-Ring: NBR, 70 shore, For heavily loaded high-pressure cylinders, Low break-away force, Design elminates occurrence of stick-slip, Excellent dynamic and static sealing properties, Long wear and high extrusion resistance, Able to absorb shock loads created from pressure spikes, Good resistance to high temperatures, Good chemical resistance |
| Type | Rod seal, Piston seal |
| Type code | 16 |
| Unit | Each |
| Width | 6.3 mm |
Logistics
| EAN | 8719607046725 |
|---|---|
| Unit of measure | EA |
| Weight | 14 g |
| Dimensions | 95 × 65 × 7 mm |
| Dangerous goods | No |
You might also like
BPA000354425
Hallite Rod seal 55.1x40x6.3mm SAS4055163V
£26.98 excl.
£32.38 incl.
In stock
Expected to ship on Monday 21 September
BPA000232595

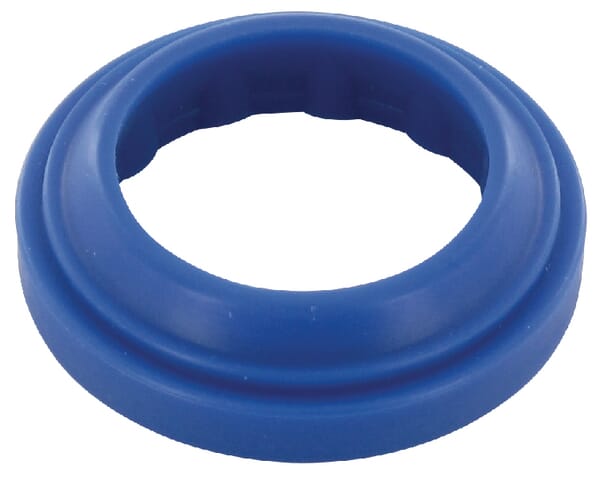

Hallite Rod wiper ASU 18x26x4/5/7mm ASU1826457T
£1.59 excl.
£1.91 incl.
In stock
Expected to ship on Monday 21 September
BPA000404765

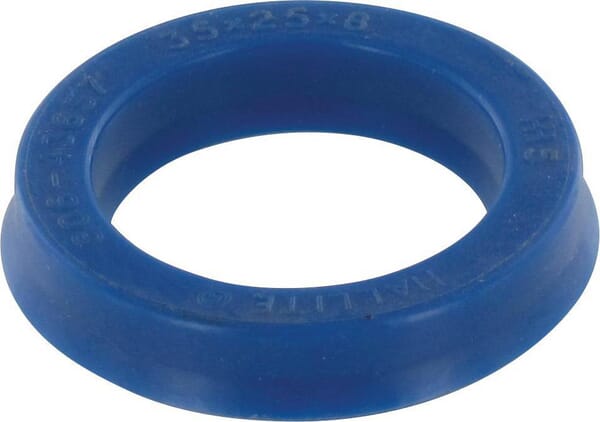

Hallite Piston seal 35x25x7.3mm ZA352573UN
£3.61 excl.
£4.33 incl.
In stock
Expected to ship on Monday 21 September
BPA000286956

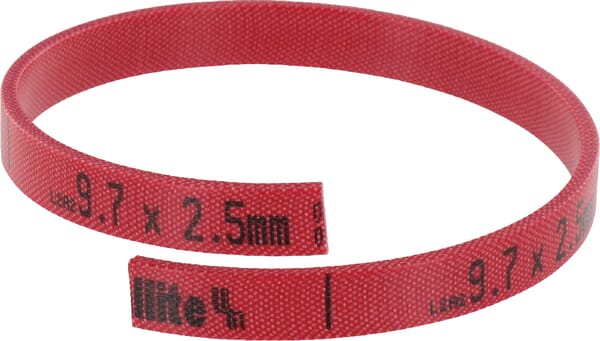

Hallite Guide ring 80x75x9,7 - GRE EPW GRE807597
£5.84 excl.
£7.01 incl.
In stock
Expected to ship on Monday 21 September
BPA000286969

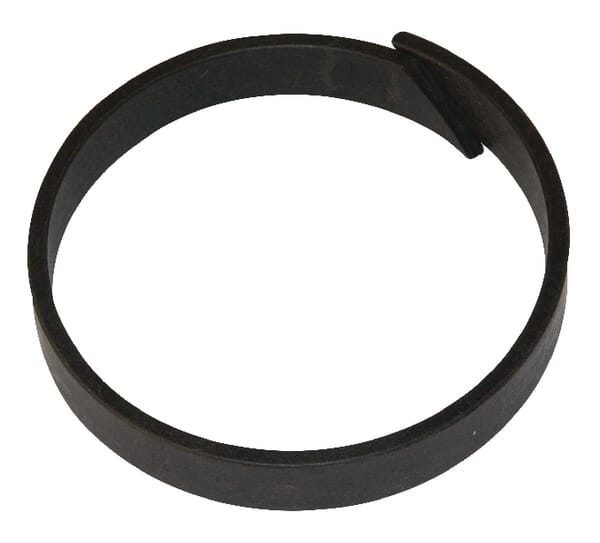

Hallite Guide ring 26x20x10 - IPWR GRI202610F
