£26.98
excl. VAT
£32.38 incl. VAT
£32.38
incl. VAT
£26.98 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| d1Inside diameter | 40 mm |
|---|---|
| D1Outside diameter | 55.1 mm |
| Groove width | 6.3 mm |
| Includes | PTFE/bronze seal, O-ring in NBR |
| Long description | The SAS type 16 is a single-acting, O-ring energized rod seal designed for low friction and reliable performance. Made from high-quality materials combined with an elastomer energizer, it offers excellent wear resistance, extrusion resistance, and compatibility with a wide range of temperatures and fluids. |
| Material | Bronze, FKM, Teflon (PTFE), Rubber, Viton |
| Max. sliding speed | 15 m/s |
| Max. working pressure | 400 BAR |
| Max. working temperature | 200 °C |
| Min. working temperature | -10 °C |
| Product details | 2-piece single-acting rod seal, Seal ring: PTFE/bronze compound, Pre-tensioned O-Ring: NBR, 70 shore, For heavily loaded high-pressure cylinders, Low break-away force, Design elminates occurrence of stick-slip, Excellent dynamic and static sealing properties, Long wear and high extrusion resistance, Able to absorb shock loads created from pressure spikes, Good resistance to high temperatures, Good chemical resistance |
| Type | Rod seal, Piston seal |
| Type code | 16 |
| Unit | Each |
| Width | 6.3 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 16 g |
| Dimensions | 100 × 75 × 10 mm |
| Dangerous goods | No |
You might also like
BPA000354424
Hallite Rod seal 55.1x40x6.3mm SAS4055163
£7.98 excl.
£9.58 incl.
In stock
Expected to ship on Friday 18 September
BPA000354442
Hallite Rod seal 100.1x85x6.3mm SAS85100163
£23.57 excl.
£28.28 incl.
In stock
Expected to ship on Friday 18 September
BPA000354433

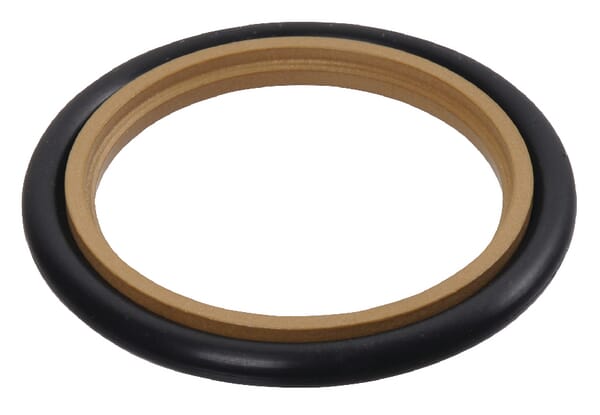

Hallite Rod seal 71.1x56x6.3mm SAS5671163
£15.45 excl.
£18.54 incl.
In stock
Expected to ship on Friday 18 September
BPA000404759

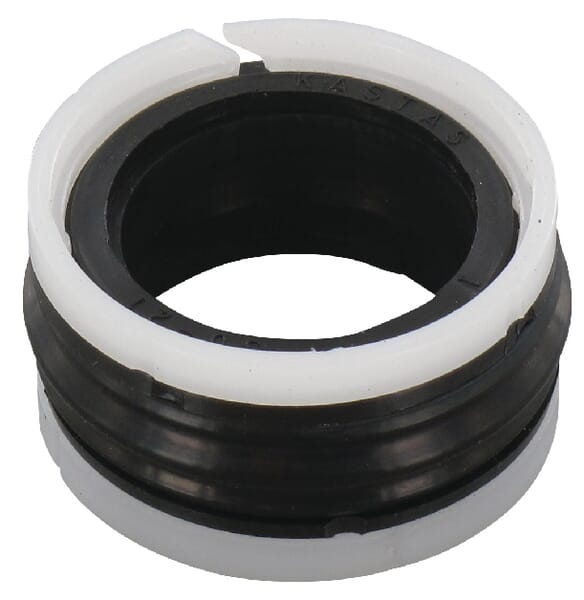

Hallite Piston seal 30x21x13.5mm ZA3021135DBM
£3.78 excl.
£4.54 incl.
In stock
Expected to ship on Friday 18 September
BPA000286954

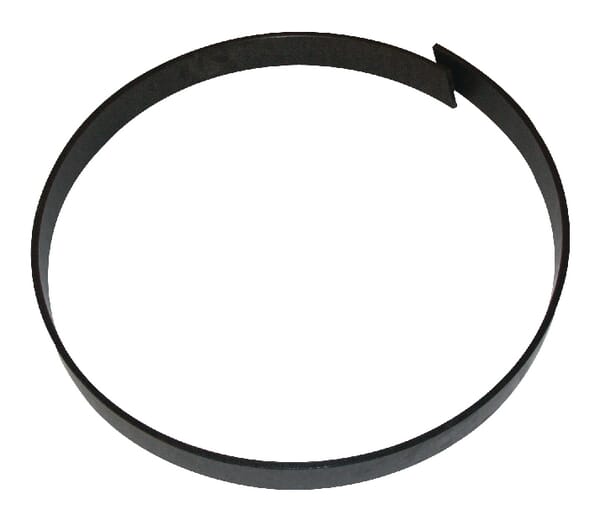

Hallite Guide ring 80x74x12,8 - GRE F GRE8074128F
£8.19 excl.
£9.83 incl.
In stock
Expected to ship on Monday 21 September
BPA000238698

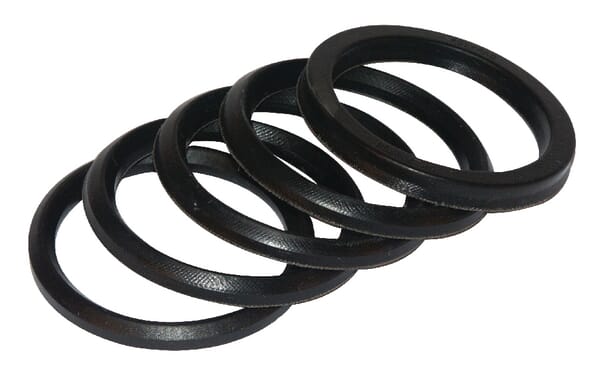

Hallite Vee-pack set 50x70x30 CH507030
