£17.75
excl. VAT
£21.30 incl. VAT
£21.30
incl. VAT
£17.75 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| d1Inner diameter | 55 mm |
|---|---|
| D1Outer diameter | 61.8 mm |
| Groove width | 5 mm |
| Long description | The scrapers in the 335 series are double acting and fitted with an O-ring. The two lips work together to scrape dirt off the rod while simultaneously holding back the remaining oil on the rod and pumping it back into the cylinder. The O-ring provides the necessary force to press the scraper against the sliding surface and maintain pressure. |
| Material wiper seal | Teflon (PTFE), Nitrile rubber [NBR] |
| Max. sliding speed | 5 m/s |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |
| Product details | Low friction forces, High speeds up to 15m/s, Temperature range : -45°C to +200°C, Not suitable for strongly contaminated environments, Bronze alloy and carbon fibres, Suitable for short strokes and high frequencies, Double-acting, both dirt and oil film are removed |
| Total width | 5 mm |
| Type | Rod wiper |
| Type code | 335 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 4 g |
| Dimensions | 100 × 70 × 10 mm |
| Dangerous goods | No |
You might also like
BPA000241684

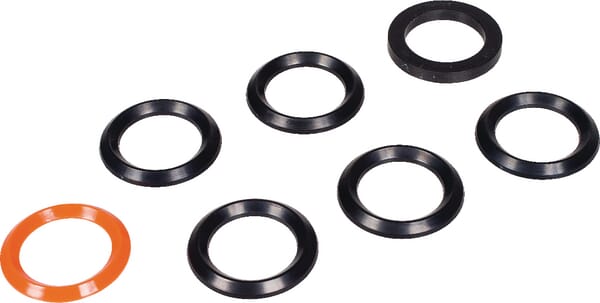

Hallite Vee-pack set 45x65x27.5 CH4565275
£44.67 excl.
£53.60 incl.
In stock
Expected to ship on Friday 18 September
BPA000286977
Hallite Guide ring 41x36x5,6 - GRI GRI364156
£4.83 excl.
£5.80 incl.
In stock
Expected to ship on Monday 21 September
BPA000232484

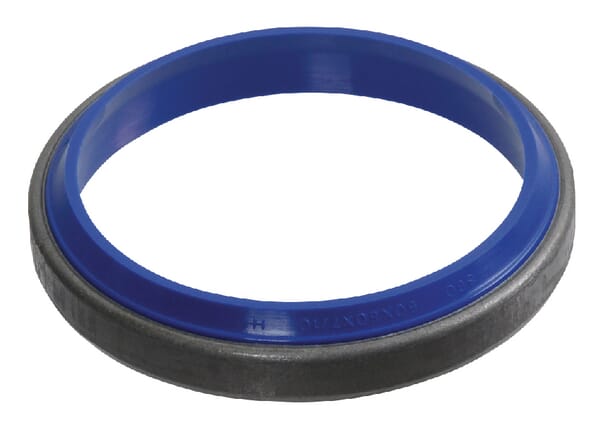

Hallite Rod wiper ASM 32x42x7/10mm ASM3242710
£4.96 excl.
£5.95 incl.
In stock
Expected to ship on Friday 18 September
BPA000404861
Hallite Piston seal 140x119x8.1mm ZAS14011981T754
£12.72 excl.
£15.26 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000232643

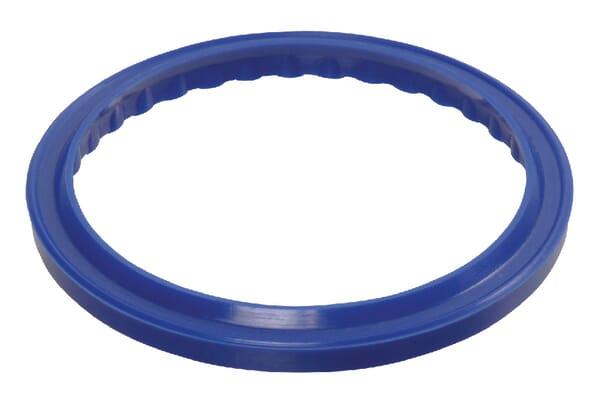

Hallite Rod wiper ASU 60x68.6x5,3/7mm ASU6068653
£2.32 excl.
£2.78 incl.
In stock
Expected to ship on Friday 18 September
BPA000232610

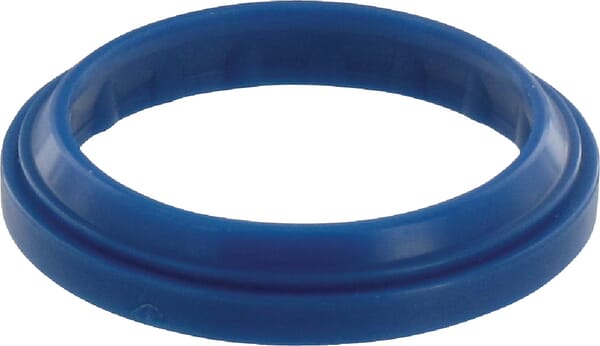

Hallite Rod wiper ASU 32x40x4/5/7mm ASU3240457T
