£1.47
excl. VAT
£1.76 incl. VAT
£1.76
incl. VAT
£1.47 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| d1Inner diameter | 25 mm |
|---|---|
| D1Outer diameter | 33 mm |
| D2Collar diameter | 31 mm |
| Groove width | 4 mm |

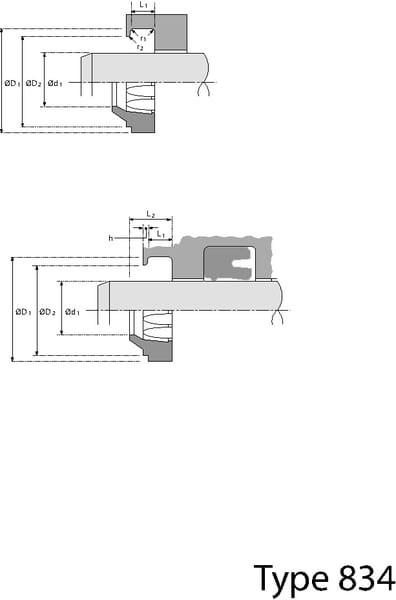

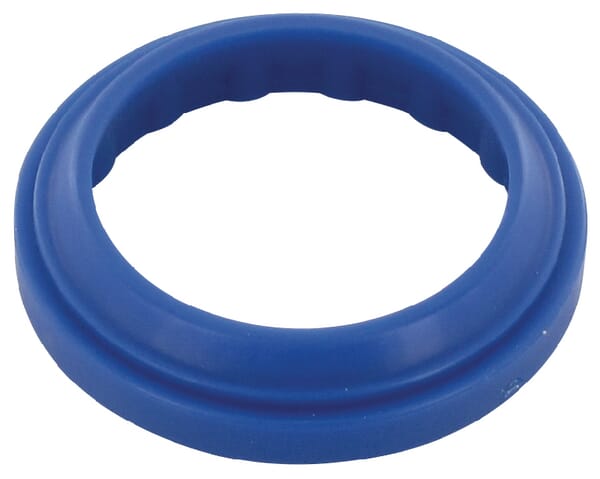

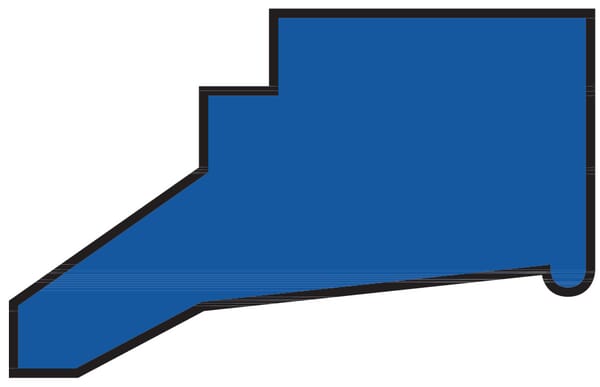

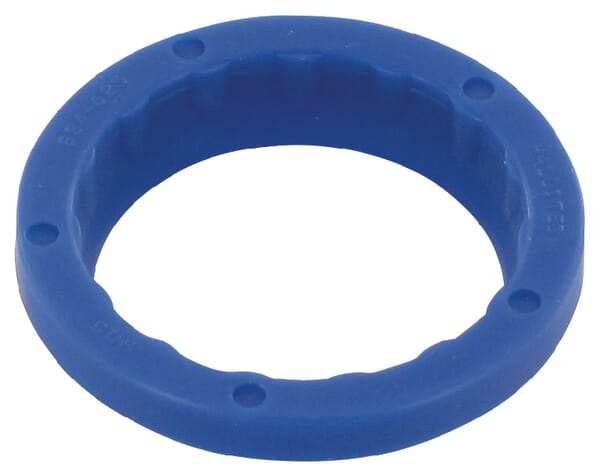

| Long description | The Hallite 834 is a single-lip, snap-in rod wiper designed to fit standard housings, including many dimensions specified in ISO 6195 Type E. Its precisely engineered wiping lip maintains consistent contact with the rod surface, effectively removing mud, dirt, and other common contaminants. Moulded stabilizing ribs on the inner diameter improve the wiper’s grip in the housing and help prevent blow-out caused by pressure build-up between the wiper and the main rod seal. |
| Material wiper seal | Polyurethane |
| Max. sliding speed | 4 m/s |
| Max. working temperature | 110 °C |
| Min. working temperature | -45 °C |
| Product details | Material : Hythane® 181 polyurethane, Designed with an additional sealing lip and ribs, Easy “snap-in” installation in closed chambers, Secure fit with reliable sealing, Highly flexible, Exceptional wear resistance, Effective dirt removal, Prevents pressure build-up behind the scraper |
| Total width | 7 mm |
| Type | Rod wiper |
| Type code | ASU-T (834) |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2 g |
| Dimensions | 33 × 25 × 4 mm |
| Dangerous goods | No |
You might also like
BPA000351210
Hallite Rod seal 38x30x8.2mm SA303882UN
£2.44 excl.
£2.93 incl.
In stock
Expected to ship on Monday 21 September
BPA000232513

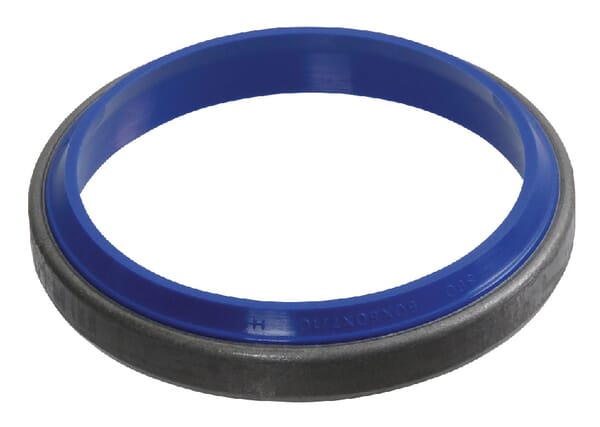

Hallite Rod wiper ASM 80x90x7/10mm ASM8090710
£10.45 excl.
£12.54 incl.
In stock
Expected to ship on Monday 21 September
BPA000354441

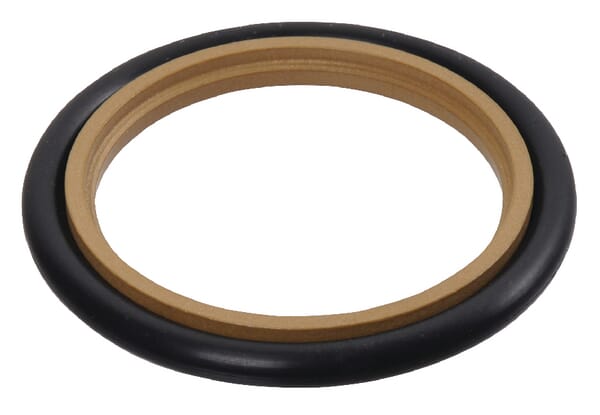

Hallite Rod seal 95.1x80x6.3mm SAS8095163V
£49.62 excl.
£59.54 incl.
In stock
Expected to ship on Monday 21 September
BPA000353735
Hallite Rod seal 58x50x8.2mm SA505882UN
£4.57 excl.
£5.48 incl.
In stock
Expected to ship on Monday 21 September
BPA000351031
Hallite Rod seal 28x18x7.7mm SA182877UN
£2.96 excl.
£3.55 incl.
In stock
Expected to ship on Monday 21 September
BPA000286921

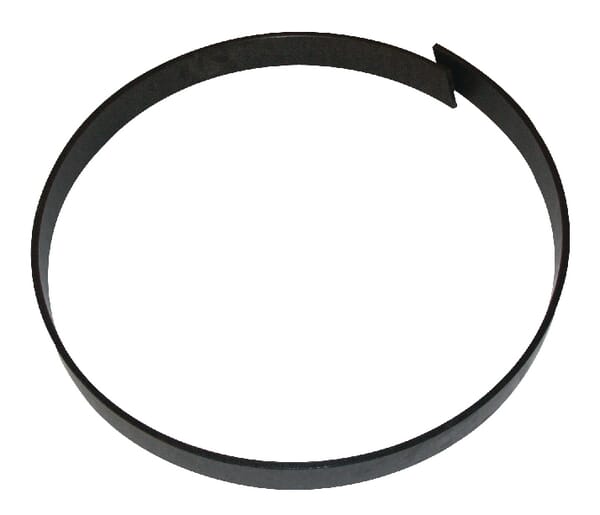

Hallite Guide ring 100x94x12,8 - GRE F GRE10094128F
