£1.74
excl. VAT
£2.09 incl. VAT
£2.09
incl. VAT
£1.74 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details

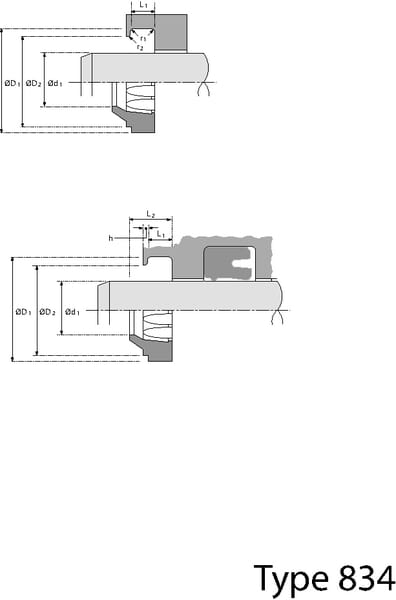

| d1Inner diameter | 36 mm |
|---|---|
| D1Outer diameter | 44 mm |
| D2Collar diameter | 42 mm |
| Groove width | 4 mm |

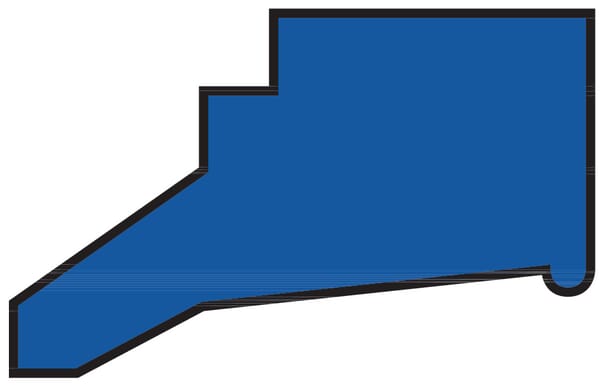

| Long description | The Hallite 834 is a single-lip, snap-in rod wiper designed to fit standard housings, including many dimensions specified in ISO 6195 Type E. Its precisely engineered wiping lip maintains consistent contact with the rod surface, effectively removing mud, dirt, and other common contaminants. Moulded stabilizing ribs on the inner diameter improve the wiper’s grip in the housing and help prevent blow-out caused by pressure build-up between the wiper and the main rod seal. |
| Material wiper seal | Polyurethane |
| Max. sliding speed | 4 m/s |
| Max. working temperature | 110 °C |
| Min. working temperature | -45 °C |
| Product details | Material : Hythane® 181 polyurethane, Designed with an additional sealing lip and ribs, Easy “snap-in” installation in closed chambers, Secure fit with reliable sealing, Highly flexible, Exceptional wear resistance, Effective dirt removal, Prevents pressure build-up behind the scraper |
| Total width | 7 mm |
| Type | Rod wiper |
| Type code | ASU-T (834) |
| Unit | Each |
Logistics
| EAN | 8719607064668 |
|---|---|
| Unit of measure | EA |
| Weight | 3 g |
| Dimensions | 45 × 45 × 7 mm |
| Dangerous goods | No |
You might also like
BPA000234598

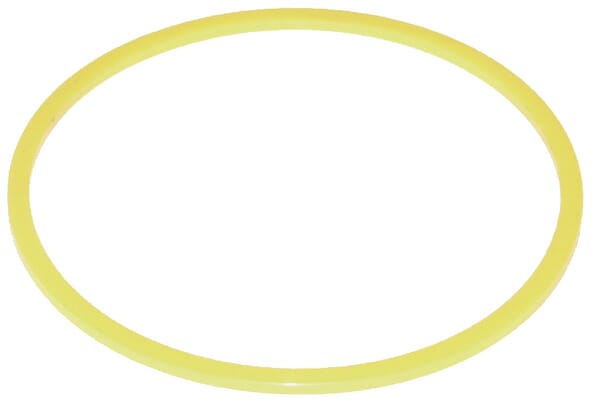

Hallite Backup for 63.09 x 3.53 e=1.02 BU6309353
£2.72 excl.
£3.26 incl.
In stock
Expected to ship on Friday 18 September
BPA000351481
Hallite Rod seal 48x35x10mm SA354810UN
£3.99 excl.
£4.79 incl.
In stock
Expected to ship on Friday 18 September
BPA000232496
Hallite Rod wiper ASM 45x55x7/10mm ASM4555710
£4.99 excl.
£5.99 incl.
In stock
Expected to ship on Friday 18 September
BPA000353761
Hallite Rod seal 65x55x11.8mm SA5565118UN
£4.52 excl.
£5.42 incl.
In stock
Expected to ship on Friday 18 September
BPA000353864
Hallite Rod seal 100x90x11.8mm SA90100118UN
£8.05 excl.
£9.66 incl.
In stock
Expected to ship on Friday 18 September
BPA000232653

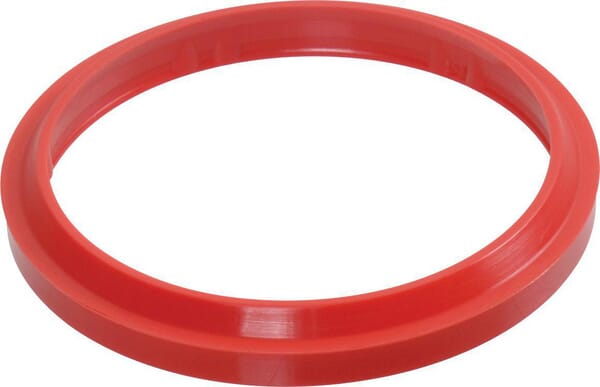

Hallite Rod wiper ASU 70x80.6x5.3/7mm ASU7080653T38
