£1.91
excl. VAT
£2.29 incl. VAT
£2.29
incl. VAT
£1.91 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

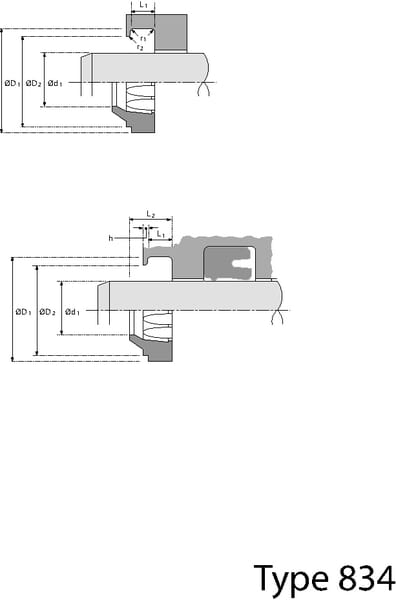

| d1Inner diameter | 40 mm |
|---|---|
| D1Outer diameter | 48 mm |
| D2Collar diameter | 46 mm |
| Groove width | 4 mm |

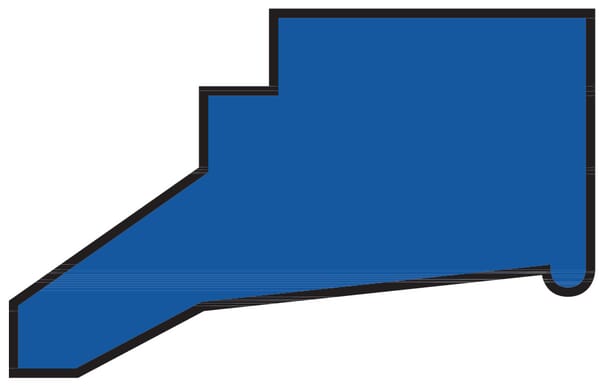

| Long description | The Hallite 834 is a single-lip, snap-in rod wiper designed to fit standard housings, including many dimensions specified in ISO 6195 Type E. Its precisely engineered wiping lip maintains consistent contact with the rod surface, effectively removing mud, dirt, and other common contaminants. Moulded stabilizing ribs on the inner diameter improve the wiper’s grip in the housing and help prevent blow-out caused by pressure build-up between the wiper and the main rod seal. |
| Material wiper seal | Polyurethane |
| Max. sliding speed | 4 m/s |
| Max. working temperature | 110 °C |
| Min. working temperature | -45 °C |
| Product details | Material : Hythane® 181 polyurethane, Designed with an additional sealing lip and ribs, Easy “snap-in” installation in closed chambers, Secure fit with reliable sealing, Highly flexible, Exceptional wear resistance, Effective dirt removal, Prevents pressure build-up behind the scraper |
| Total width | 7 mm |
| Type | Rod wiper |
| Type code | ASU-T (834) |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3 g |
| Dimensions | 49 × 49 × 6 mm |
| Dangerous goods | No |
You might also like
BPA000232585
Hallite Rod wiper ASU 110x122.2x7.1/12mm ASU110122271
£5.44 excl.
£6.53 incl.
In stock
Expected to ship on Friday 18 September
BPA000353742
Hallite Rod seal 65x50x9.5mm SA506595UN
£4.97 excl.
£5.96 incl.
In stock
Expected to ship on Friday 18 September
BPA000232621

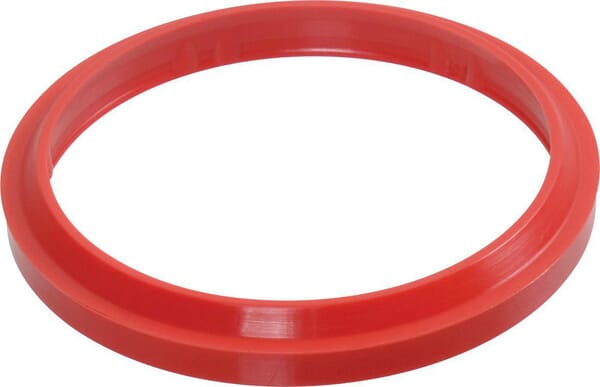

Hallite Rod wiper ASU 40x48x5/8mm ASU40485T38
£5.15 excl.
£6.18 incl.
In stock
Expected to ship on Friday 18 September
BPA000286928

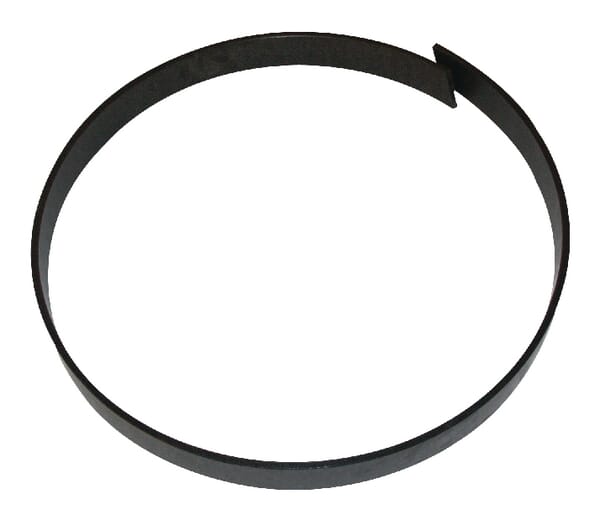

Hallite Guide ring 125x119x12,8 - GRE F GRE125119128F
