£17.84
excl. VAT
£21.41 incl. VAT
£21.41
incl. VAT
£17.84 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Colour outer sheath | Black |
|---|---|
| Core identification | Colour |
| Flame retardant according to IEC 60332-1-2 | Yes |
| Halogen free according to EN IEC 60754-2 | No |
| Long description | EMC Cable |
| Manufacturer Product ID | 22236 |
| Material outer sheath | PVC |
| Nominal cross section conductor | 4 mm² |
| Nominal voltage U | 1000 V |
| Nominal voltage U0 | 600 V |
| Number of cores | 4 |
| Outer diameter approx. | 13.6 mm |
| Packing type | n/a |
| Permitted cable outer temperature during assembling/handling | -5-70 °C |
| Protective conductor | Yes |
| Technical info | Approval certificates, Adapted to VDE 250, Application, Especially for frequency converter controlled AC drives. For fixed installation and occasional free flexing indoors in dry, damp and wet conditiones, as well as outdoor (separate black version) for low mechanical stress. Not suitable for the installation direct in ground and in water. Cores are normally identified by colours according to HD 308 S2., Design:, Conductor:, plain finely stranded copper, Class 5 according to VDE 0295 or IEC 60228, Protective Conductor:, plain finely stranded copper, Class 5 according to VDE 0295 or IEC 60228 - for cross sections > 16mm² the protective conductor is divided into 3 cores, Insulation:, halogen free special XLPE according to IEC 60502-4 max. core temperature: 90C°, Screen:, Multilayer screen, EMC - optimized regarding to radio frequency interference field strength and voltage according to EN 55011 or DIN VDE 0875, 1. Layer: Al - coated tape, 2. Layer: braid of tinned copper wires, Outer Sheath:, PVC Type YM 2 (polyviny chloride) according to VDE 0207 Part 5,, optional also available with halogen free outer sheath SHF1 (HM2) according to IEC 60092-353 (2XSLSTCH-J), Colour: grey (standard PVC), optional black or transparent, Core identification:, Colour: according to HD 308 S2 |
| Unit | Metre |
Logistics
| EAN | 4060892149795 |
|---|---|
| Unit of measure | MTR |
| Weight | 400 g |
| Dimensions | 1000 × 17 × 17 mm |
| Dangerous goods | No |
You might also like
BPA000261126
HELU Cable EMV-UV-2YSLCYK-J EMVUV2YSLCYKJ46
£24.98 excl.
£29.98 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000261123
HELU Cable EMV-UV-2YSLCYK-J EMVUV2YSLCYKJ415
£8.27 excl.
£9.92 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000261124
HELU Cable EMV-UV-2YSLCYK-J EMVUV2YSLCYKJ425
£11.29 excl.
£13.55 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000343432
HELU Cable PURÖ-JZ PUROOZ2075
£2.99 excl.
£3.59 incl.
In stock
Expected to ship on Tuesday 22 September

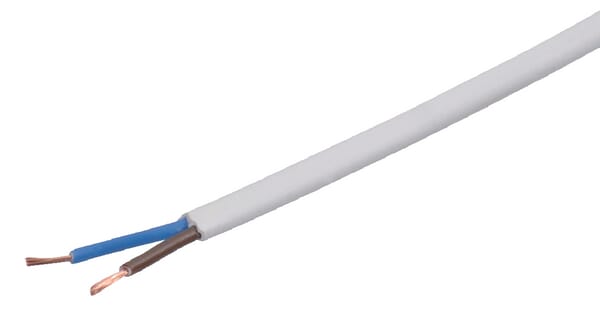

BPA000283511
