£8.27
excl. VAT
£9.92 incl. VAT
£9.92
incl. VAT
£8.27 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Colour outer sheath | Grey |
|---|---|
| Conductor category | Class 5 = flexible |
| Core identification | Colour |
| Flame retardant according to IEC 60332-1-2 | Yes |
| Halogen free according to EN IEC 60754-2 | No |
| Long description | EMC Cable |
| Manufacturer Product ID | 22234 |
| Material outer sheath | PVC |
| Nominal cross section conductor | 1.5 mm² |
| Nominal voltage U | 1000 V |
| Nominal voltage U0 | 600 V |
| Number of cores | 4 |
| Outer diameter approx. | 10.1 mm |
| Packing type | n/a |
| Permitted cable outer temperature during assembling/handling | -5-80 °C |
| Protective conductor | Yes |
| Reaction-to-fire according to EN 13501-6: Smoke production | None |

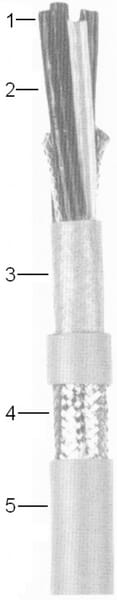

| Technical info | Approval certificates, Adapted to VDE 250, Application, Especially for frequency converter controlled AC drives. For fixed installation and occasional free flexing indoors in dry, damp and wet conditiones, as well as outdoor (separate black version) for low mechanical stress. Not suitable for the installation direct in ground and in water. Cores are normally identified by colours according to HD 308 S2., Design:, Conductor:, plain finely stranded copper, Class 5 according to VDE 0295 or IEC 60228, Protective Conductor:, plain finely stranded copper, Class 5 according to VDE 0295 or IEC 60228 - for cross sections > 16mm² the protective conductor is divided into 3 cores, Insulation:, halogen free special XLPE according to IEC 60502-4 max. core temperature: 90C°, Screen:, Multilayer screen, EMC - optimized regarding to radio frequency interference field strength and voltage according to EN 55011 or DIN VDE 0875, 1. Layer: Al - coated tape, 2. Layer: braid of tinned copper wires, Outer Sheath:, PVC Type YM 2 (polyviny chloride) according to VDE 0207 Part 5,, optional also available with halogen free outer sheath SHF1 (HM2) according to IEC 60092-353 (2XSLSTCH-J), Colour: grey (standard PVC), optional black or transparent, Core identification:, Colour: according to HD 308 S2 |
| Unit | Metre |
Logistics
| EAN | 4060892149719 |
|---|---|
| Unit of measure | MTR |
| Weight | 500 g |
| Dimensions | 1000 × 11 × 11 mm |
| Dangerous goods | No |
You might also like
BPA000261125

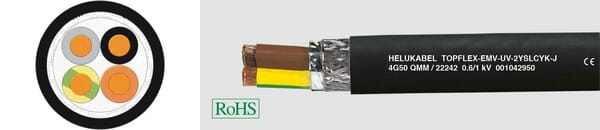

HELU Cable EMV-UV-2YSLCYK-J EMVUV2YSLCYKJ44
£17.84 excl.
£21.41 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000261124
HELU Cable EMV-UV-2YSLCYK-J EMVUV2YSLCYKJ425
£11.29 excl.
£13.55 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000261126
HELU Cable EMV-UV-2YSLCYK-J EMVUV2YSLCYKJ46
£24.98 excl.
£29.98 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000280151

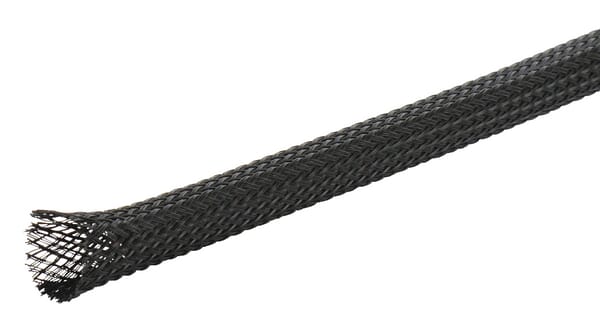

HELU Braided protect hose 8-17mm GBS817
£3.18 excl.
£3.82 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000283239
HELU Cable H01N2-D 1x10 mm² H01N2D10R010BK
£38.08 excl.
£45.70 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000404115

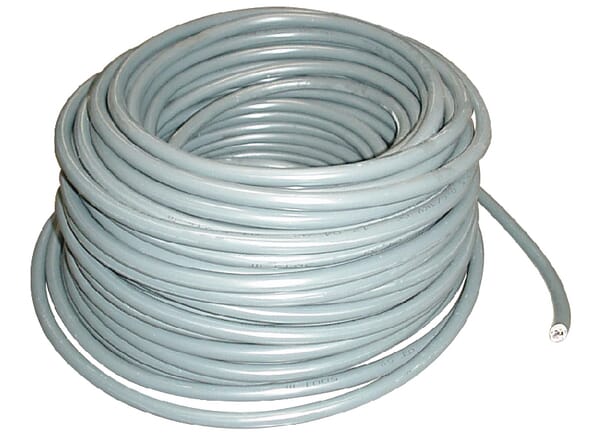

HELU Cable YMVK 5x1,5 mm² grey YMVK5X15
£7.07 excl.
£8.48 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000041663
Kramp Spring lock washer 3/8" Steel Zinc-plated 127B38P001
£0.52 excl.
£0.62 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000020978
Honeywell Dust mask 4110M/L FFP1 (20x) 1005605
£42.81 excl.
£51.37 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000384346

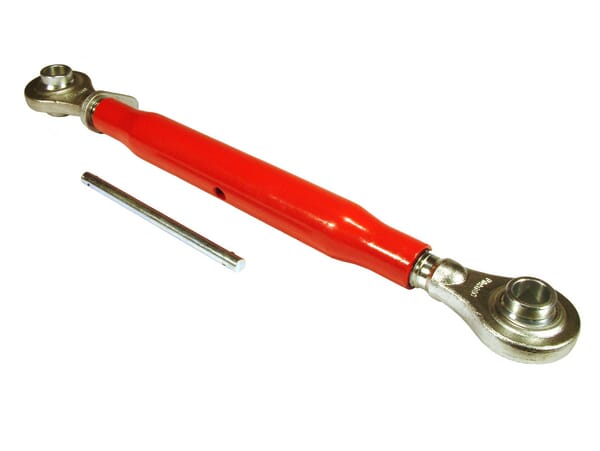

Vapormatic Toplink eye/eye 380, 1-1/4in cat.2/2 VLK1203
