£43.27
excl. VAT
£51.92 incl. VAT
£51.92
incl. VAT
£43.27 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.

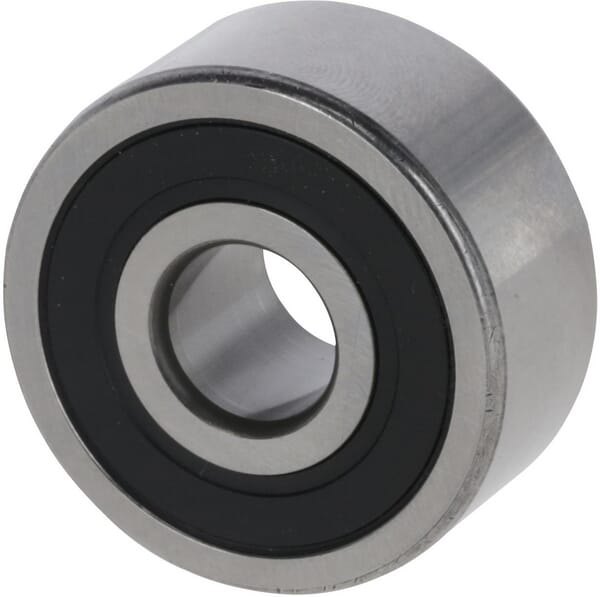

Product details
| Basic radial load dynamic | 7800 N |
|---|---|
| Basic radial load static | 4600 N |
| Bearing model type | Angular contact ball bearings |
| Contact angle | 25 ° |

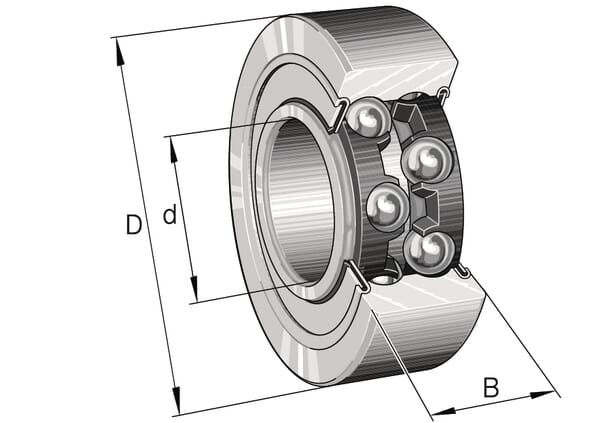

| dInside diameter | 10 mm |
| DOutside diameter | 30 mm |
| Inside diameter of outer ring | 23 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 16100 r/min |
| Max working temperature | 100 °C |
| Min working temperature | -20 °C |
| Original number equivalent | 3200-BB-2RSR-TVH |
| Outside diameter of inner ring | 15.49 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 16000 r/min |
| Regreasable | No |
| Rows number | 2 |
| Sealing | 2RS |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.004 kg |
| Width | 14 mm |
Logistics
| EAN | 4012802123302 |
|---|---|
| Unit of measure | EA |
| Weight | 53 g |
| Dimensions | 28 × 27 × 15 mm |
| Dangerous goods | No |
You might also like
BPA000088639
FAG Angular contact ball bearing 10x30x14mm INA/FAG 3200BBTVH
£36.41 excl.
£43.69 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000088638

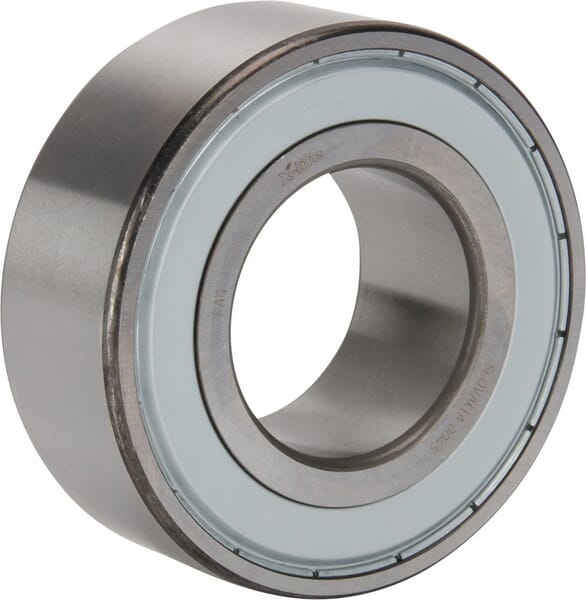

FAG Angular contact ball bearing 10x30x14mm INA/FAG 3200BB2ZTVH
£42.34 excl.
£50.81 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000323682

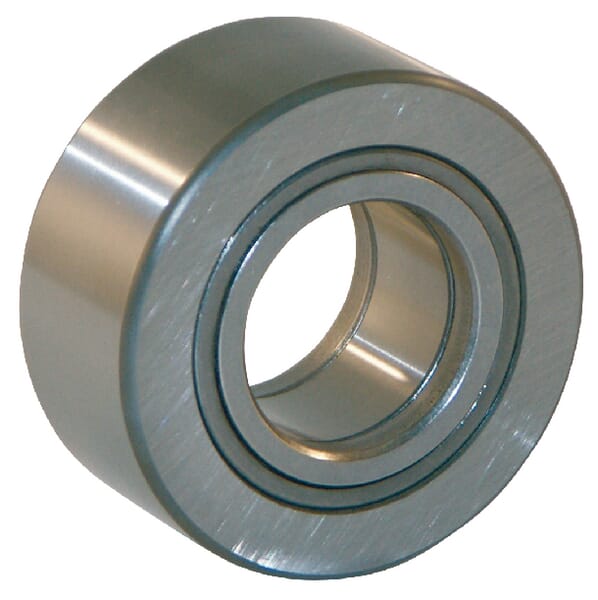

INA Track roller bearing NUTR25XA
£126.69 excl.
£152.03 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000286537

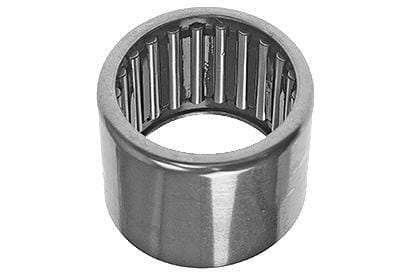

INA Cup needle roller bearing HK4520AS1B
£18.35 excl.
£22.02 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000294149

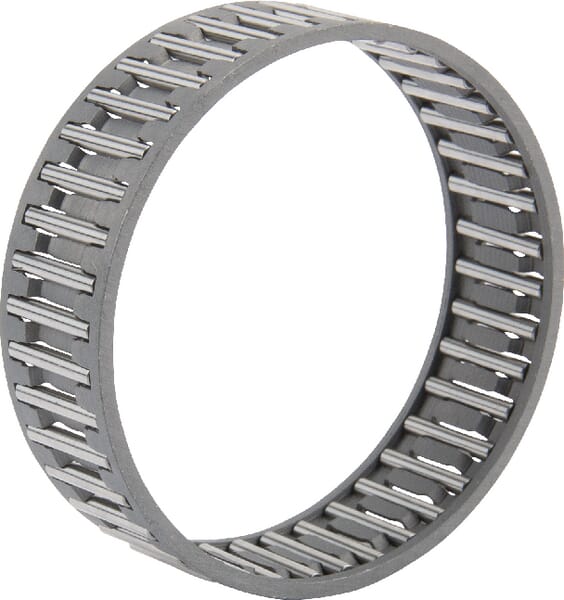

INA Needle cage bearing K50X55X30B07
£20.86 excl.
£25.03 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000345870

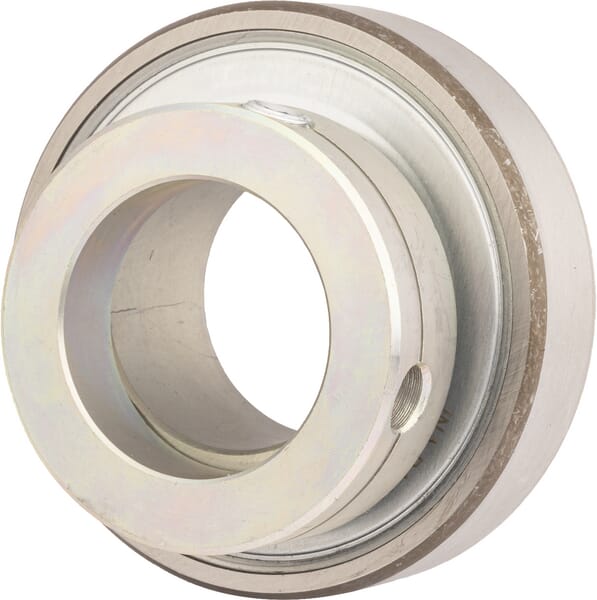

INA Bearing insert 1-1/2" / 38.1x80x21mm INA/FAG RA108NPP
