£49.52
excl. VAT
£59.42 incl. VAT
£59.42
incl. VAT
£49.52 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 11 mm |
| Basic radial load dynamic | 32500 N |
| Basic radial load static | 19800 N |

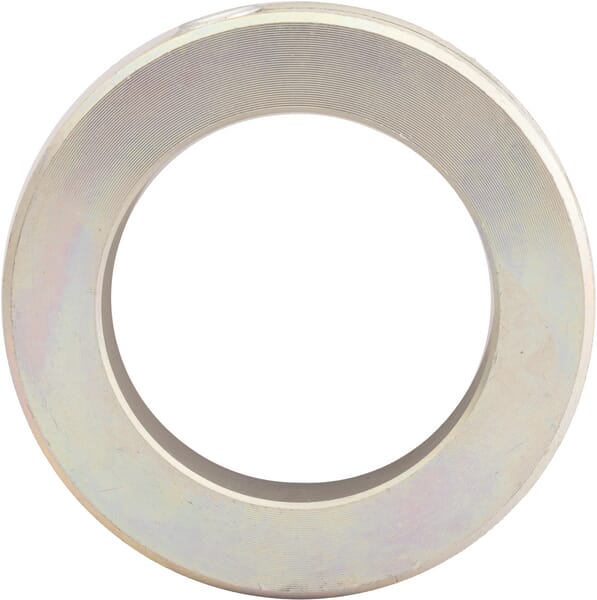

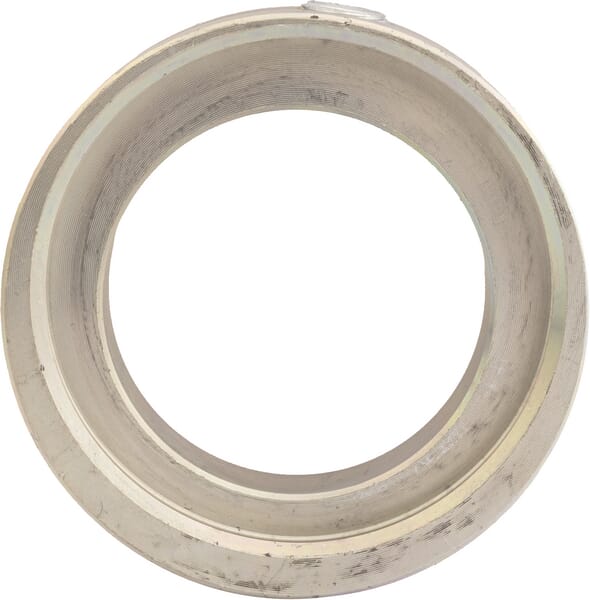

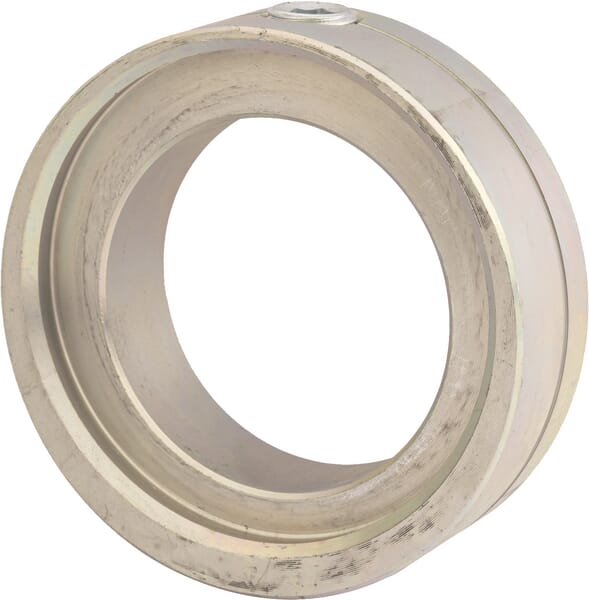

| Consists of | Clamp bearing, Clamp ring |
| Inner ring width | 43.8 mm |
| Inside diameter | 38.1 mm |
| Locking collar and inner ring width | 43.7 mm |
| Locking collar outside diameter | 58 mm |

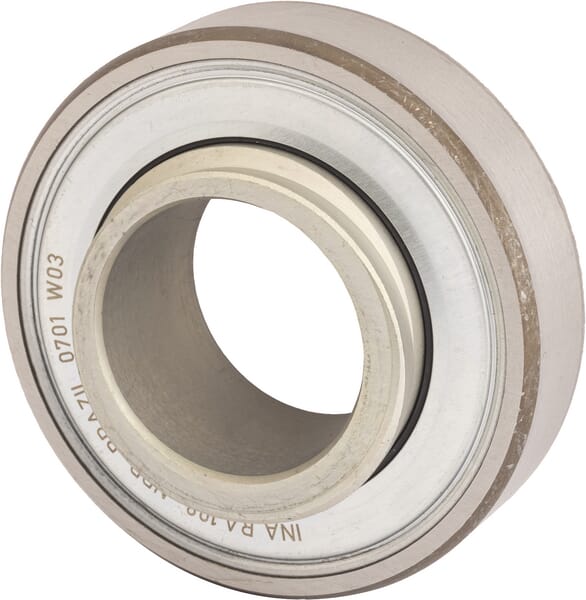

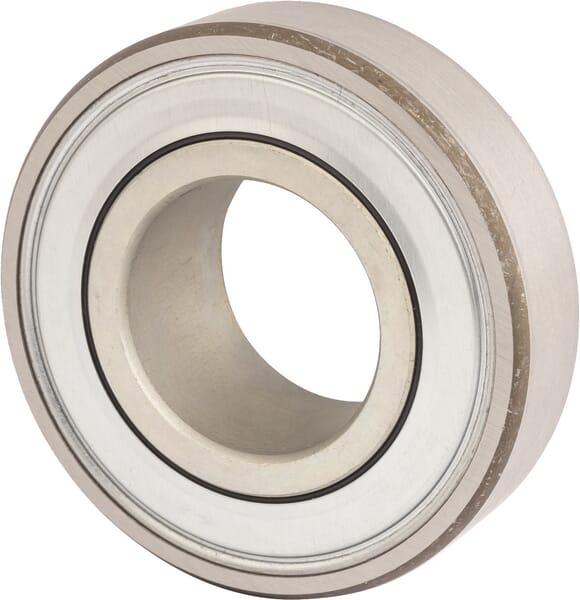

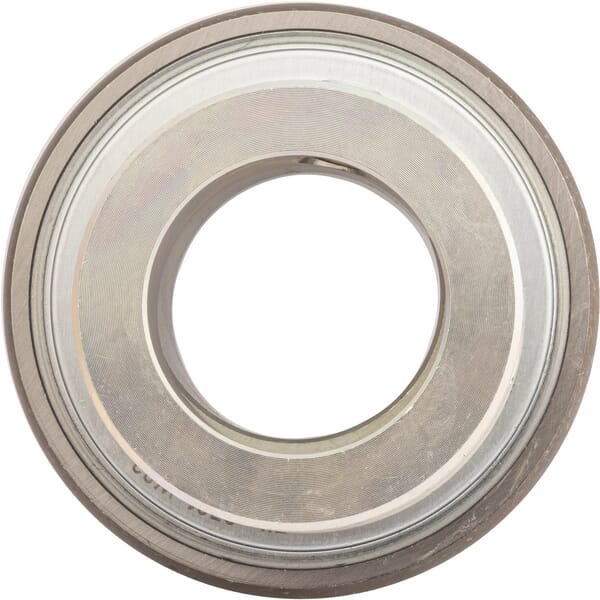

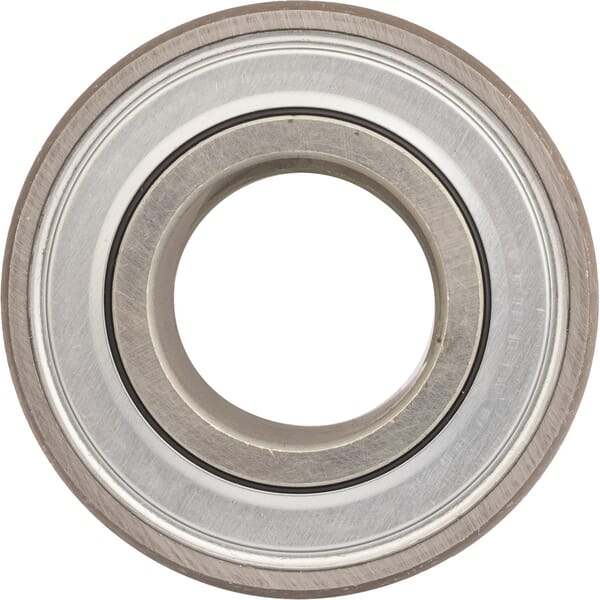

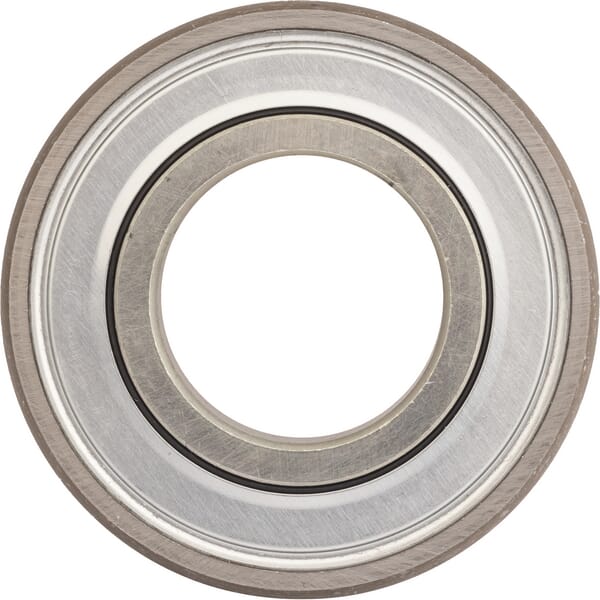

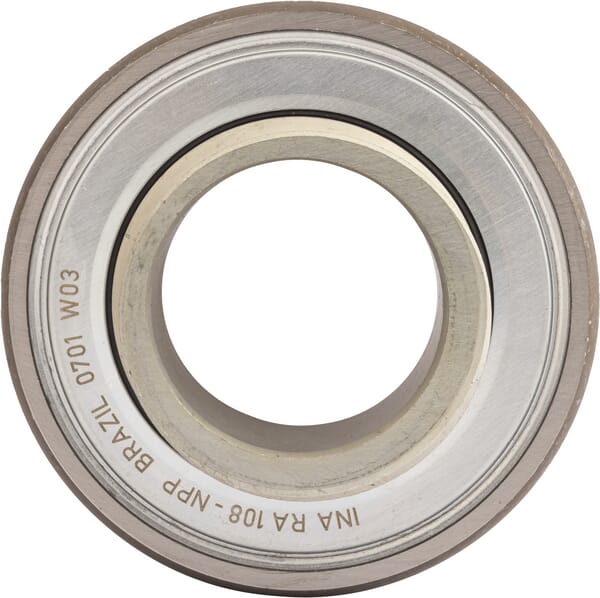

| Long description | Ball bearing inserts INA/FAG, series RA..NPP |
| Manufacturer | Schaeffler |
| Outer ring width | 21 mm |
| Outside diameter | 80 mm |
| Outside diameter of inner ring | 49.4 mm |
| Properties | One-sided extended inner ring with clamp ring, Flat outer ring with no lubrication holes, P seal, Polyamide housing |
| Unit | Each |
| Weight | 0.64 kg |
| Wrench/spanner size | 3/16 Inch |
Logistics
| EAN | 4012802168877 |
|---|---|
| Unit of measure | EA |
| Weight | 669 g |
| Dimensions | 93 × 90 × 52 mm |
| Dangerous goods | No |
You might also like
BPA000281027

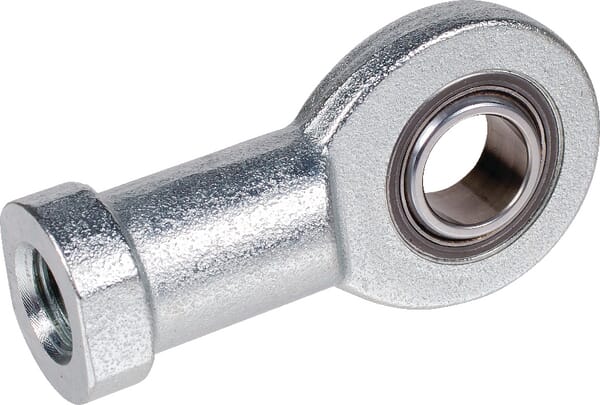

INA Rod head, left-hand thread GIL17UKINA
£61.82 excl.
£74.18 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000343236

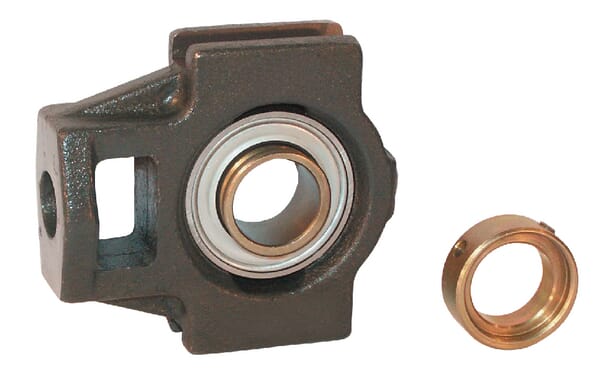

INA Housing unit PHE PTUE20
£57.10 excl.
£68.52 incl.
In stock
Expected to ship on Monday 21 September
BPA000306455

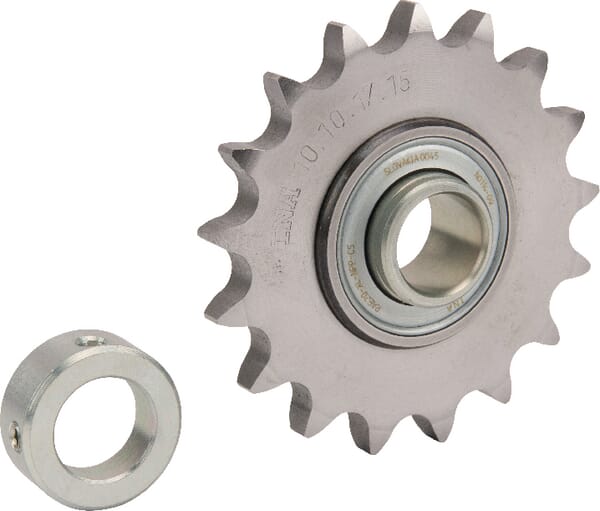

INA Idler sprocket KSR20B010101715
£72.78 excl.
£87.34 incl.
In stock
Expected to ship on Monday 21 September
BPA000279732

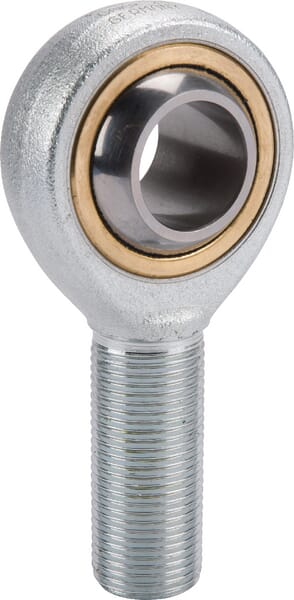

INA Rod head GAKR14PWAINA
£50.19 excl.
£60.23 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000176180

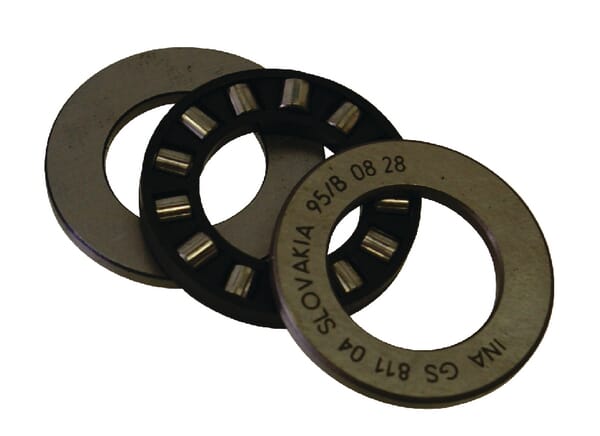

INA Axial cylindrical roll bearing 81106TV
