£35.23
excl. VAT
£42.28 incl. VAT
£42.28
incl. VAT
£35.23 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Basic radial load dynamic | 8500 N |
|---|---|
| Basic radial load static | 5400 N |

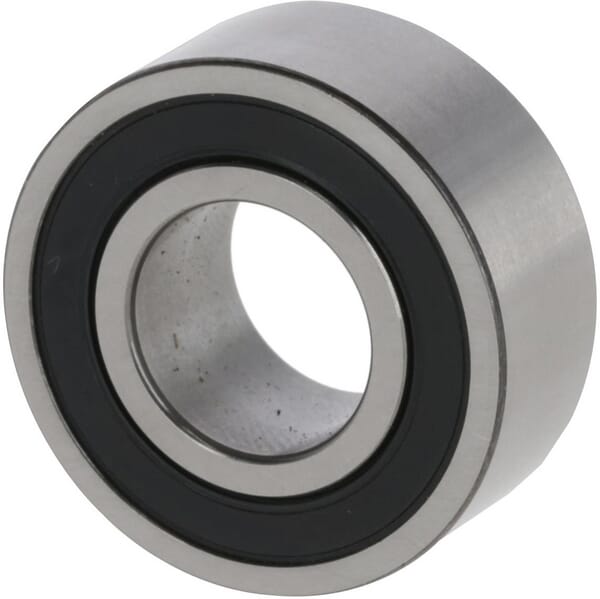

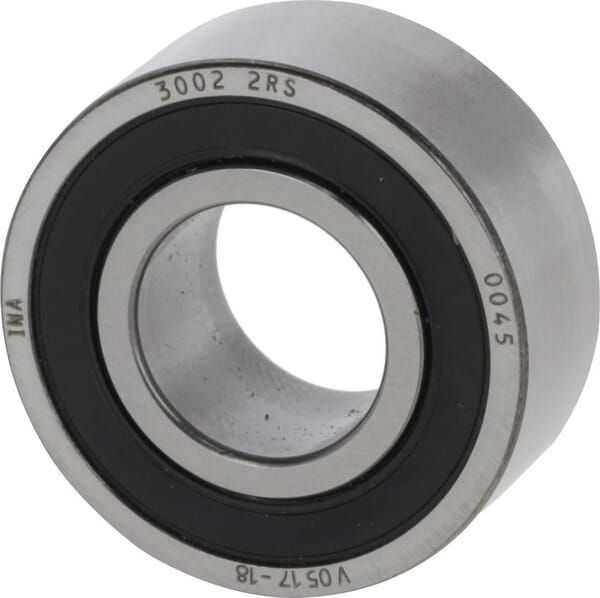

| Bearing model type | Angular contact ball bearings |
| Contact angle | 25 ° |

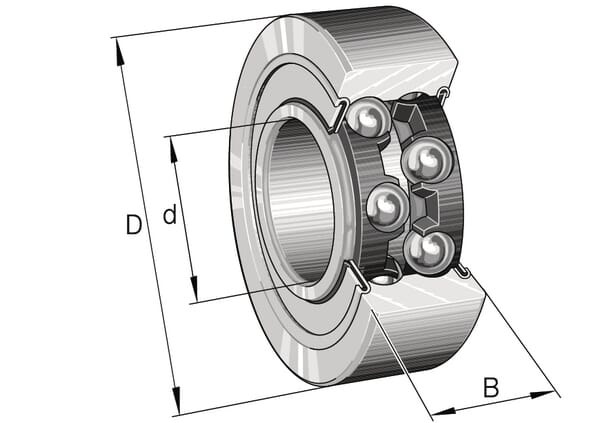

| dInside diameter | 15 mm |
| DOutside diameter | 32 mm |
| Inside diameter of outer ring | 27.23 mm |
| Manufacturer | Schaeffler |
| Max rotation speed | 12900 r/min |
| Max working temperature | 100 °C |
| Min working temperature | -20 °C |
| Original number equivalent | 3002-2RS |
| Outside diameter of inner ring | 20.4 mm |
| Radial internal clearance code | CN |
| Ref rotation speed | 12000 r/min |
| Regreasable | No |
| Rows number | 2 |
| Sealing | 2RS |
| Surface treatment | n/a |
| Unit | Each |
| Weight | 0.042 kg |
| Width | 13 mm |
Logistics
| EAN | 40128020274024064328116658 |
|---|---|
| Unit of measure | EA |
| Weight | 49 g |
| Dimensions | 51 × 43 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000281029

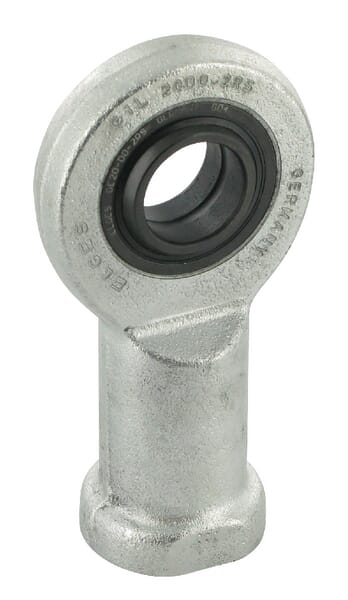

INA Rod head, left-hand thread GIL20DO2RSINA
£80.81 excl.
£96.97 incl.
In stock
Expected to ship on Thursday 24 September
BPA000280846

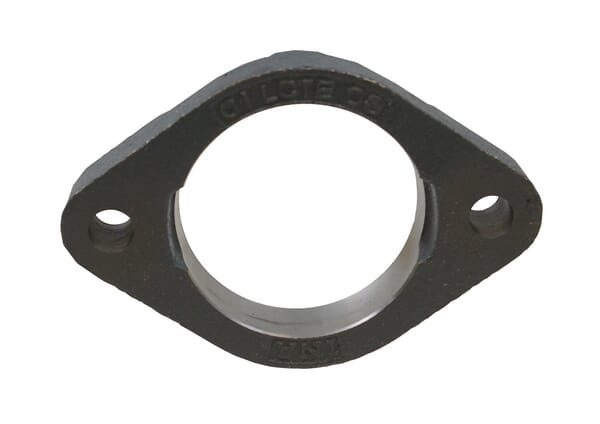

INA Housing for FLCTE 25 GGLCTE05E
£15.92 excl.
£19.10 incl.
In stock
Expected to ship on Thursday 24 September
BPA000286878
INA Bearing insert 1-1/8" / 28.58x62x18mm INA/FAG GRA102NPPB
£33.20 excl.
£39.84 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000356943
INA Oil seal 20x28x4mm type:SD INA/FAG SD20X28X4A
£1.94 excl.
£2.33 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000280796
INA Bearing housing GGCJ04N
£15.19 excl.
£18.23 incl.
In stock
Expected to ship on Thursday 24 September
BPA000281056

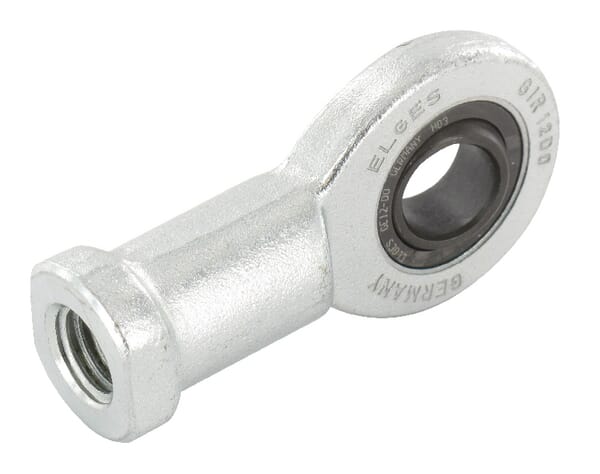

INA Rod head GIR20DOINA
