£91.81
excl. VAT
£110.17 incl. VAT
£110.17
incl. VAT
£91.81 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 12.7 mm |
| Ball centre to grease hole distance | 4 mm |
| Basic radial load dynamic | 12300 N |
| Basic radial load static | 6300 N |
| Benefits | Rust-resistant |
| Consists of | Clamp bearing, 2 adjusting screws |
| Details | Made entirely of stainless steel |
| Inner ring width | 31 mm |
| Inside diameter | 20 mm |
| Locking screw centre to end distance | 5 mm |
| Long description | Ball bearing inserts inox INA/FAG, series GYE..KRRBVAFA |
| Manufacturer | Schaeffler |
| Material | Stainless steel |
| Original number equivalent | GYE20-KRR-B-VA-HLA |
| Outer ring width | 16 mm |
| Outside diameter | 47 mm |
| Outside diameter of inner ring | 29.05 mm |
| Properties | Inner ring extended on both sides with adjusting screws, Convex outer ring with lubricating holes, R seal, Stainless steel cage |
| Sealing width | 16.6 mm |
| Technical info | Addition to FA107: bearing with lubrication openings on the mounting side |
| Unit | Each |
| Weight | 0.15 kg |
| Wrench/spanner size | 2.5 mm |
Logistics
| EAN | 4012802631791 |
|---|---|
| Unit of measure | EA |
| Weight | 159 g |
| Dimensions | 55 × 55 × 35 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000325504
INA Needle roller/angular ball brg NKIA5910XL
£123.71 excl.
£148.45 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000297526
INA Inner ring IR IR505535
£34.29 excl.
£41.15 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000084722
INA Deep groove ball bearing 45x100x25mm INA/FAG 309NPPB
£69.18 excl.
£83.02 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000279763

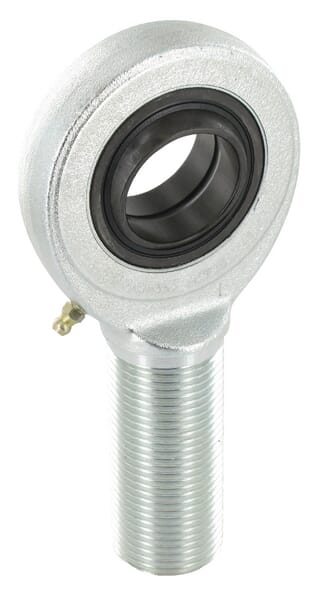

INA Rod head GAL20DO2RSINA
£68.62 excl.
£82.34 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000281003

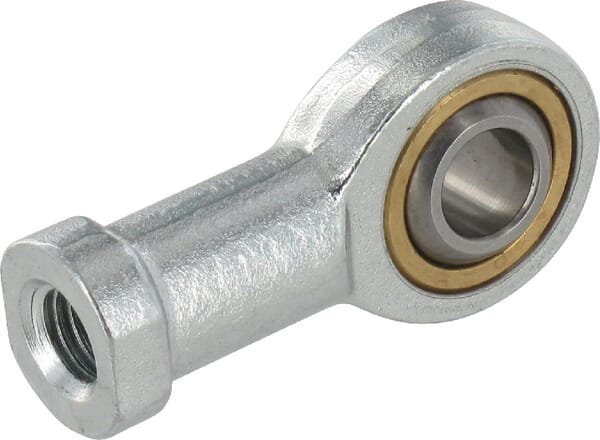

INA Rod head GIKR20PWINA
