£42.62
excl. VAT
£51.14 incl. VAT
£51.14
incl. VAT
£42.62 excl. VAT
In stock
Expected to ship on Tuesday 22 September

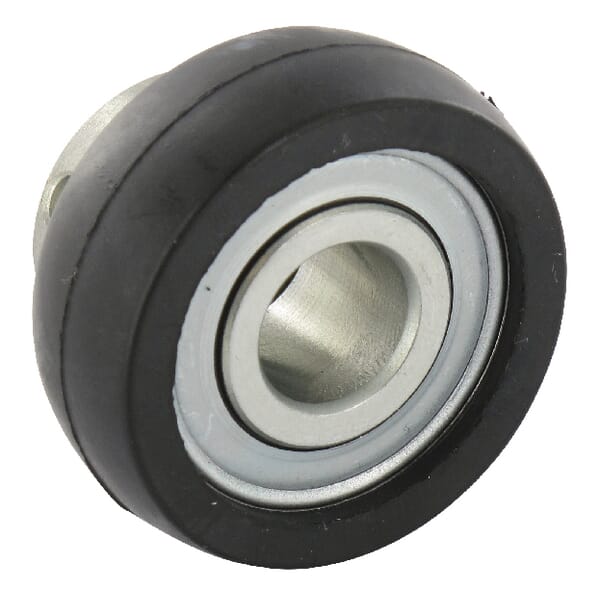

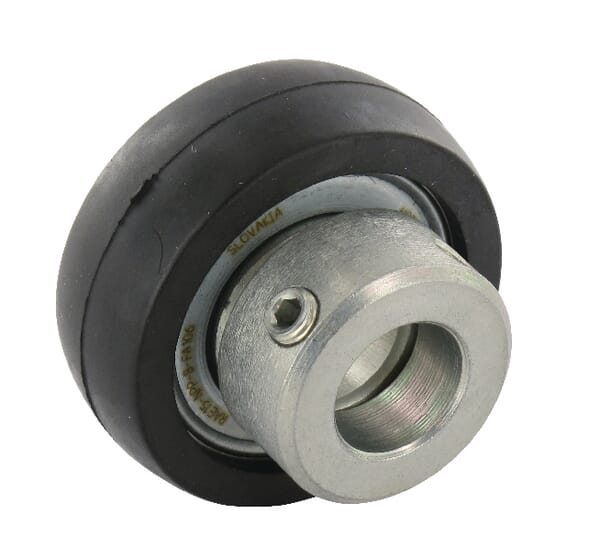

Product details

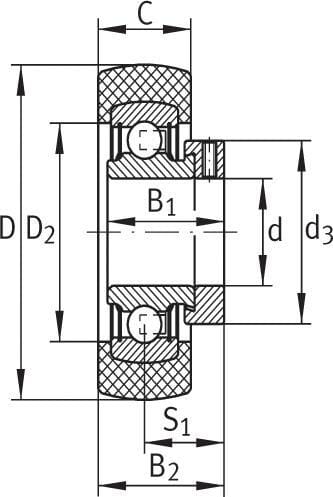

| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| B1Inner ring width | 31 mm |
| B2Locking collar and inner ring width | 31 mm |
| Basic radial load dynamic | 12800 N |
| Basic radial load static | 6600 N |
| Consists of | Clamp bearing, Clamp ring |
| COuter ring width | 17.6 mm |
| d3Locking collar outside diameter | 33 mm |
| dInside diameter | 20 mm |
| DOutside diameter | 52.3 mm |
| Manufacturer | Schaeffler |
| Original number equivalent | RABRB20/52-FA106 |
| Properties | One-sided extended inner ring with clamp ring, Convex rubber outer ring, P seal, Polyamide housing, Rubber hardness 70° Shore A |
| S1Ball centre to end distance | 23.5 mm |
| Unit | Each |
| Weight | 0.2 kg |
Logistics
| EAN | 4012802789232 |
|---|---|
| Unit of measure | EA |
| Weight | 180 g |
| Dimensions | 60 × 58 × 35 mm |
| Dangerous goods | No |
You might also like
BPA000286408
INA Cupped needle roller bearing HK1516
£5.99 excl.
£7.19 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000294089

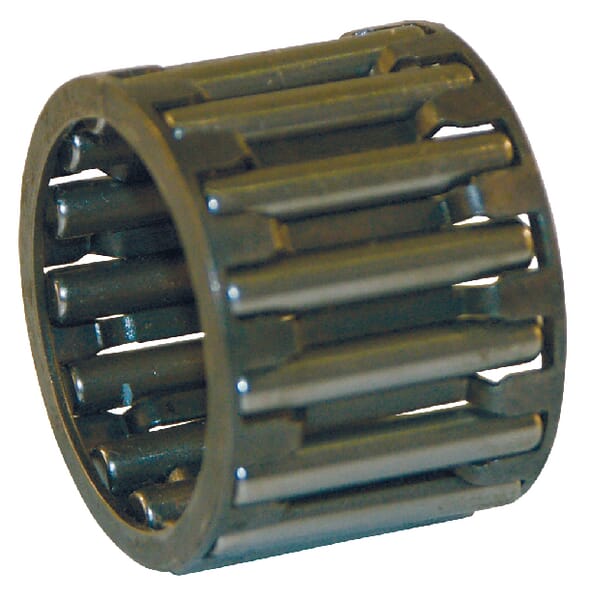

INA Thrust needle roller K404517
£13.32 excl.
£15.98 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000280881

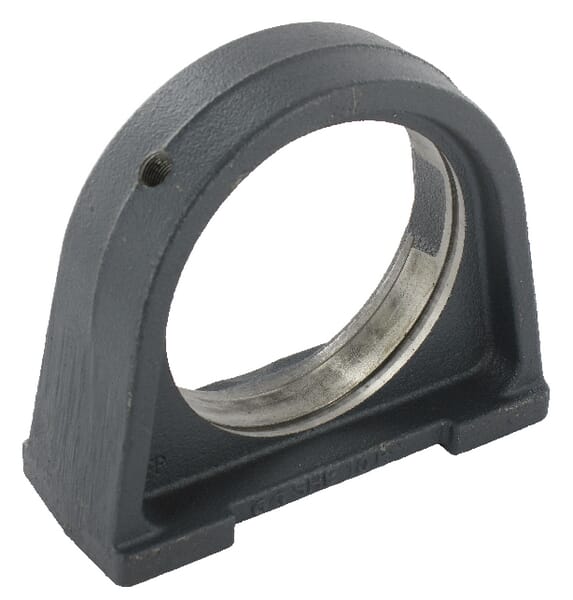

INA Separate housing unit GGSHE03
£20.95 excl.
£25.14 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000273635

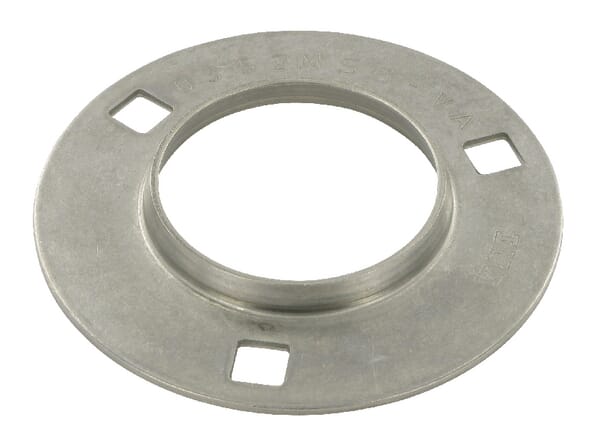

INA Plate steel bearing half MSB FLAN52MSBVA
£18.83 excl.
£22.60 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000310661

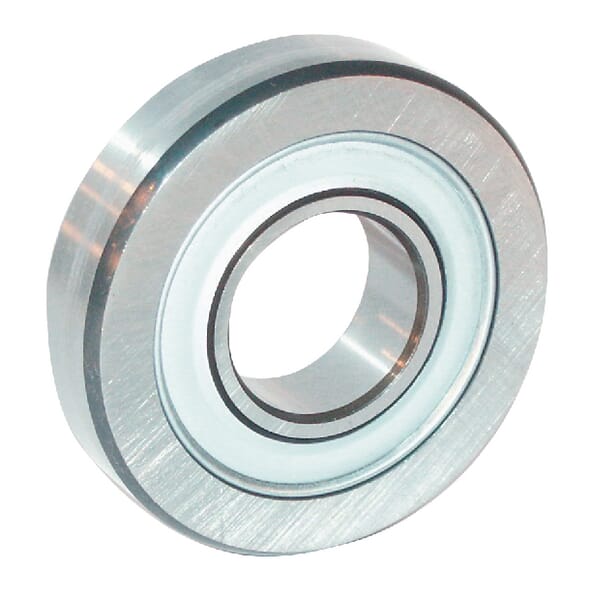

INA Track roller bearing LR52082RS
£154.00 excl.
£184.80 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000291708

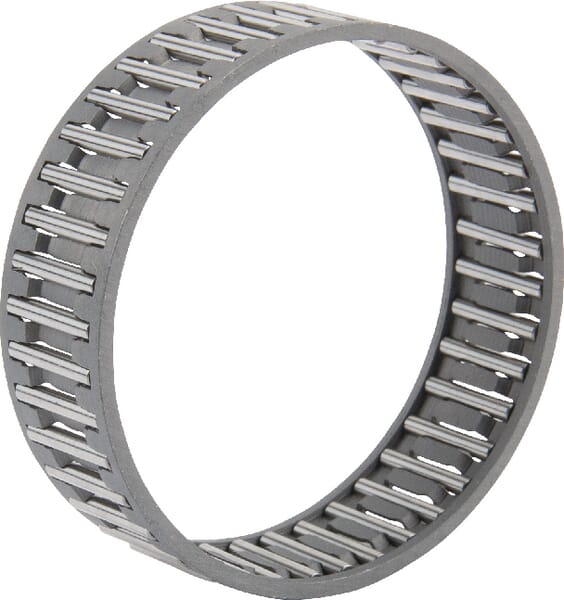

INA Needle cage bearing K8X11X10TV07
