£58.83
excl. VAT
£70.60 incl. VAT
£70.60
incl. VAT
£58.83 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 18.3 mm |
| Ball centre to grease hole distance | 4.7 mm |
| Basic radial load dynamic | 20700 N |
| Basic radial load static | 11300 N |
| Consists of | Clamp bearing, Clamp ring |
| Inner ring width | 36.5 mm |
| Inside diameter | 30 mm |
| Locking collar and inner ring width | 48.5 mm |
| Locking collar outside diameter | 44 mm |

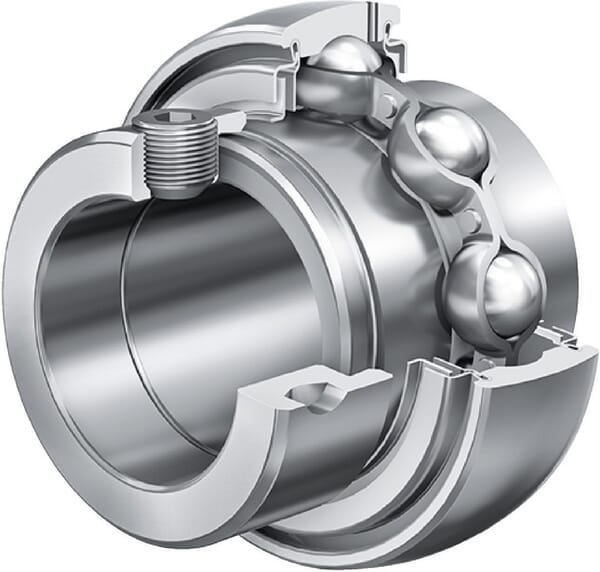

| Long description | Ball bearing inserts INA/FAG, series GE..KLLB |
| Manufacturer | Schaeffler |
| Max working temperature | 180 °C |
| Min working temperature | -40 °C |
| Original number equivalent | GE30-KLL-B |
| Outer ring width | 18 mm |
| Outside diameter | 62 mm |
| Outside diameter of inner ring | 40.2 mm |
| Properties | Extended inner ring with clamp ring on both sides, Convex outer ring with lubricating holes, Labyrinth seal, Steel cage |
| Sealing diameter | 52 mm |
| Sealing width | 20.6 mm |
| Unit | Each |
| Weight | 0.39 kg |
| Wrench/spanner size | 4.0 mm |
Logistics
| EAN | 4012802800036 |
|---|---|
| Unit of measure | EA |
| Weight | 390 g |
| Dimensions | 75 × 75 × 55 mm |
| Dangerous goods | No |
You might also like
BPA000374489

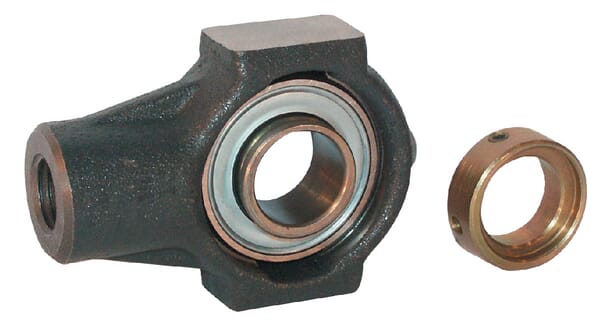

INA Housing unit THE THE25
£71.15 excl.
£85.38 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000342727

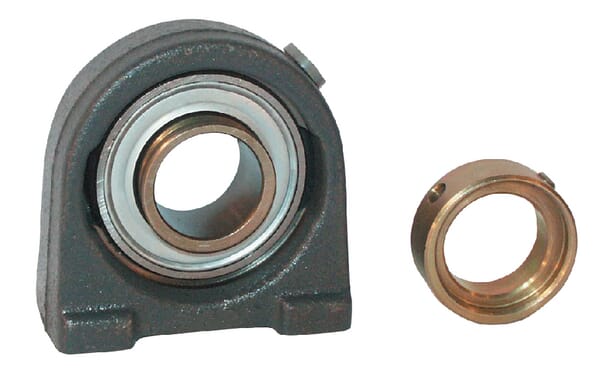

INA Housing unit PSHE PSHE40
£90.10 excl.
£108.12 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000312543
INA Track roller bearing LR2062RSR
£76.71 excl.
£92.05 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000336497
INA PASEY pedestal Bearing housing PASEY25NSSP
£129.30 excl.
£155.16 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000301546

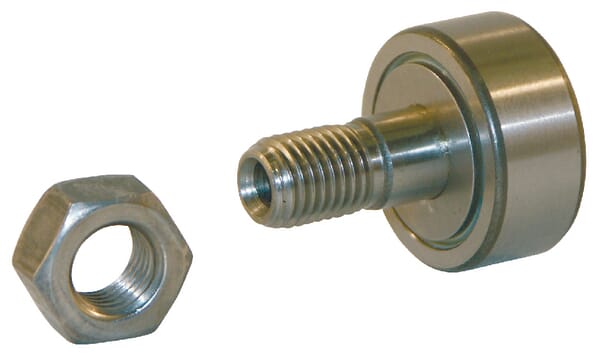

INA Track roller with nut KR16PPANMT
£74.26 excl.
£89.11 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000346247

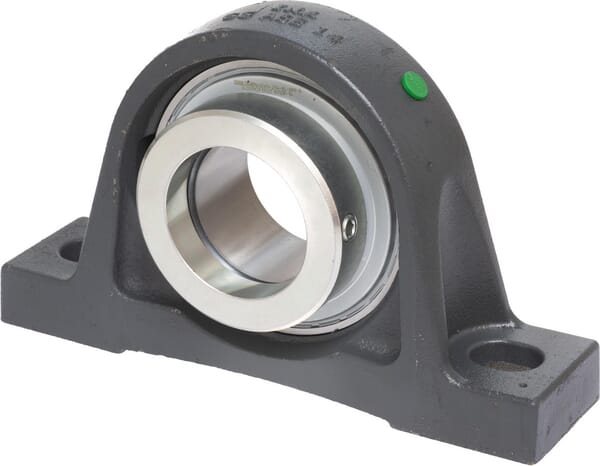

INA Housing unit RASE RASE35
