INA Bearing insert 30x62x18mm INA/FAG GRAE30NPPBFA107125

About this product

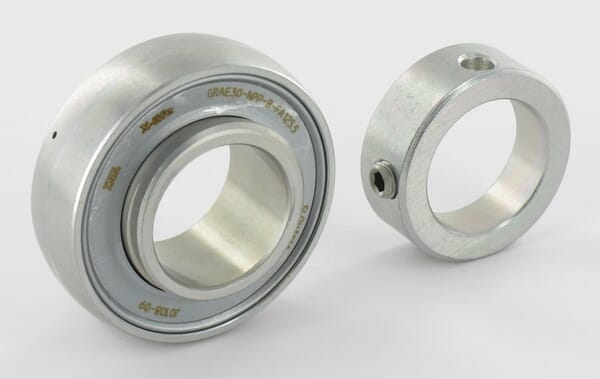

A ball bearing insert from INA's GRAE..NPPB Corrotect series, with an inner bore of 30 mm, outside diameter of 62 mm, and outer ring width of 18 mm, supplied as a single unit. The bearing consists of a clamp bearing and clamp ring and is rated for a basic dynamic radial load of 19500 N and static radial load of 11300 N. The unit features a one-sided extended inner ring with clamp ring, a convex outer ring with lubricating holes, a P seal, and polyamide housing. The locking collar has an outside diameter of 44 mm, with an inner ring width of 23.8 mm and a locking collar width of 35.8 mm. The bearing is suitable for both mobile and stationary mechanical engineering applications. The product weighs 314 g and measures 72 mm length by 72 mm width by 41 mm height. EAN 4012802812213.
