£96.23
excl. VAT
£115.48 incl. VAT
£115.48
incl. VAT
£96.23 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Ball centre to end distance | 18.3 mm |
|---|---|
| Ball centre to grease hole distance | 7 mm |
| Basic radial load dynamic | 39000 N |
| Basic radial load static | 20900 N |

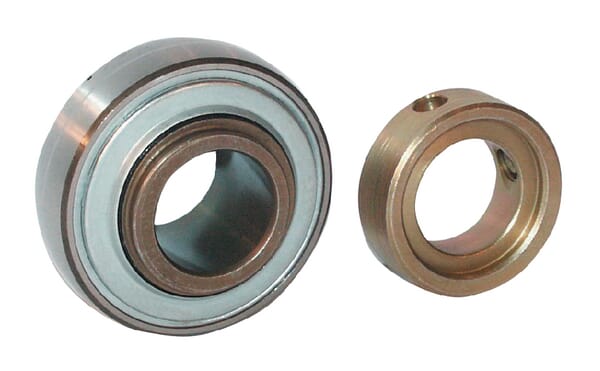

| Includes | Clamp bearing, Clamp ring |
| Inner ring width | 38.1 mm |
| Inside diameter | 35 mm |
| Locking collar and inner ring width | 51.6 mm |
| Locking collar outside diameter | 55 mm |
| Manufacturer | Schaeffler |
| Original number equivalent | GNE35-KRR-B |
| Outer ring width | 22 mm |
| Outside diameter | 80 mm |
| Outside diameter of inner ring | 48 mm |

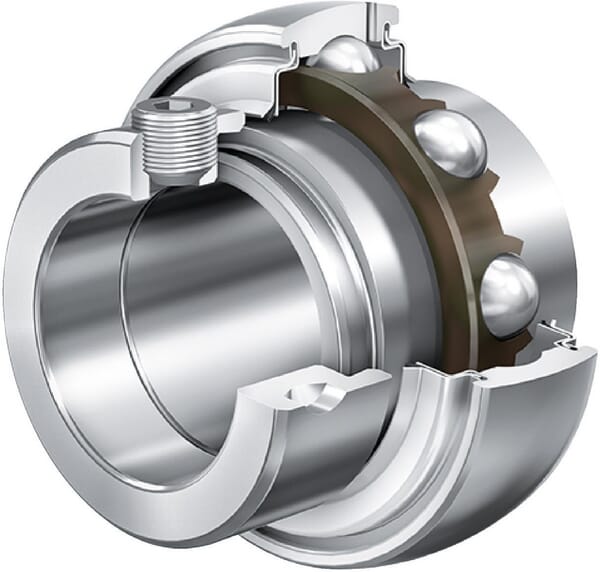

| Product details | Extended inner ring with clamp ring on both sides, Convex outer ring with lubricating holes, R seal, Polyamide housing |
| Sealing diameter | 66.6 mm |
| Sealing width | 25 mm |
| Unit | Each |
| Weight | 0.74 kg |
| Wrench/spanner size | 5.0 mm |
Logistics
| EAN | 4012802816402 |
|---|---|
| Unit of measure | EA |
| Weight | 765 g |
| Dimensions | 100 × 100 × 55 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000347056
INA Housing unit RCJT RCJT45
£117.17 excl.
£140.60 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000365480
INA Collar ring eccentric SRGE60FA125
£20.18 excl.
£24.22 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000280525
INA Bearing insert 30x62x18mm INA/FAG GE30KRRBFA1255
£51.12 excl.
£61.34 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000286448
INA Cup needle roller bearing HK20202RSL271
£11.30 excl.
£13.56 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000312550

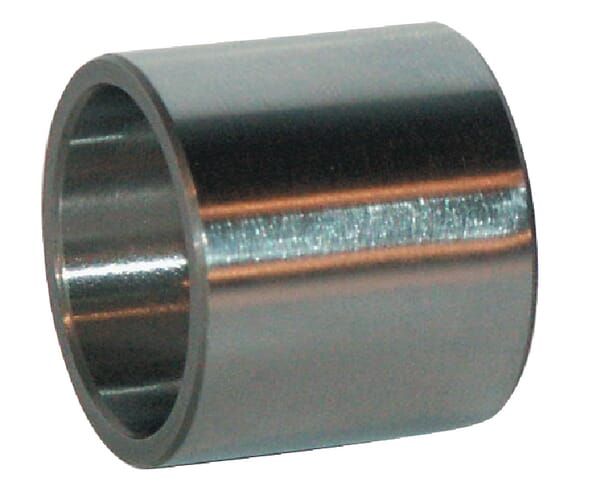

INA Inner ring LR LR2530125
