£232.50
excl. VAT
£279.00 incl. VAT
£279.00
incl. VAT
£232.50 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Mobile mechanical engineering, Stationary mechanical engineering |
|---|---|
| Ball centre to end distance | 19 mm |
| Ball centre to grease hole distance | 6.5 mm |
| Basic radial load dynamic | 35000 N |
| Basic radial load static | 23200 N |
| Benefits | Rust-resistant |
| Consists of | Clamp bearing, 2 adjusting screws |
| Details | Made entirely of stainless steel |
| Inner ring width | 51.6 mm |
| Inside diameter | 50 mm |
| Locking screw centre to end distance | 9 mm |

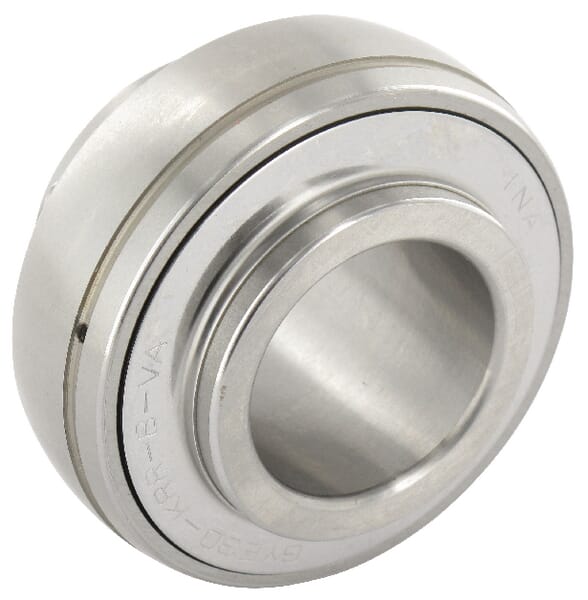

| Long description | Ball bearing inserts inox INA/FAG, series GYE..KRRBVAFA |
| Manufacturer | Schaeffler |
| Material | Stainless steel |
| Original number equivalent | GYE50-KRR-B-FA107-VA-HLA |
| Outer ring width | 23 mm |
| Outside diameter | 90 mm |
| Outside diameter of inner ring | 62.92 mm |
| Properties | Inner ring extended on both sides with adjusting screws, Convex outer ring with lubricating holes, R seal, Stainless steel cage |
| Sealing width | 23.6 mm |
| Technical info | Addition to FA107: bearing with lubrication openings on the mounting side |
| Unit | Each |
| Weight | 0.75 kg |
| Wrench/spanner size | 5.0 mm |
Logistics
| EAN | 4054362378051 |
|---|---|
| Unit of measure | EA |
| Weight | 757 g |
| Dimensions | 90 × 90 × 55 mm |
| Dangerous goods | No |
You might also like
BPA000287266
INA Bearing insert 20x47x14mm INA/FAG GSH202RSRB
£60.58 excl.
£72.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000280846

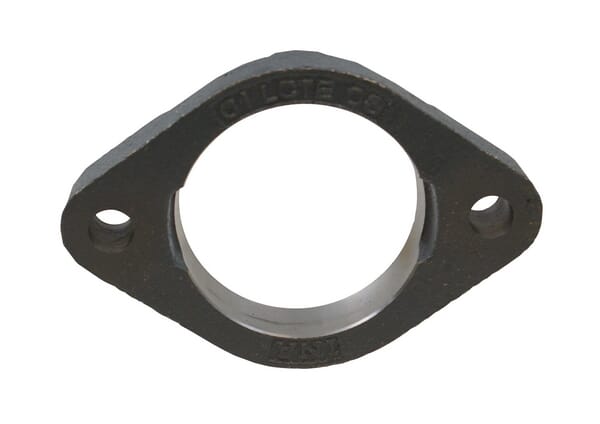

INA Housing for FLCTE 25 GGLCTE05E
£15.92 excl.
£19.10 incl.
In stock
Expected to ship on Friday 18 September
BPA000305958

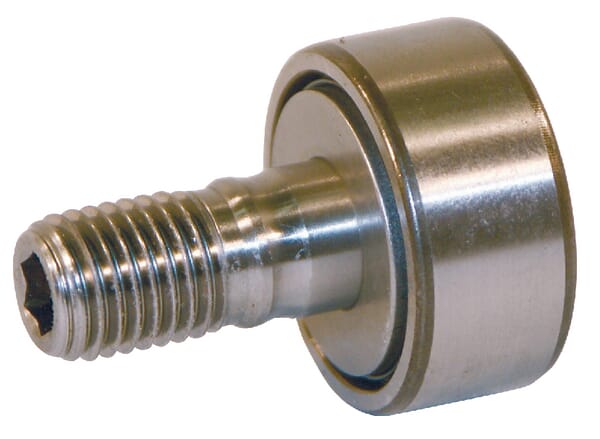

INA KRV stud track full roller KRV22PPA
£70.19 excl.
£84.23 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000323683

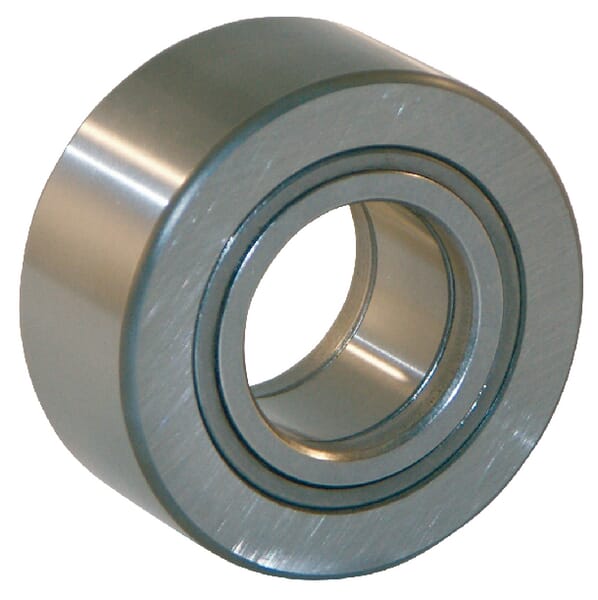

INA Track roller bearing NUTR3072A
£114.99 excl.
£137.99 incl.
In stock
Expected to ship on Friday 18 September
BPA000346273

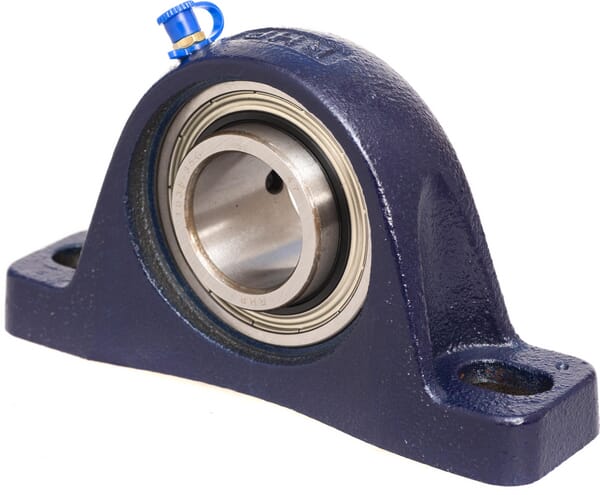

INA Housing unit RASEY RASEY25
£46.32 excl.
£55.58 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000280994

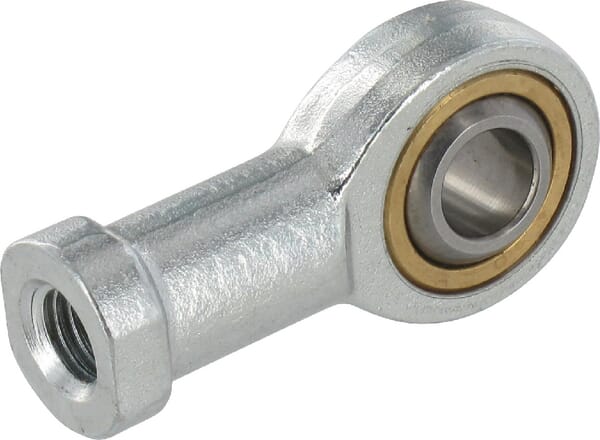

INA Rod head GIKR12PWAINA
