£70.19
excl. VAT
£84.23 incl. VAT
£84.23
incl. VAT
£70.19 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details
| Application range | Packaging machines, Transport systems, Roll-up doors, Roller tensioners |
|---|---|
| Basic radial load dynamic | 6200 N |
| Basic radial load static | 9300 N |
| Bearing model type | Stud type track rollers |
| BTotal length | 36 mm |
| d1Shaft diameter | 10 mm |
| Details | Three-stage seal with axially moving plastic rings on both sides of the track roller bearing |
| DOutside diameter | 22 mm |
| Inside diameter | 10 mm |
| Long description | Track rollers SKF, series KRV .. PP |
| Manufacturer | Schaeffler |
| Max working temperature | 100 °C |
| Min working temperature | -30 °C |
| Mounting thread diameter | M10 |
| Mounting thread length | 12 mm |
| Mounting thread pitch | 1.00 mm |
| Original number equivalent | KRV22-PP-A |
| Outer ring width | 12 mm |
| Properties | Thick-walled outer ring with profiled lateral surface, Solid inner part with journal, Fitted with thread, Driving disc, Single or two-row sets of cylinder rollers or needles |
| Regreasable | Yes |
| Rows number | 1 |
| Sealing | 2RS |
| Shaft length | 23 mm |
| Technical info | Outer ring of lateral surface is annular (R500), Temperature range: -30°C to +140°C, Cage is full complement, With axial guidance via driving disc |
| Unit | Each |
| Weight | 0.04775 kg |
| Width | 12 mm |
| Wrench/spanner size | 5.0 mm |
Logistics
| EAN | 4012802367881 |
|---|---|
| Unit of measure | EA |
| Weight | 55 g |
| Dimensions | 50 × 30 × 32 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000325523

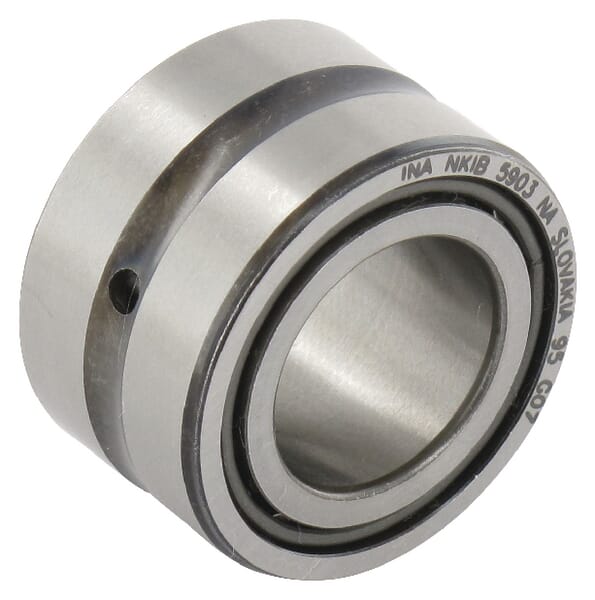

INA Bearing NKIB5907
£136.67 excl.
£164.00 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000287113

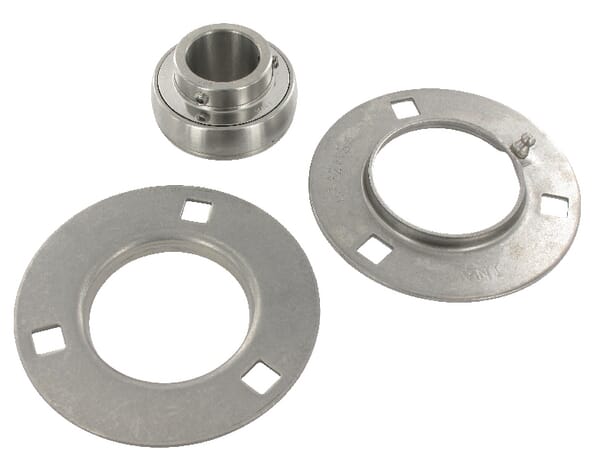

INA Housing unit GRRY stainless steel GRRY30VA
£211.64 excl.
£253.97 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000346059
INA Bearing insert 30x62x18mm INA/FAG RAE30NPPB
£26.52 excl.
£31.82 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000325541

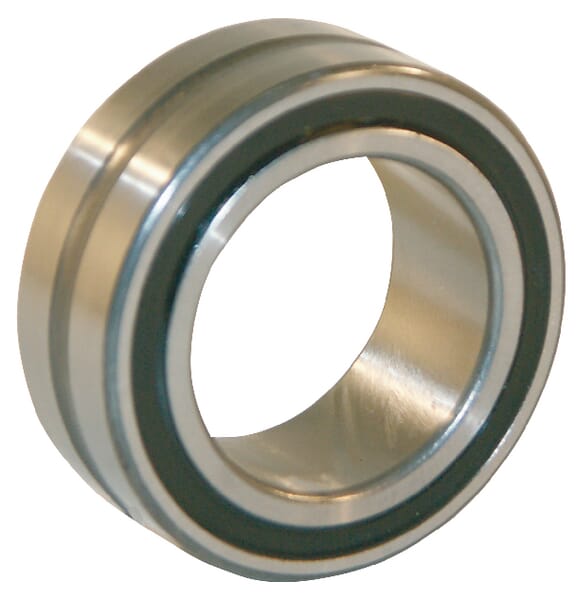

INA Needle roller bearing NKIS15XL
£117.13 excl.
£140.56 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000286478

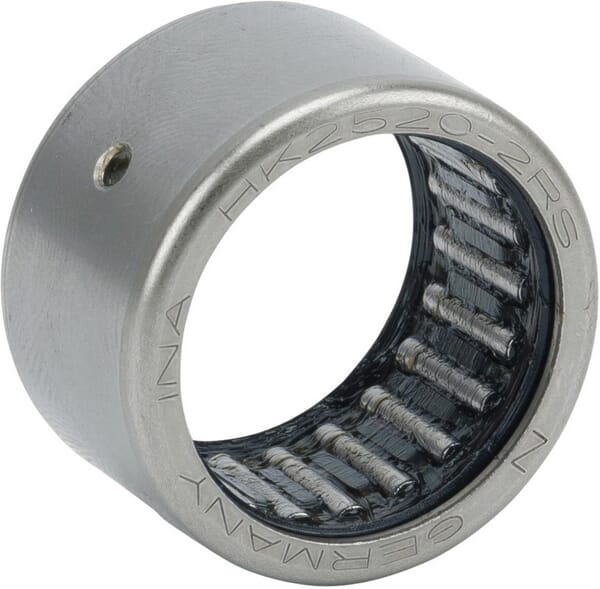

INA Cup needle roller bearing HK25202RSAS1L271
