£146.04
excl. VAT
£175.25 incl. VAT
£175.25
incl. VAT
£146.04 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | Stationary mechanical engineering, Pick-and-place installations, Transport systems, Packaging machines |
|---|---|
| Basic radial load dynamic | 1570 N |
| Basic radial load static | 1230 N |
| Benefits | Exact positioning |
| BHousing width | 28 mm |
| Center grease hole to bottom distance | 21 mm |
| Center grease hole to side distance | 14 mm |
| Consists of | Bearing housing, Linear roller bearing |
| Details | High precision |
| Flange thickness | 8 mm |
| FwInside diameter | 20 mm |
| HHousing height | 47.5 mm |
| Housing material | Aluminium |
| LHousing length | 70 mm |
| Manufacturer | Schaeffler |
| Max working temperature | 80 °C |
| Min working temperature | -30 °C |
| Mounting foot width | 20 mm |
| Mounting holes diameter | 6.6 mm |
| Mounting holes distance | 58 mm |
| Original number equivalent | KGB20-PP-AS |
| Properties | Can be subsequently lubricated, Two-sided double seal, Bearing requires hardened and ground running surfaces |
| Shaft centre to bottom distance | 25 mm |
| Tolerance | H12 |
| Total length | 45 mm |
| Unit | Each |
| Width | 70 mm |
Logistics
| EAN | 4012802047868 |
|---|---|
| Unit of measure | EA |
| Weight | 293 g |
| Dimensions | 88 × 65 × 57 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000297333
INA Linear ball bearing unit KGB2558PPAS
£168.12 excl.
£201.74 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000280945
INA Rod end GIHRK30UK2RSINA
£160.39 excl.
£192.47 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000347071
INA Plastic bearing cover KLT RCJTY20TVVA
£131.29 excl.
£157.55 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000306440

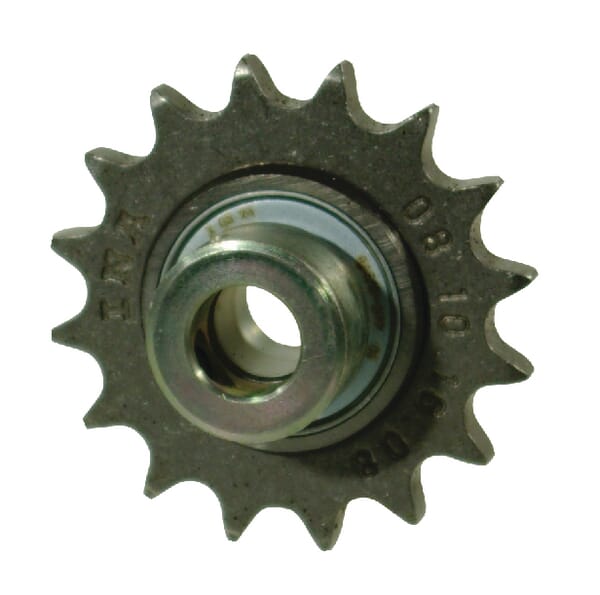

INA Idler sprocket KSR15B012101308
£68.37 excl.
£82.04 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000347088

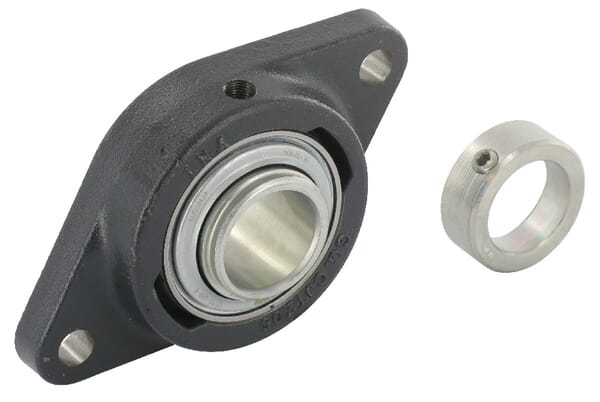

INA Housing unit RCJTZ RCJTZ30
