£168.12
excl. VAT
£201.74 incl. VAT
£201.74
incl. VAT
£168.12 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Stationary mechanical engineering, Pick-and-place installations, Transport systems, Packaging machines |
|---|---|
| Basic radial load dynamic | 2800 N |
| Basic radial load static | 2220 N |
| Benefits | Exact positioning |
| BHousing width | 40 mm |
| Center grease hole to bottom distance | 23 mm |
| Center grease hole to side distance | 20 mm |
| Consists of | Bearing housing, Linear roller bearing |
| Details | High precision |
| Flange thickness | 10 mm |
| FwInside diameter | 25 mm |
| HHousing height | 57.5 mm |
| Housing material | Aluminium |
| LHousing length | 80 mm |
| Manufacturer | Schaeffler |
| Max working temperature | 80 °C |
| Min working temperature | -30 °C |
| Mounting foot width | 28 mm |
| Mounting holes diameter | 6.6 mm |
| Mounting holes distance | 68 mm |
| Original number equivalent | KGB25-PP-AS |
| Properties | Can be subsequently lubricated, Two-sided double seal, Bearing requires hardened and ground running surfaces |
| Shaft centre to bottom distance | 30 mm |
| Tolerance | H12 |
| Total length | 58 mm |
| Unit | Each |
| Width | 80 mm |
Logistics
| EAN | 4012802047875 |
|---|---|
| Unit of measure | EA |
| Weight | 587 g |
| Dimensions | 97 × 62 × 58 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000297332
INA Linear ball bearing unit KGB2045PPAS
£146.04 excl.
£175.25 incl.
In stock
Expected to ship on Tuesday 22 September

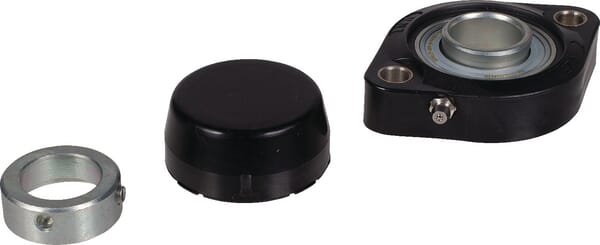

BPA000281204
INA Bearing cover plastic corrotect GLCTE25TVFA1255
£70.23 excl.
£84.28 incl.
In stock
Expected to ship on Tuesday 22 September

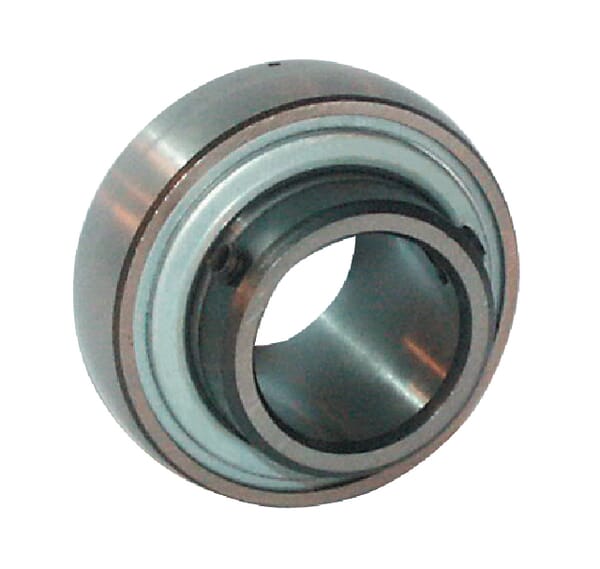

BPA000283085
