£197.15
excl. VAT
£236.58 incl. VAT
£236.58
incl. VAT
£197.15 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

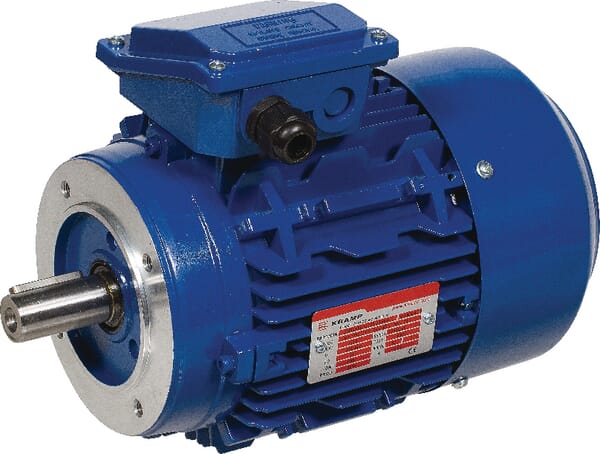

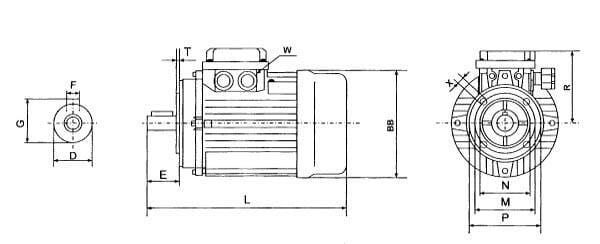

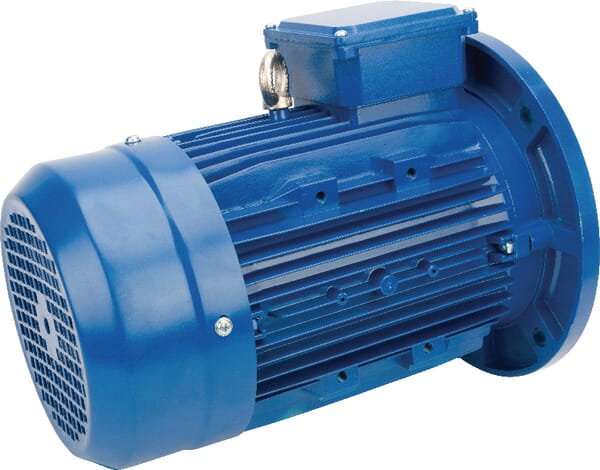

Product details
| BB | 158 mm |
|---|---|
| Frame size | 80 mm |
| In | 1.73 A |
| Key width | 6 mm |
| Length of centring | 3 mm |
| LTotal length | 280 mm |
| Moments of inertia (kgm²) | 0.0023 kg·m² |
| MPitch circle diameter | 100 mm |
| N1 | 1430 r/min |
| NDiameter of centring | 80 mm |
| Noise level | 58 dB(A) |
| PDiameter lead in edge | 120 mm |
| Phase ~ | 3 |
| PN | 0.75 kW |
| Power factor cos phi 100% | 0.73 |
| RDistance center shaft to end terminal box | 140 mm |
| Shaft diameter | 19 mm |
| Shaft length | 40 mm |
| Swivel | M20 x 1,5 |
| Torque Tmax/Tn | 2.8 N·m |
| Torque Ts/Tn | 2.7 |
| Unit | Each |
| Voltage | 230/400V 50Hz V |
| Weight | 11.7 kg |
| XDiameter mounting holes | M6 mm |
Logistics
| EAN | 8716106886227 |
|---|---|
| Unit of measure | EA |
| Weight | 12100 g |
| Dimensions | 325 × 260 × 190 mm |
| Dangerous goods | No |
You might also like
BPA000404535
Kramp Drawbar cat.2 - 960mm Z628961KR
£67.51 excl.
£81.01 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000187479
Kramp Roll pin, heavy duty 10x70mm ISO8752 87521070
£0.65 excl.
£0.78 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000334276
Kramp O-ring 117x4mm 70 shore OR1174P001
£1.77 excl.
£2.12 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000221815
Kramp Plate teeth outside A175806N
£6.68 excl.
£8.02 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

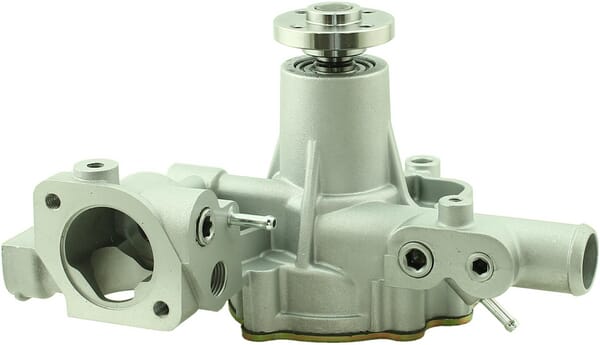

BPA000041950
Kramp Water pump 12900442001N
£125.49 excl.
£150.59 incl.
In stock
Expected to ship on Tuesday 22 September

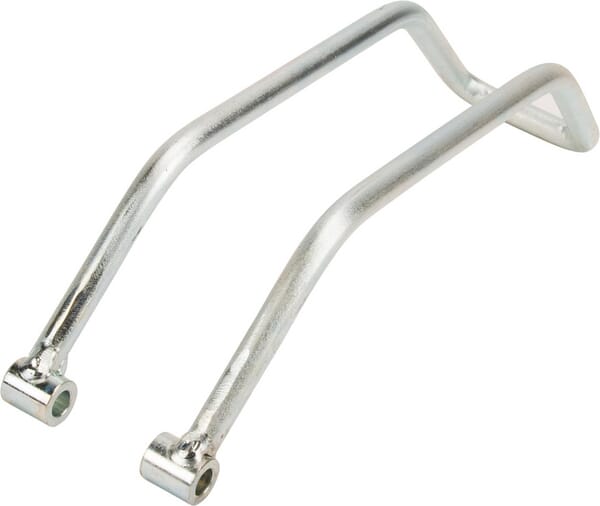

BPA000372142
