£2,827.22
excl. VAT
£3,392.66 incl. VAT
£3,392.66
incl. VAT
£2,827.22 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

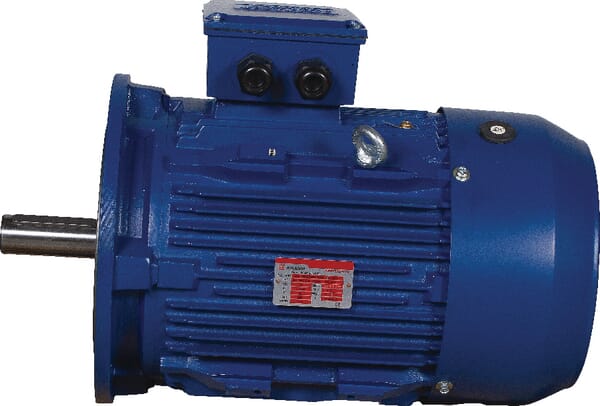

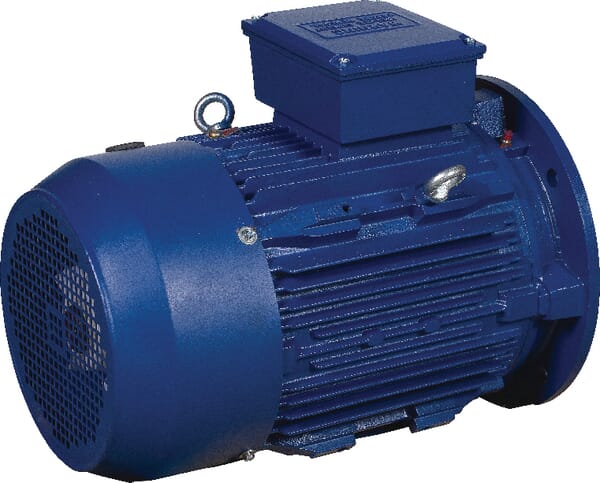

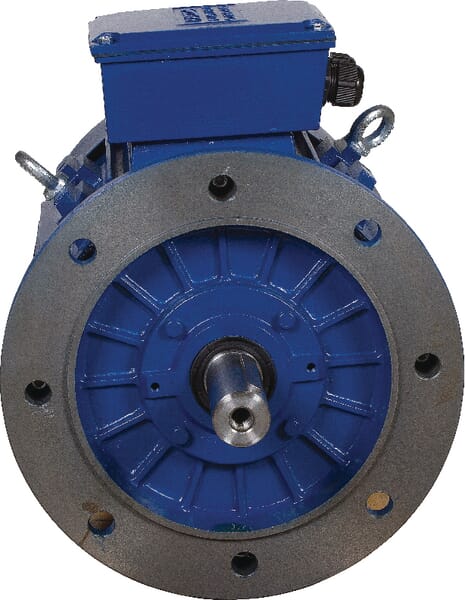

Product details
| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|

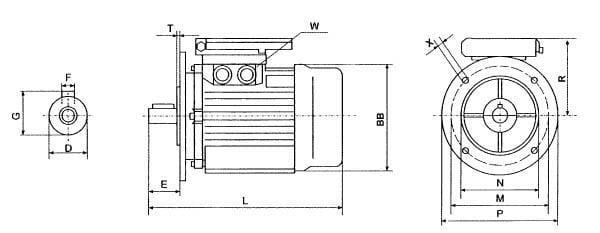

| BBDiameter fan cover | 313 mm |
| Benefits | High operational reliability, Energy-saving, Simple assembly |
| cos φ | 0.92 |
| Details | The motor has an A-mark bearing, High performance, Base mounting possible |
| Frequency | 50 Hz |
| GHeight shaft with key | 37 mm |
| In | 31.41 A |
| Key width | 12 mm |
| Length of centring | 5 mm |
| LTotal length | 650 mm |
| Material housing | Cast iron |
| M (Nm) | 60.46 N·m |
| Moments of inertia (kgm²) | 0.0767 kg·m² |
| MPitch circle diameter | 300 mm |
| N1 | 2922 r/min |
| NDiameter of centring | 250 mm |
| Noise level | 86 dB(A) |
| Phase ~ | 3 |
| PN | 18.5 kW |
| POutside diameter flange | 350 mm |
| Power factor cos phi 100% | 0.91 |
| Properties | Up to and including size 132: aluminium housing, From size 160: cast iron housing |
| RDistance center shaft to end terminal box | 242 mm |
| Shaft length | 110 mm |
| Shaft thread diameter | M16 |
| Swivel | M32 x 1,5 |
| Technical info | Equipped with PTC, At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| TLength of centring | 5 mm |
| Torque | 60.09 N·m |
| Unit | Each |
| Voltage | 400/690V 50Hz V |
| Weight | 144.0 kg |
| XDiameter mounting holes | 19 mm |
Logistics
| EAN | 8716106888191 |
|---|---|
| Unit of measure | EA |
| Weight | 155000 g |
| Dimensions | 740 × 400 × 570 mm |
| Dangerous goods | No |
You might also like
BPA000358143
Kramp Sprocket Simplex 12 teeth 5/8" chain 10 B-1 bore 25 mm SE581225
£5.20 excl.
£6.24 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000192350

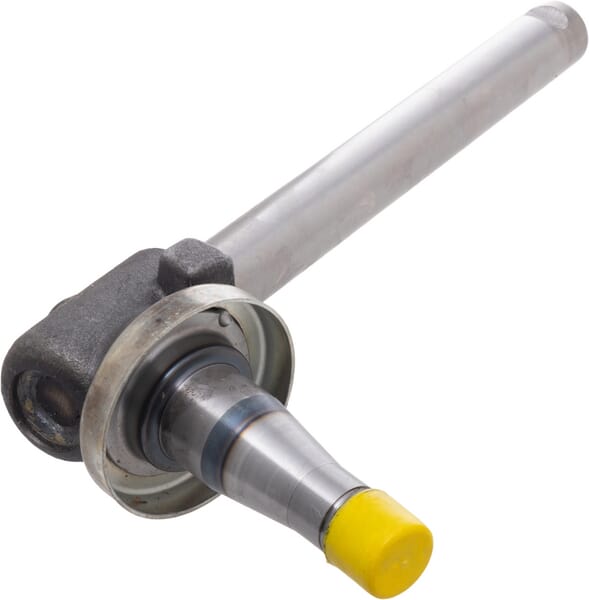

Kramp Axle spindle left 897476M95KR
£93.27 excl.
£111.92 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000322688
Kramp Bearing NWB07910
£12.20 excl.
£14.64 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000183109
Kramp Square flange 4 bolt blind 8" 8309902
£20.79 excl.
£24.95 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000078814

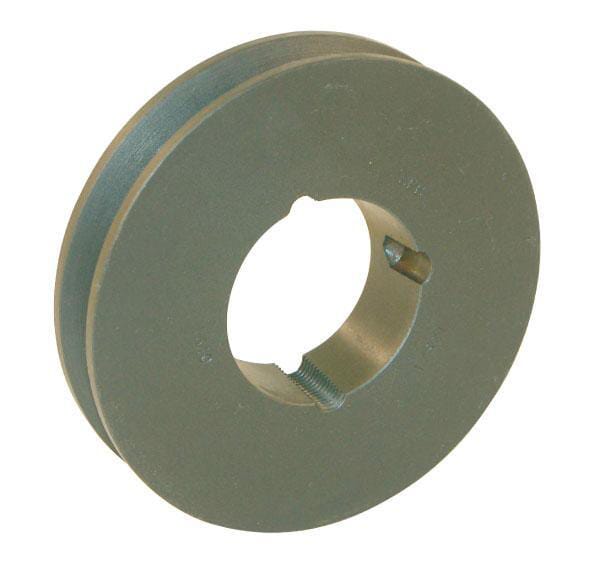

Kramp V-belt pulley 1 groove B or SPB diameter 287mm for taperlockbush 2012 280B1TL
