£148.17
excl. VAT
£177.81 incl. VAT
£177.81
incl. VAT
£148.17 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Unit assembly, Combination with worm gear reducer |
|---|---|
| Benefits | High operational reliability, Energy-saving, Simple assembly |
| Breakdown torque ratio | 2.5 |
| Center ring diameter | 130 mm |
| Details | The motor has an A-mark bearing, High performance, Base mounting possible |
| Frame size | 80 mm |
| Housing material | Aluminium |
| Housing outside diameter | 158 mm |
| Insulation class | 55 |
| Key width | 6 mm |
| Max. Revolutions | 1115 r/min |
| Motor efficiency class | IE3 |
| Mounting holes diameter | 12 mm |
| Mounting holes pitch diamter | 165 mm |
| Noise level | 56 dB(A) |
| Nominal power | 0.37 kW |
| Nominal torque | 3.8 N·m |
| Number of phases | 3 |
| Outside diameter Mounting flange | 200 mm |
| Power factor | 0.68 |
| Properties | Up to and including size 132: aluminium housing, From size 160: cast iron housing |
| Rated frequency | 50-60 Hz |
| Rated rotational speed | 930 r/min |
| Rated voltage | 240 V |
| Shaft diameter | 19 mm |
| Shaft length | 40 mm |
| Starting current ratio | 4.1 |
| Technical info | Equipped with PTC, At 230/400 V: Y-configuration (300), At 400/690 V: Delta configuration (500) |
| Total length | 277 mm |
| Unit | Each |
| Weight | 9.3 kg |

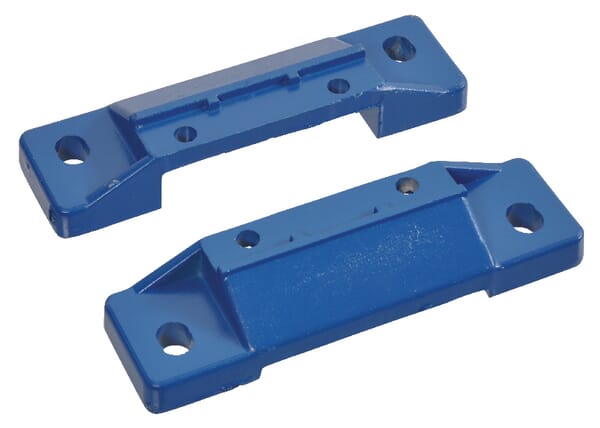

Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8719493621648 |
|---|---|
| Unit of measure | EA |
| Weight | 9064 g |
| Dimensions | 313 × 281 × 217 mm |
| Dangerous goods | No |
You might also like
BPA000305798

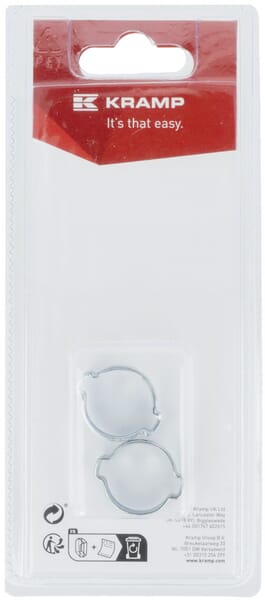

Kramp Hose ear clamp 15 - 18mm (2) KROOR1518P02B
£1.38 excl.
£1.65 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000110273

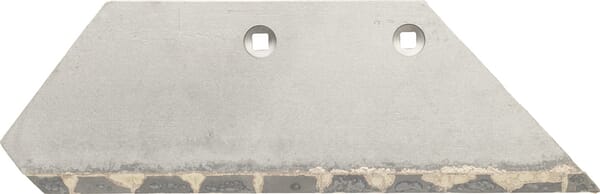

Kramp Share RH carbide 41659460009CN
