£11.61
excl. VAT
£13.93 incl. VAT
£13.93
incl. VAT
£11.61 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Construction machines, Forestry machinery, Agricultural machinery, Mechanical engineering |
|---|---|
| Belt width | 10 mm |
| Benefits | Can be used with different shaft diameters, Fast and simple to assemble and dismantle |
| Consists of | V-belt pulley, No taperlock adjustment bush supplied |
| Designed for belt type | V-Belt |
| Designed for V-belt profile | Z, SPZ, AVX10 |
| Details | With taperlock bore |
| FWorking width | 16 mm |
| Hub diameter | 56 mm |
| Hub width | 22 mm |
| Lock type | 1108 |
| Material | Cast iron |
| Max. bore diameter | 28 mm |
| Max. speed | 30 m/s |
| Number of grooves | 1 |
| OPulley outside diameter | 67 mm |
| PPitch diameter | 63 mm |
| Pulley type | 1 |
| Technical info | Recommended minimum diameter of the v-belt pulley:, For VB10 - 50 mm, For SPZ - 63 mm, For XPZ - 56 mm |
| Unit | Each |
Logistics
| EAN | 4014486249743 |
|---|---|
| Unit of measure | EA |
| Weight | 244 g |
| Dimensions | 60 × 60 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000034967

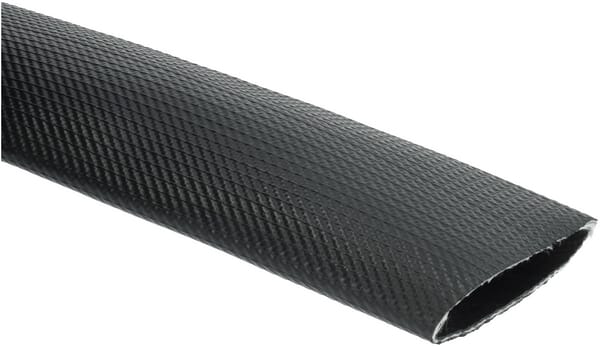

Kramp Pressure hose layflat 1.1/4" Standard 11470600
£7.71 excl.
£9.25 incl.
In stock
Expected to ship on Friday 18 September
BPA000204792
Kramp Countersunk screw DIN966 M4x35 steel zinc-plated 4.8 966435P100
£0.11 excl.
£0.13 incl.
In stock
Expected to ship on Friday 18 September
BPA000091770

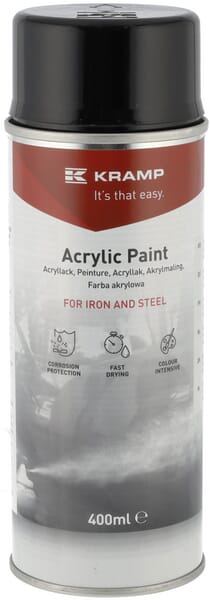

Kramp Steyr red from 1980 400ml 345504KR
