£82.90
excl. VAT
£99.48 incl. VAT
£99.48
incl. VAT
£82.90 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| Application | Tractor |
|---|---|
| Authorisation number | CE |
| Cable length | 0.18 m |
| CISPR standard | 25 Class 3 |
| Colour temperature | 6000 K |
| Content in sale unit | 1 pcs |
| ECE standard | R149, R148 |
| Extra info | Important note :, Dual-color position light: white or amber, Amber light is not E-approved for road use., -R148 applies only at position light color WHITE |

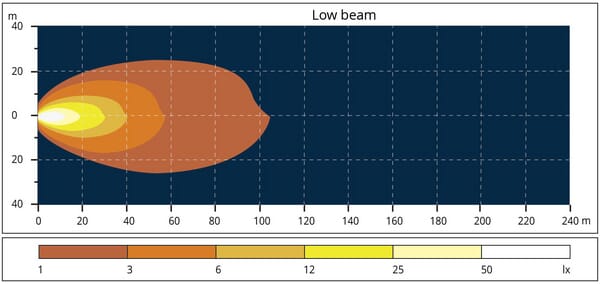

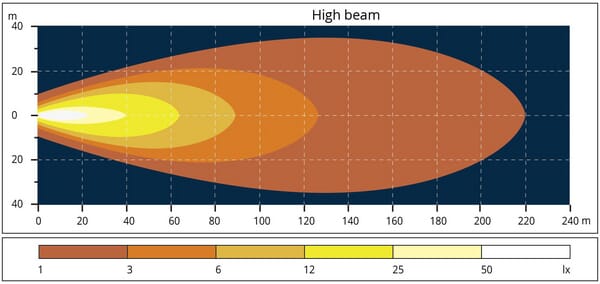

| Function | Vehicle Headlights, Daytime running light, High beam, Low beam, Position light |

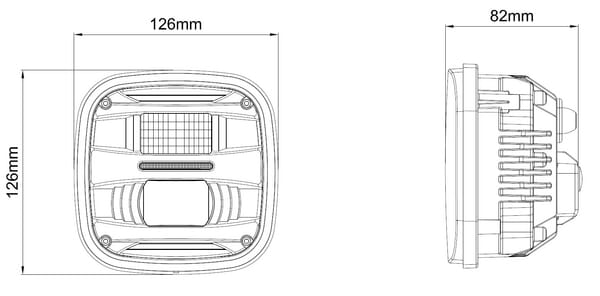

| Height | 126 mm |
| Housing colour | Black |
| Housing material | Aluminium |
| Insulation class | 69K |
| Length (depth) | 82 mm |
| Light colour | White |
| Luminous flux | 2400 lm, 5200 lm |
| Max working temperature | 80 °C |
| Min working temperature | -40 °C |
| Mounting holes diameter | 4 mm |
| Mounting position | Left, Front, Right |
| Mounting thread diameter | M4 |
| Mounting type | Flush-mount |
| Nominal voltage | 12 V, 24 V |
| Nominal voltage range | 10-30 V |
| Number of LEDs | 1, 2, 6 |
| Original number equivalent | AL178138, AL173619, AL178164, AL175030 |

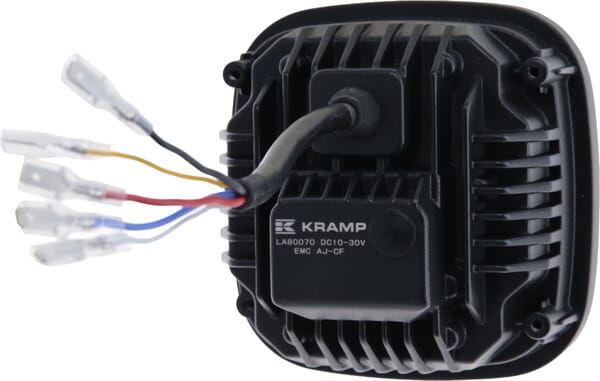

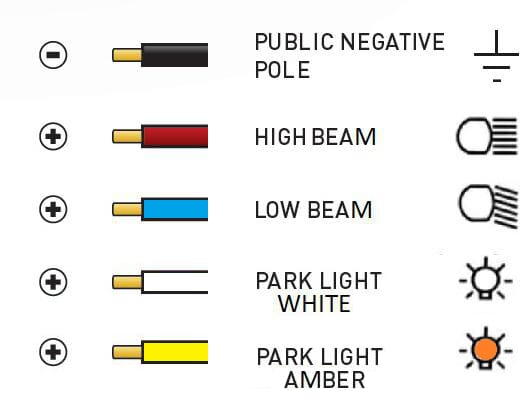

| Plug type | Bare wire ends |
| Power | 3 W, 40 W, 70 W |
| Product details | LED lamps are exposed to dirt, fertilisers, road salt, acids and more., For best performance and long life, the lens and cooling fins should be cleaned regularly, Meets latest LED technology, Minimum 30.000 hrs of lifetime, Retail friendly packaging, 1 year warranty |
| Series | BLACK |
| Shape | Square |
| Suitable for machine/vehicle brand | John Deere |
| Suitable for machine/vehicle series | 4630, 5430I, 6100J, 6115J, 6125E MONTENEGRO, 6125J, 6135J, 6150J, 6170J, 6190J, 6210J, 6230 Premium, 6330 Premium, 6430 Premium, 6530 Premium, 6534 Premium, 6630 Premium, 6830 Premium, 6930, 7130 Premium, 7230 Premium, 7330 Premium, 7430E, 7530E, M4025 |
| Technology | LED |
| Unit | Each |
| Weight | 0.72 kg |
| Width | 126 mm |
Logistics
| EAN | 8719493482010 |
|---|---|
| Unit of measure | EA |
| Weight | 810 g |
| Dimensions | 155 × 155 × 112 mm |
| Dangerous goods | No |
You might also like
BPA000140551
Kramp Oil seal 55x70x8mm type:CC DIN 3760 10x 55708CCP010
£15.55 excl.
£18.66 incl.
In stock
Expected to ship on Friday 18 September
BPA000085138

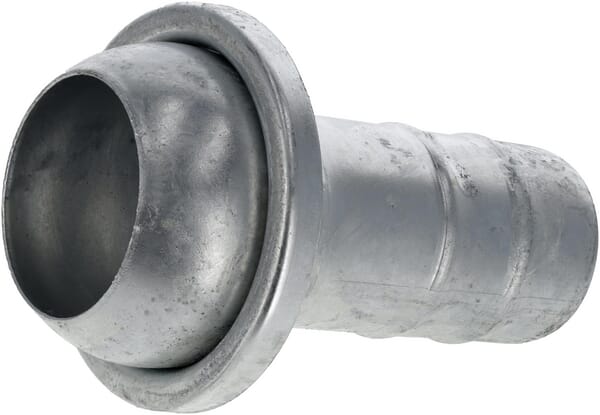

Kramp Male coupling 3" with hose tail 3"(76mm) 3124000
£32.32 excl.
£38.78 incl.
In stock
Expected to ship on Friday 18 September
BPA000124218
Kramp Oil seal 48x72x12mm type:CB DIN 3760 1x 487212CBP001
£4.77 excl.
£5.72 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000328078
Kramp O-ring 291.69x3.53mm 90 shore OR2916935390P001
£6.65 excl.
£7.98 incl.
In stock
Expected to ship on Monday 21 September
BPA000152188

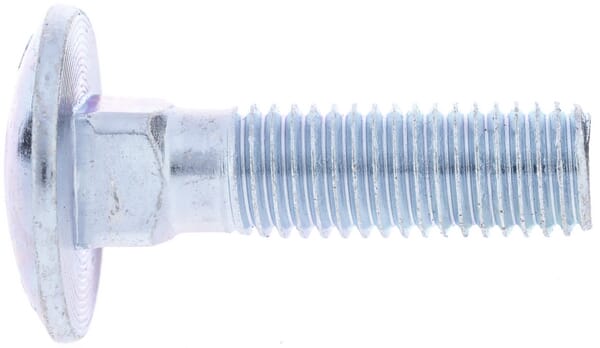

Kramp Coach bolt DIN603 M12x45 steel zinc-plated 8.8 603124588
£0.53 excl.
£0.64 incl.
In stock
Expected to ship on Friday 18 September
BPA000329580

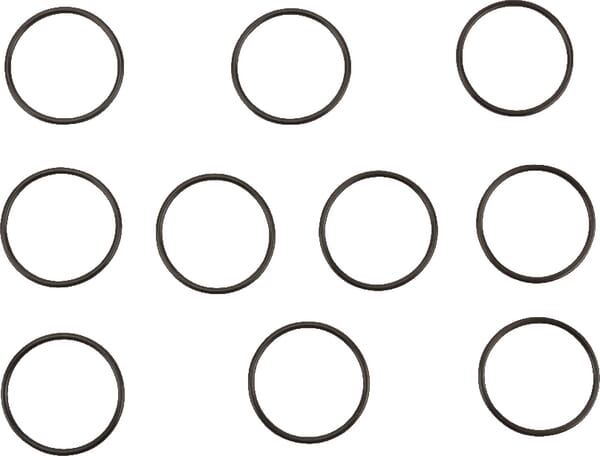

Kramp O-ring 39.35x2.62mm 90 shore 10x OR393526290P010
