Product details
| Content in sale unit | 1 pcs |
|---|---|
| DIN standard | 933 |
| Head shape | Hexagon |
| ISO standard | 4017 |
| kHead height | 14 mm |
| lLength | 80 mm |
| Long description | Hexagon head set screw, fully threaded, length is measured below the head. ISO 4017 supersedes DIN 933: according to ISO spanner sizes 16, 18, 21 and 34 are for M10, M12, M14 and M22 respectively. |
| Material | Stainless steel |
| Quality | A2 |
| Thread diameter | M22 |
| Thread pitch | 2.50 mm |
| Thread type | Metric |
| Unit | Each |
| Weight per 100 pcs | 29.5 kg |
| Wrench/spanner size | 32.0 mm, 34.0 mm |
Logistics
| EAN | 8716106840120 |
|---|---|
| Unit of measure | EA |
| Weight | 295 g |
| Dimensions | 93 × 37 × 32 mm |
| Dangerous goods | No |
You might also like
BPA000271753
Kramp Mulching blade L: 533mm, round hole: diameter 9.5 suitable for John Deere by FGP015312
£13.43 excl.
£16.12 incl.
In stock
Expected to ship on Friday 18 September
BPA000133201
Kramp Oil seal 5x16x7mm type:CB DIN 3760 1x 5167CBP001
£3.56 excl.
£4.27 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000361782
Kramp Hose PU DUCT-0.7 32mm SL107032P010
£11.95 excl.
£14.34 incl.
In stock
Expected to ship on Friday 18 September
BPA000198356
Kramp Hexagon head bolt DIN931 M30x80 steel zinc-plated 10.9 9313080109
£8.75 excl.
£10.50 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000251247

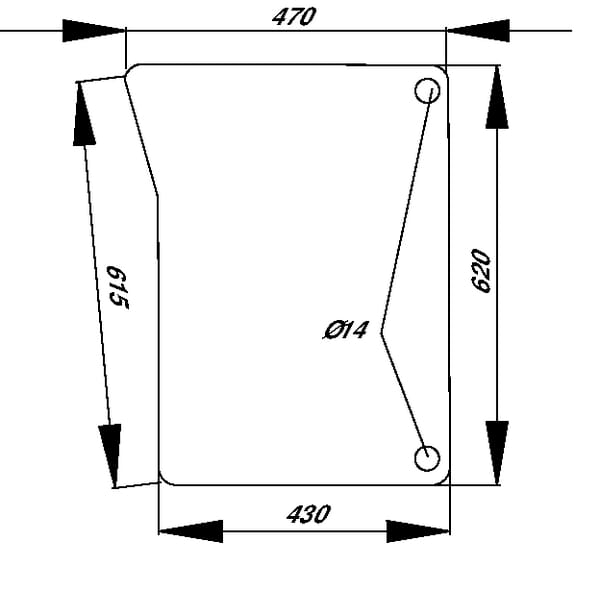

Kramp Windscreen lower D8182
£115.02 excl.
£138.02 incl.
In stock
Expected to ship on Friday 18 September
BPA000116524

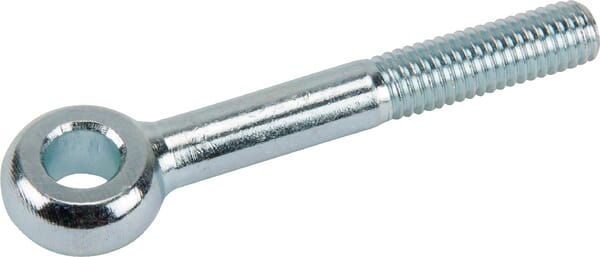

Kramp Eye bolt DIN444B M20x130 steel zinc-plated 4.6 444B20130
