£218.70
excl. VAT
£262.44 incl. VAT
£262.44
incl. VAT
£218.70 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September

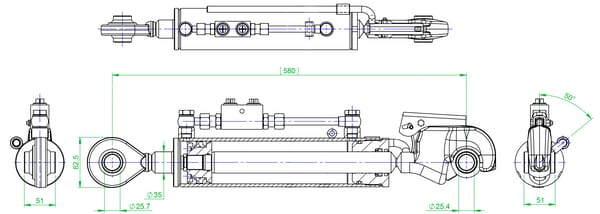

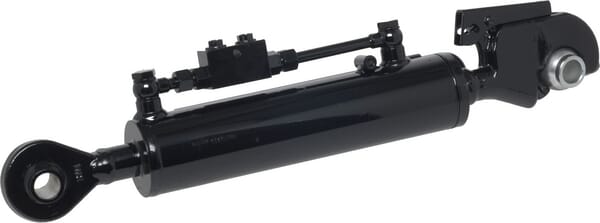

Product details
| Colour | Black |
|---|---|
| Cylinder bore diameter | 70 mm |
| Cylinder material | Steel ST52 |
| Includes | Cylinder, Operated check valve, Ball, Actuation cable |
| Max. length | 810 mm |
| Max. piston speed | 0.1 m/s |
| Max. pull capacity at 200 bar | 5.8 t |
| Max. push capacity at 200 bar | 7.7 t |
| Max. working pressure | 250 BAR |
| Min. length | 580 mm |
| Mounting hole diameter - cylinder connection | 25.7 mm |
| Mounting hole diameter - rod connection | 25.7 mm |
| Mounting thread diameter - cylinder connection | 3/8 Inch |
| Mounting thread diameter - rod connection | 3/8 Inch |
| Mounting thread type - cylinder connection | BSP |
| Mounting thread type - rod connection | BSP |
| Mounting type - cylinder side connection | Bearing |
| Mounting type - rod side connection | Hook |
| Nominal pressure | 200 BAR |
| Oil connections distance | 271.5 mm |
| Outside diameter | 80 mm |
| Product details | Cat. 2 and 3 three-point link, With length indicator, Type TCVNN is equipped with a controlled check valve, Type TCVNNE is equipped with a controlled check valve and an extended rod end on the tractor side, Maximum radial load: 10% of the axial load, Medium: mineral oil, HLP ISO VG 32 to ISO VG 46, Purity of medium: ISO 4406 22/20/17 or NAS 9, Always ensure the hydraulic top link has enough movement on the tractor side to avoid potential breakage or safety issues. If necessary, consider using a TCVNNE top link with an extended rod end. |
| Pros | Easy reading of the setting, Top link cylinder maintains its position, Extended rod end |
| RAL colour code | 9005 |
| Rod diameter | 35 mm |
| Rod material | Steel 20MnV6 |
| Rod surface treatment | Chromated |
| Stroke | 230 mm |
| Top link category - cylinder connection | 2 |
| Top link category - rod connection | 2 |
| Unit | Each |
Logistics
| EAN | 8719493237535 |
|---|---|
| Unit of measure | EA |
| Weight | 14486 g |
| Dimensions | 800 × 170 × 85 mm |
| Dangerous goods | No |
You might also like
BPA000167062

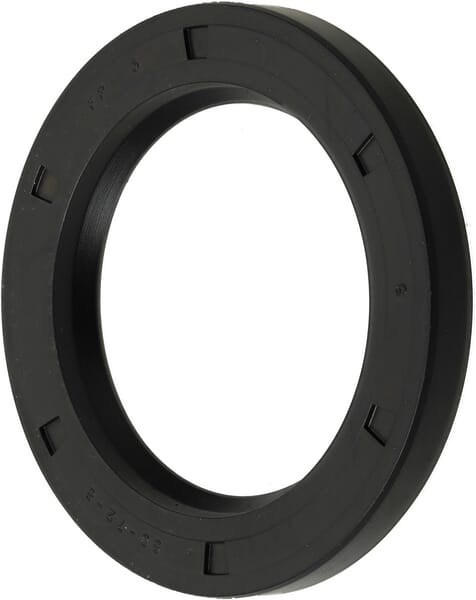

Kramp Oil seal 72x100x10mm type:CC DIN 3760 1x 7210010CCP001
£4.86 excl.
£5.83 incl.
In stock
Expected to ship on Monday 21 September
BPA000309698
Kramp Grip 175A housing LASB175GRIP
£23.82 excl.
£28.58 incl.
In stock
Expected to ship on Monday 21 September
BPA000270439

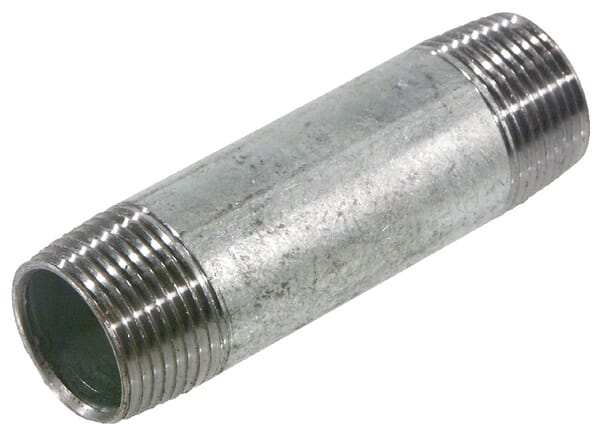

Kramp Pipe nipple galv. 3/8"x100mm FG2338100
£1.51 excl.
£1.81 incl.
In stock
Expected to ship on Monday 21 September
BPA000171900
Kramp Drop lock catch M12x1.75x25mm diameter 18mm 770041KR
£2.16 excl.
£2.59 incl.
In stock
Expected to ship on Monday 21 September
BPA000304652
Kramp Polo Sweatshirt navy L KW106930536054
£43.74 excl.
£52.49 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000000543

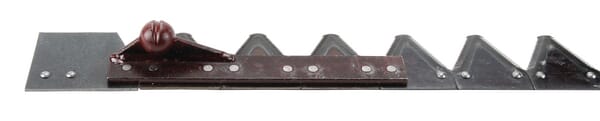

Kramp Knife 10" T/S 0006112102KR
