£216.61
excl. VAT
£259.93 incl. VAT
£259.93
incl. VAT
£216.61 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

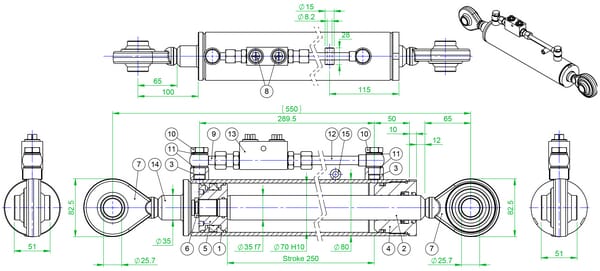

Product details
| Colour | Black |
|---|---|
| Cylinder bore diameter | 70 mm |
| Cylinder material | Steel ST52 |
| Includes | Cylinder, Operated check valve, Ball, Actuation cable |
| Max. length | 870 mm |
| Max. piston speed | 0.1 m/s |
| Max. pull capacity at 200 bar | 5.8 t |
| Max. push capacity at 200 bar | 7.7 t |
| Max. working pressure | 250 BAR |
| Min. length | 620 mm |
| Mounting hole diameter - cylinder connection | 25.7 mm |
| Mounting hole diameter - rod connection | 25.7 mm |
| Mounting thread diameter - cylinder connection | 3/8 Inch |
| Mounting thread diameter - rod connection | 3/8 Inch |
| Mounting thread type - cylinder connection | BSP |
| Mounting thread type - rod connection | BSP |
| Mounting type - cylinder side connection | Bearing |
| Mounting type - rod side connection | Hook |
| Nominal pressure | 200 BAR |
| Oil connections distance | 291.5 mm |
| Outside diameter | 80 mm |
| Product details | Cat. 2 and 3 three-point link, With length indicator, Type TCVNN is equipped with a controlled check valve, Type TCVNNE is equipped with a controlled check valve and an extended rod end on the tractor side, Maximum radial load: 10% of the axial load, Medium: mineral oil, HLP ISO VG 32 to ISO VG 46, Purity of medium: ISO 4406 22/20/17 or NAS 9, Always ensure the hydraulic top link has enough movement on the tractor side to avoid potential breakage or safety issues. If necessary, consider using a TCVNNE top link with an extended rod end. |
| Pros | Easy reading of the setting, Top link cylinder maintains its position, Extended rod end |
| RAL colour code | 9005 |
| Rod diameter | 35 mm |
| Rod material | Steel 20MnV6 |
| Rod surface treatment | Chromated |
| Stroke | 250 mm |
| Top link category - cylinder connection | 2 |
| Top link category - rod connection | 2 |
| Unit | Each |
Logistics
| EAN | 8719493368048 |
|---|---|
| Unit of measure | EA |
| Weight | 13700 g |
| Dimensions | 735 × 170 × 85 mm |
| Dangerous goods | No |
You might also like
BPA000203406

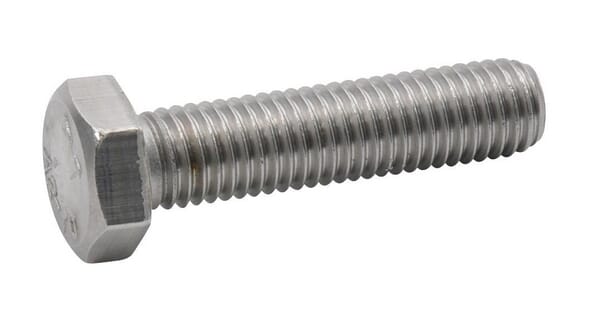

Kramp Hexagon head bolt DIN933 M16x160 stainless steel A2 93316160RVSP001
£4.83 excl.
£5.79 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000271236
Kramp Blade L: 457mm, round hole: diameter 15.8 suitable for Scag by FGP013057
£20.08 excl.
£24.10 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000198250
Kramp Hexagon head bolt DIN931 M24x400 steel zinc-plated 8.8 93124400
£9.50 excl.
£11.40 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000273051

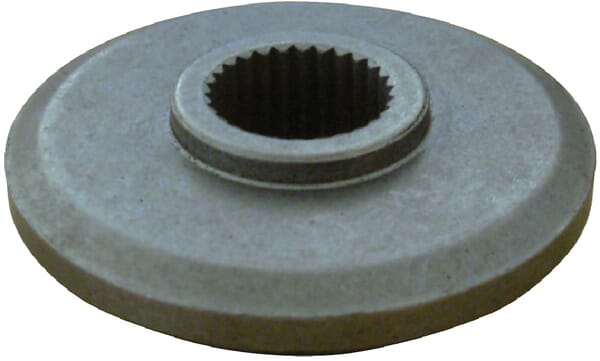

Kramp Blade holder Murray FGP456793
£8.03 excl.
£9.64 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000382743

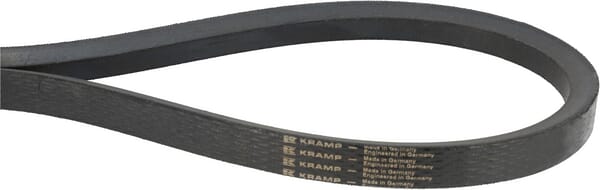

Kramp V-belt 13x1422 Li VB131422KR
£6.96 excl.
£8.35 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000250008

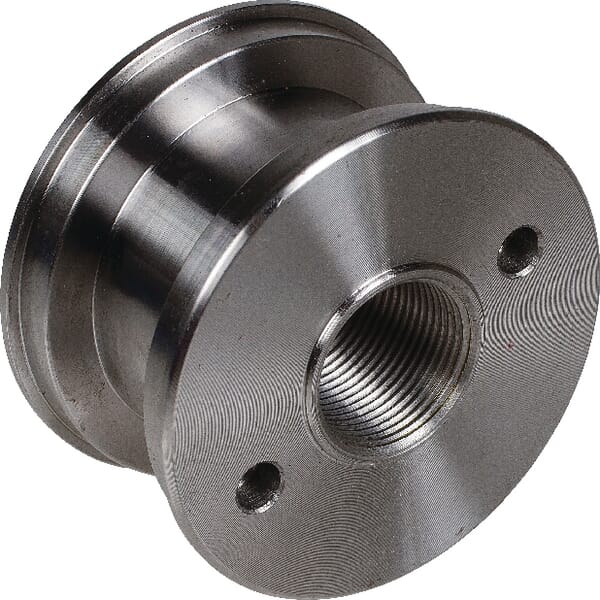

Kramp Piston without seals, bore 80mm DS2908004
