£14.75
excl. VAT
£17.70 incl. VAT
£17.70
incl. VAT
£14.75 excl. VAT
In stock
Expected to ship on Monday 21 September
About this product
A DIN 3760 oil seal measuring 125 mm inside diameter, 150 mm outside diameter, and 13 mm width, supplied as a single piece. This type DC seal features a steel sheath with reinforcement and an integrated dust lip. The sealing element is moulded from nitrile rubber (NBR) and the spring is zinc-plated steel. The rubber outer sheath is designed to compensate for expansion and unevenness in the housing bore. The seal operates across a temperature range of −35 °C to 100 °C and is intended for sealing rotating machine components. The unit weighs 165 g. EAN 8716106239597.
Product details
| Application range | For sealing rotating machine components |
|---|---|
| Content in sale unit | 1 pcs |
| d1Inside diameter | 125 mm |
| d2Outside diameter | 150 mm |
| hRetaining ring width | 13 mm |
| Long description | Oil seals inside Ø 125 mm |
| Manufacturer Product ID | 10009691 |
| Material spring | Spring steel |
| Properties | rubber outer sheath compensates for expansion and unevenness in the housing bore, With zinc-plated steel spring |
| Sealing material | Nitrile rubber [NBR] |

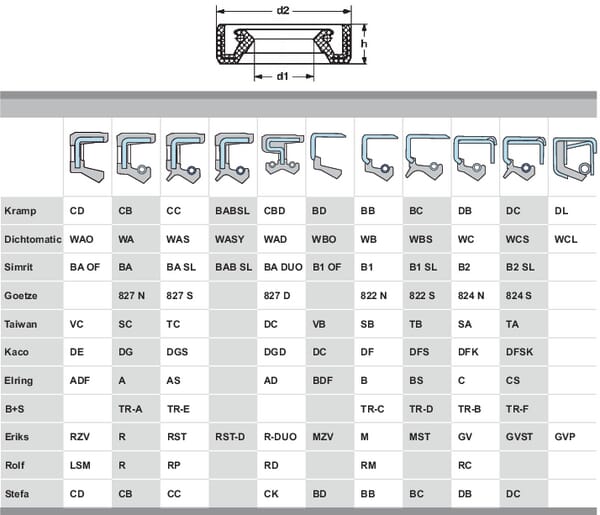

| Technical info | CB: rubber sheath, without dust lip, CC: rubber sheath, with dust lip, BB: steel sheath, without dust lip, BC: steel sheath, with dust lip, DB: steel sheath, with reinforcement, without dust lip, DC: steel sheath, with reinforcement, with dust lip |
| Temperature range | -35-100 °C |
| Type | DC |
| Unit | Each |
| With dust lip | Yes |
Logistics
| EAN | 8716106239597 |
|---|---|
| Unit of measure | EA |
| Weight | 165 g |
| Dimensions | 150 × 150 × 14 mm |
| Dangerous goods | No |
You might also like
BPA000076168
Kramp Oil seal 26x38x7mm type:CC DIN 3760 1x 26387CCP001
£1.98 excl.
£2.38 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000050800

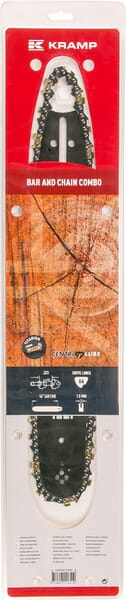

Kramp Bar and chain Combo 15" narrow kerf 15325NK136411095KR
£28.28 excl.
£33.94 incl.
In stock
Expected to ship on Monday 21 September
BPA000197708

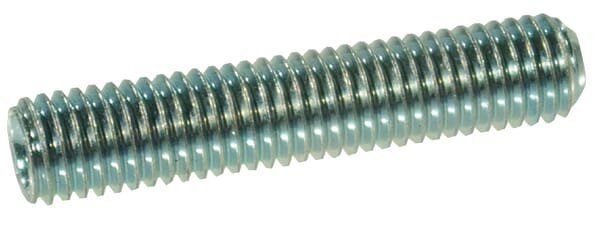

Kramp Grub screw DIN916 M6x25 steel zinc-plated 45H 916625P025
£0.26 excl.
£0.31 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000326798
Kramp Clutch bearing NWB2414
£196.26 excl.
£235.51 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000197166

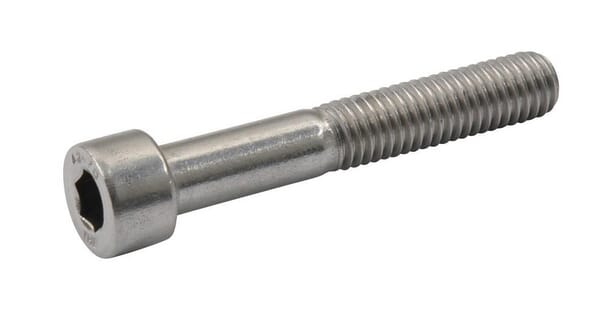

Kramp Hexagon socket head cap screw DIN912 M6x80 stainless steel A2 912680RVSP025
