£7.09
excl. VAT
£8.51 incl. VAT
£8.51
incl. VAT
£7.09 excl. VAT
In stock
Expected to ship on Friday 18 September
Product details
| CGroove thickness | 4 mm |
|---|---|
| d1Piston diameter | 28.5 mm |
| dsGuide ring chamber diameter | 26.5 mm |
| Includes | 1 sealing element, 2 back rings, 2 guide rings with cut |
| L1Guide ring chamber width | 6.35 mm |
| LWidth | 15.4 mm |
| Material | Nitrile rubber [NBR] |
| Max. working pressure | 400 BAR |
| Max. working temperature | 100 °C |
| Min. working temperature | -30 °C |
| ØdInside diameter | 17 mm |
| ØDOutside diameter | 30 mm |
| Product details | 5-piece piston seal, The back-up and guide rings are cut, Suitable for medium to high operating pressures, Interchangeable with the most common double-acting piston seals such as DAS, OP, DBM, TPM and EPM, Separable pistons, Fixed pistons, Piston seal for double-acting cylinders |
| Pros | Perfect sealing even at high peak pressures, Seal is easy to install |
| Type | Piston seal |
| Type code | 780 |
| Unit | Each |
Logistics
| EAN | 8719607303040 |
|---|---|
| Unit of measure | EA |
| Weight | 12 g |
| Dimensions | 31 × 31 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000269130

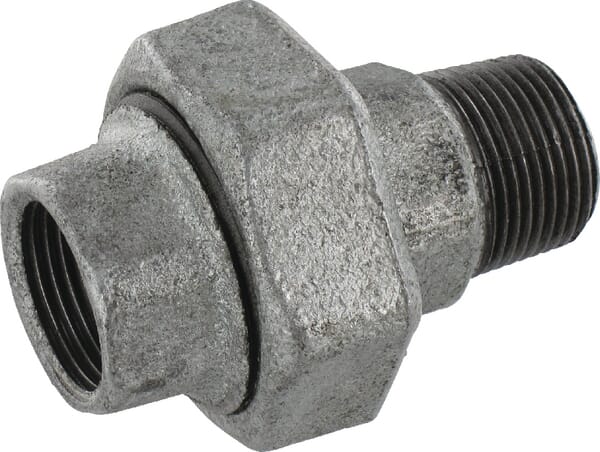

Kramp Coupling female/male zn. 3/4" FG34134L
£7.48 excl.
£8.98 incl.
In stock
Expected to ship on Friday 18 September
BPA000089525
Kramp Brush coco.29cm painted FSC 3301308KR
£3.67 excl.
£4.40 incl.
In stock
Expected to ship on Friday 18 September
BPA000326807

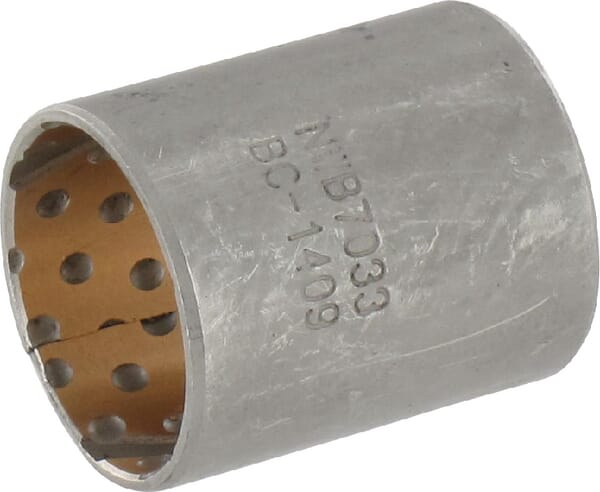

Kramp Bush for steering cylinder NWB7033
£9.71 excl.
£11.65 incl.
In stock
Expected to ship on Friday 18 September
BPA000272107
Kramp Reducer bush diameter 19.05x25.4mm diameter 3/4x1" FGP408051B
£1.00 excl.
£1.20 incl.
In stock
Expected to ship on Friday 18 September
BPA000253370

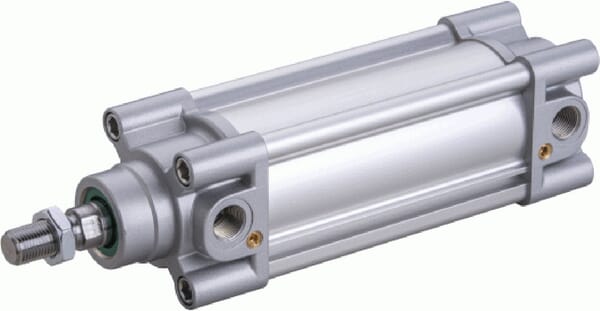

Kramp Standard cylinder DN4080CMG2
