£137.57
excl. VAT
£165.08 incl. VAT
£165.08
incl. VAT
£137.57 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

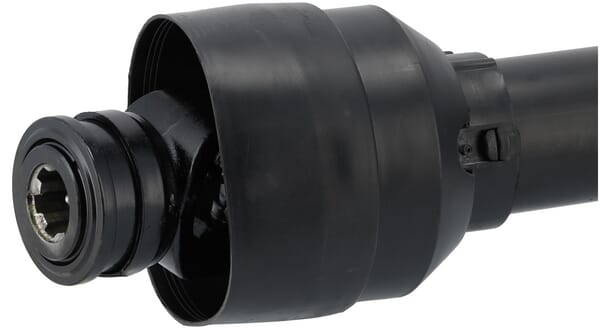

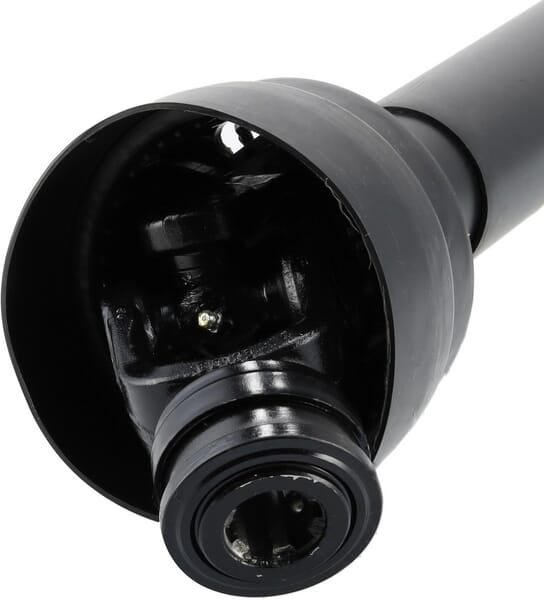

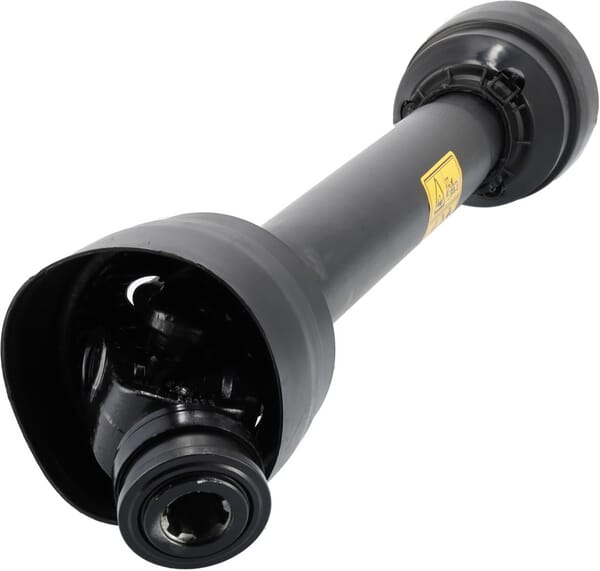

Product details
| Attachment machine side | Clamp yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Connection inside diameter by machine side | 25 mm |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 22 mm |
| Cross joint bush diameter by tractor side | 22 mm |
| Cross joint length by machine side | 54 mm |
| Cross joint length by tractor side | 54 mm |
| Inner tube large outside diameter | 26.5 mm |
| Inner tube wall thickness | 3.5 mm |
| Length | 910 mm |
| Locking type by machine side | Clamp bolt (non interfering) |
| Locking type by tractor side | Collar lock |
| Max dynamic torque | 320 N·m |
| Outer tube large outside diameter | 32.5 mm |
| Outer tube wall thickness | 2.6 mm |
| Power 1000 rpm | 18 kW |
| Power 540 rpm | 12 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for tedders, hay rakes, crop sprayers etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 12 kW - 210 Nm, Max. dynamic capacity 1000 rpm - 18 kW - 172 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T10 |
| Unit | Each |
Logistics
| EAN | 8719493249507 |
|---|---|
| Unit of measure | EA |
| Weight | 10302 g |
| Dimensions | 1390 × 130 × 130 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000367254
Kramp PTO drive shaft T10 L=1210mm T10121SC12C12KR
£130.49 excl.
£156.59 incl.
In stock
Expected to ship on Friday 18 September
BPA000204020
Kramp Hexagon head bolt DIN960 M12x1.25x75 steel 8.8 9601212575B
£1.32 excl.
£1.59 incl.
In stock
Expected to ship on Friday 18 September
BPA000030812
Kramp Starter cord diameter 4.5mm 11221902900KR
£1.35 excl.
£1.62 incl.
In stock
Expected to ship on Friday 18 September
BPA000330505
Kramp O-ring 64x5mm 90 shore OR64590P001
£1.57 excl.
£1.88 incl.
In stock
Expected to ship on Friday 18 September
BPA000331321
Kramp O-ring 92x3mm 70 shore OR923P001
£1.07 excl.
£1.28 incl.
In stock
Expected to ship on Friday 18 September
BPA000324243

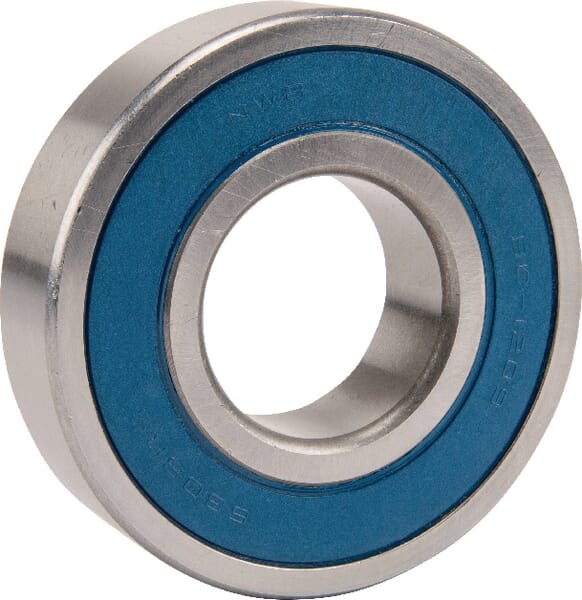

Kramp Bearing NWB01486
