£130.49
excl. VAT
£156.59 incl. VAT
£156.59
incl. VAT
£130.49 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 22 mm |
| Cross joint bush diameter by tractor side | 22 mm |
| Cross joint length by machine side | 54 mm |
| Cross joint length by tractor side | 54 mm |
| Inner tube large outside diameter | 26.5 mm |
| Inner tube wall thickness | 3.5 mm |
| Length | 1210 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max dynamic torque | 320 N·m |
| Original number equivalent | 07.125.111.11 |
| Outer tube large outside diameter | 32.5 mm |
| Outer tube wall thickness | 2.6 mm |
| Power 1000 rpm | 18 kW |
| Power 540 rpm | 12 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for tedders, hay rakes, crop sprayers etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 12 kW - 210 Nm, Max. dynamic capacity 1000 rpm - 18 kW - 172 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T10 |
| Unit | Each |
Logistics
| EAN | 8719493249231 |
|---|---|
| Unit of measure | EA |
| Weight | 10705 g |
| Dimensions | 1445 × 130 × 130 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000367253
Kramp PTO drive shaft T10 L=1210mm T10121SC12342KR
£137.57 excl.
£165.08 incl.
In stock
Expected to ship on Friday 18 September
BPA000330469
Kramp O-ring 63.5x3.53mm 70 shore OR6350353P001
£1.14 excl.
£1.37 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000305773
Kramp Flow control valve NG6 KRMTI03B
£134.05 excl.
£160.86 incl.
In stock
Expected to ship on Monday 21 September
BPA000193073
Kramp Oil seal 90x118x12mm type:BC DIN 3760 1x 9011812BCP001
£12.89 excl.
£15.47 incl.
In stock
Expected to ship on Friday 18 September
BPA000152209
Kramp Coach bolt DIN603 M12x90 stainless steel A2 6031290RVSP025
£1.69 excl.
£2.03 incl.
In stock
Expected to ship on Friday 18 September
BPA000151328

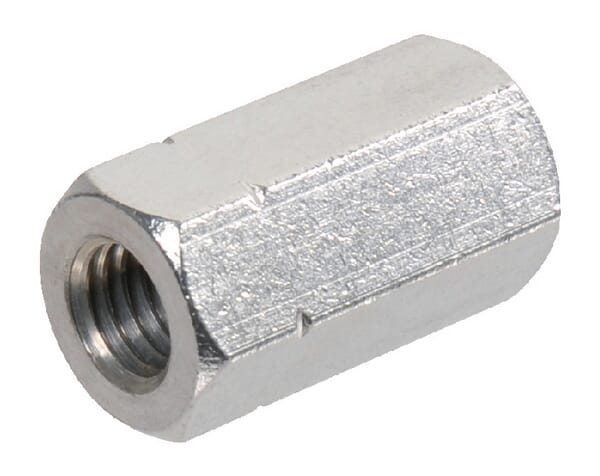

Kramp Connection nut DIN6334 M24x3.00 steel zinc-plated Class 6 633424
