£73.36
excl. VAT
£88.03 incl. VAT
£88.03
incl. VAT
£73.36 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 22 mm |
| Cross joint bush diameter by tractor side | 22 mm |
| Cross joint length by machine side | 54 mm |
| Cross joint length by tractor side | 54 mm |
| Inner tube large outside diameter | 26.5 mm |
| Inner tube wall thickness | 3.5 mm |
| Length | 860 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max dynamic torque | 320 N·m |
| Outer tube large outside diameter | 32.5 mm |
| Outer tube wall thickness | 2.6 mm |
| Power 1000 rpm | 18 kW |
| Power 540 rpm | 12 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for tedders, hay rakes, crop sprayers etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 12 kW - 210 Nm, Max. dynamic capacity 1000 rpm - 18 kW - 172 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T10 |
| Unit | Each |
Logistics
| EAN | 8719493481303 |
|---|---|
| Unit of measure | EA |
| Weight | 8700 g |
| Dimensions | 865 × 200 × 200 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000250030
Kramp Tube 90mm stroke 500 L=632 DS29090070500
£107.70 excl.
£129.24 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000069971

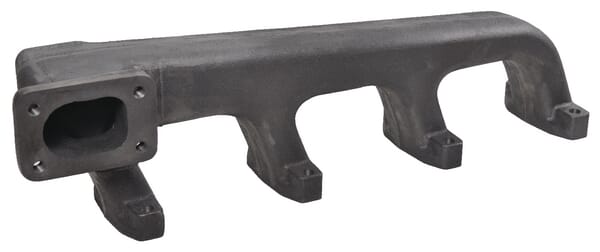

Kramp Exhaust manifold 2242032KR
£96.49 excl.
£115.79 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000326992
Kramp Seal NWS00466
£12.18 excl.
£14.62 incl.
In stock
Expected to ship on Friday 18 September
BPA000174651

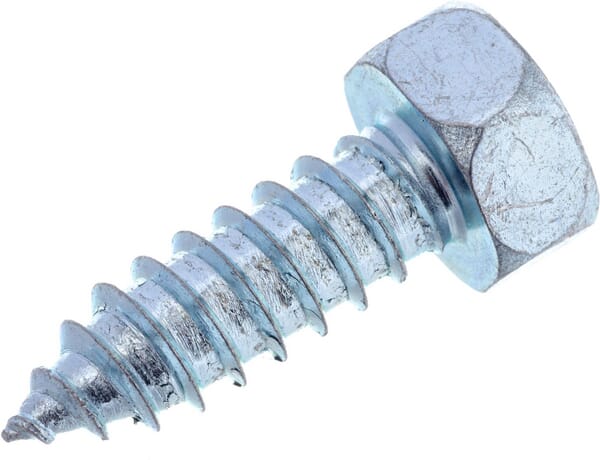

Kramp Self tapping screw 6.3x19mm, 10mm hex head, DIN 7976C 7976C6319P200
£0.09 excl.
£0.11 incl.
In stock
Expected to ship on Friday 18 September
BPA000188664

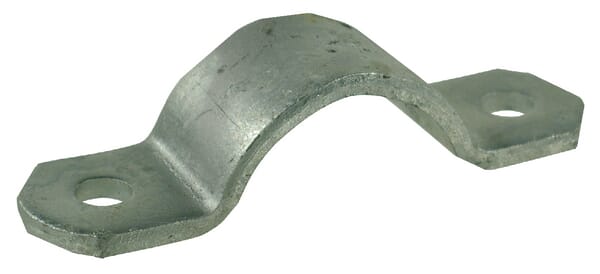

Kramp Pipe clamp galvanized 1" 82601
