£107.70
excl. VAT
£129.24 incl. VAT
£129.24
incl. VAT
£107.70 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

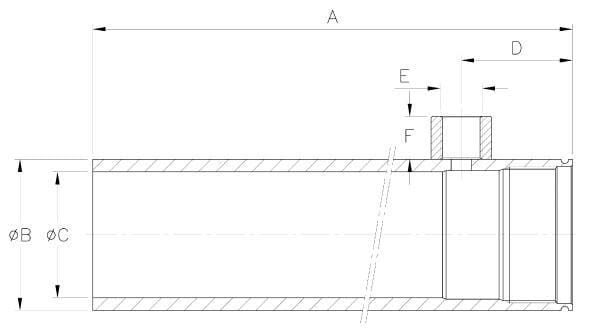

| Application range | Double-acting Saturn cylinder, Year of construction after 05/2009 |
|---|---|
| ATotal length | 632 mm |
| BOutside diameter | 102 mm |
| CInside diameter | 90 mm |
| DCylinder tube length | 63 mm |
| FOil connection length | 18 mm |
| Material | Steel ST52-3 |
| Oil connections thread diameter | 1/2 Inch |
| Oil connections thread type | BSP |
| Properties | Up to and including bore 90: 0.8 RA, From bore 90: 0.4 RA |
| Stroke | 500 mm |
| Suitable for cylinder series | C25 |
| Thread diameter | M95 |
| Thread pitch | 2.00 mm |
| Unit | Each |
Logistics
| EAN | 8719732824250 |
|---|---|
| Unit of measure | EA |
| Weight | 3500 g |
| Dimensions | 630 × 100 × 100 mm |
| Dangerous goods | No |
