£101.44
excl. VAT
£121.73 incl. VAT
£121.73
incl. VAT
£101.44 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

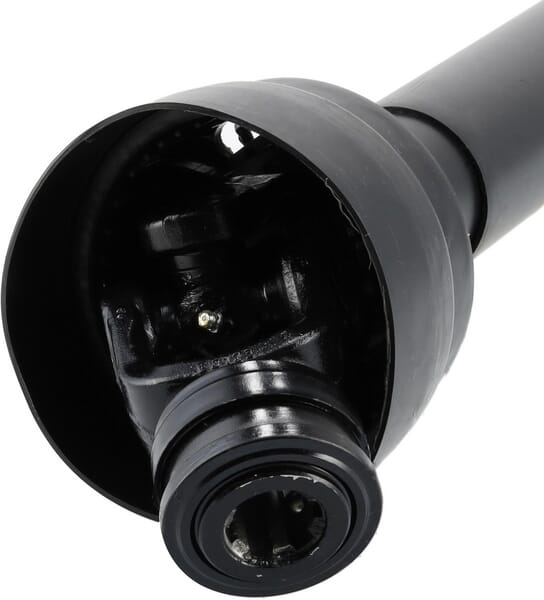

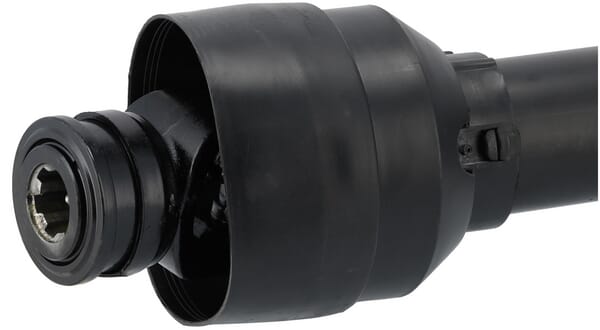

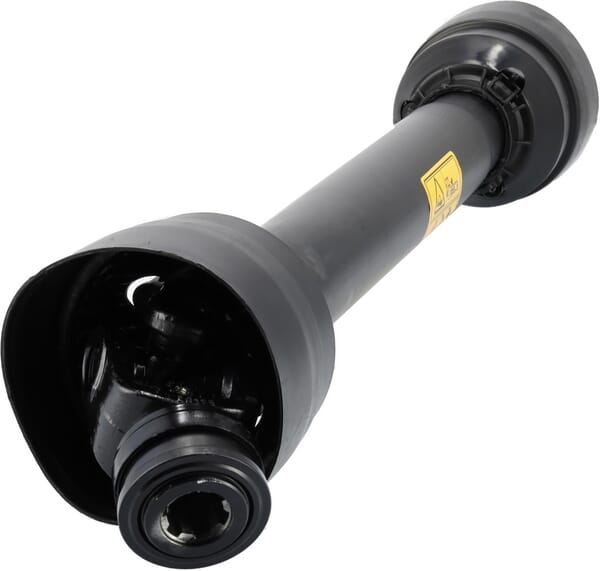

| Attachment machine side | Quick disconnect yoke |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 23.8 mm |
| Cross joint bush diameter by tractor side | 23.8 mm |
| Cross joint length by machine side | 61.3 mm |
| Cross joint length by tractor side | 61.3 mm |
| Inner tube large outside diameter | 29 mm |
| Inner tube wall thickness | 4 mm |
| Length | 560 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max dynamic torque | 450 N·m |
| Outer tube large outside diameter | 36 mm |
| Outer tube wall thickness | 3.2 mm |
| Power 1000 rpm | 23 kW |
| Power 540 rpm | 15 kW |
| Product details | Cost-effective alternative in the PTO range and suitable for tedders, hay rakes, crop sprayers, fertiliser spreaders etc., CE and UKCA certified, Max. dynamic capacity 540 rpm - 15 kW - 270 Nm, Max. dynamic capacity 1000 rpm - 23 kW - 220 Nm, Values at working angle 5° and service life 1000 hours, Lubrication interval: 8 hours |
| Profile tube shape | Triangular |
| Size code | T20 |
| Unit | Each |
Logistics
| EAN | 8719493249255 |
|---|---|
| Unit of measure | EA |
| Weight | 8809 g |
| Dimensions | 800 × 130 × 130 mm |
| Dangerous goods | No |
You might also like
BPA000270390
Kramp Pipe nipple S.S. 1"x60mm FG23160RVS
£4.33 excl.
£5.20 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000321822
Kramp Bearing NWB09166
£55.41 excl.
£66.49 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000198077
Kramp Hexagon head bolt DIN931 M20x220 steel hot dip galvanized 8.8 93120220TV
£7.37 excl.
£8.84 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000187595
Kramp Roll pin, heavy duty 6x26mm ISO8752 8752626
£0.16 excl.
£0.19 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000198173
Kramp Hexagon head bolt DIN931 M24x100 steel 10.9 93124100109B
£5.21 excl.
£6.25 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000144443

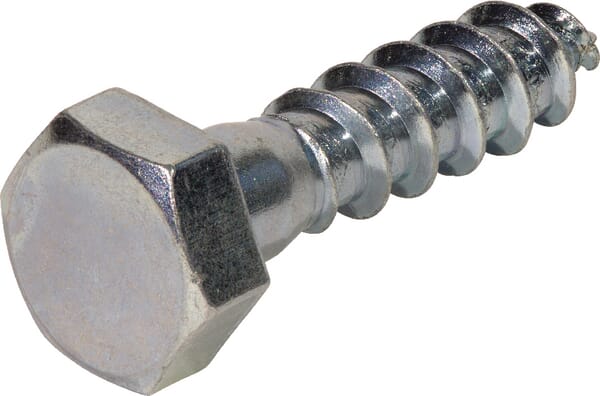

Kramp Wood screw 12x180mm, 19mm hex head, DIN 571 57112180P025
