£18.58
excl. VAT
£22.30 incl. VAT
£22.30
incl. VAT
£18.58 excl. VAT
In stock
Expected to ship on Friday 18 September
About this product

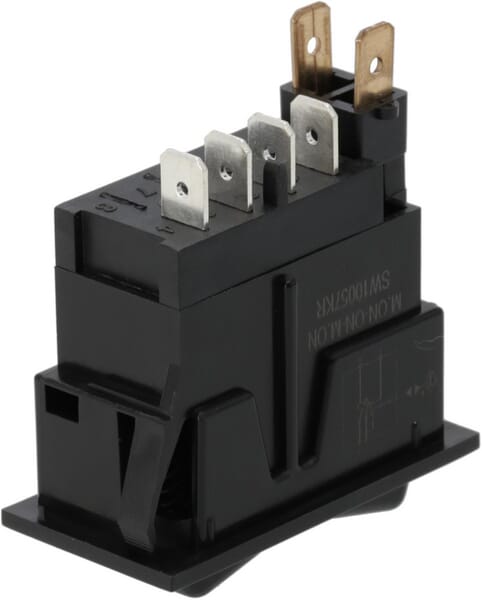

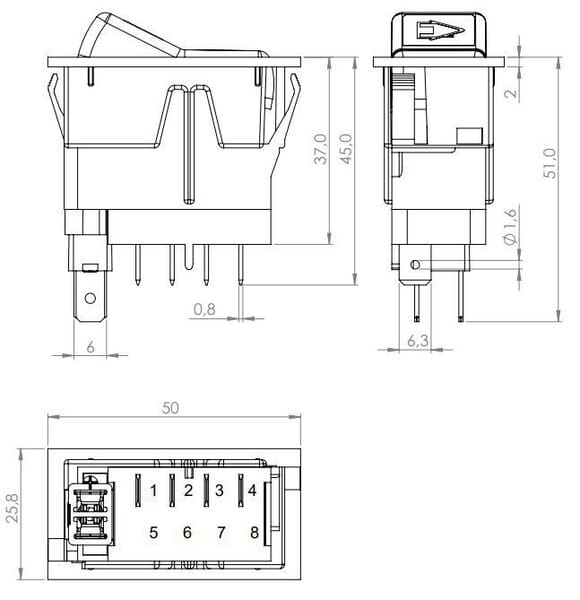

A 12V rocker switch with four-pin blade terminals, supplied as a single unit with integrated function lighting. The switch features a black rocker button and operates in a mom-on-mom configuration with three command positions: position I, centre (0), and position II, suitable for home position or entry applications. The switch is illuminated and lights up when activated; a 12V lamp bulb is included. The insulation class is rated at 54. The switch measures 75 mm length by 55 mm width by 36 mm height and weighs 35 g. For 24V operation, a replacement 24V lamp should be used. Note that the pin count includes the two pins supplied from the integrated bulb. The product carries the EAN 8719493184730.
Product details
| Bulbs included | Yes |
|---|---|
| Colour button | Black |
| Extra info | Lights up when the switch is activated |
| Function | Mom-On-Mom, 0, I, II, Home position/entry |
| Insulation class | 54 |
| Light type | Function lighting |
| Number of command positions | 3 |
| Number of contacts | 4 |
| Product details | For 24V use, replace and use a 24V lamp, Please notice that the pin counting include the 2 pins from the bulb |
| Suitable for illumination | Yes |
| Supply voltage lamp | 12 V |
| Supply voltage range of the bulb | 12-24 V |
| Type of button | Rocker |
| Type of electric connection | Blade terminals |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8719493184730 |
|---|---|
| Unit of measure | EA |
| Weight | 35 g |
| Dimensions | 75 × 55 × 36 mm |
| Dangerous goods | No |
You might also like
BPA000157605

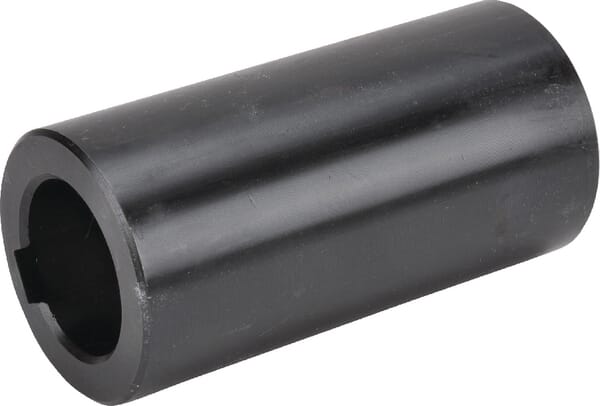

Kramp Round bore 32x50x100+10mm Key 6740175KR
£18.89 excl.
£22.67 incl.
In stock
Expected to ship on Friday 18 September
BPA000200501
Kramp Split pin 5 x36 zinc plated 94536
£0.08 excl.
£0.10 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000305701

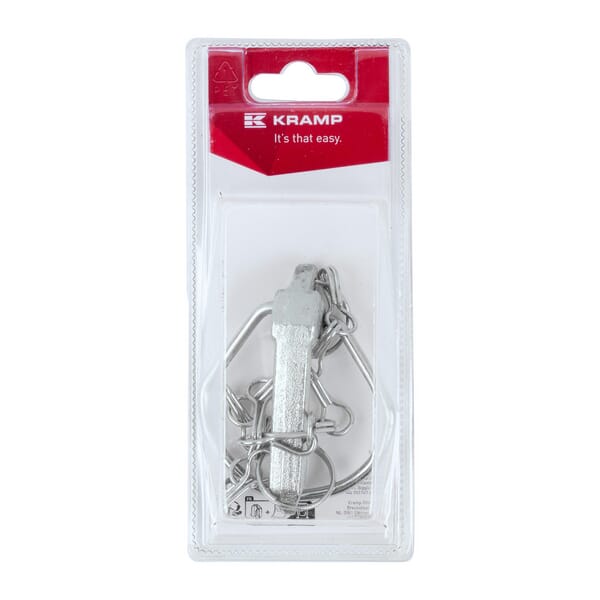

Kramp Linch pin 11mm x 48mm (1) KRLP911050KRP01B
£3.07 excl.
£3.68 incl.
In stock
Expected to ship on Friday 18 September
BPA000270320

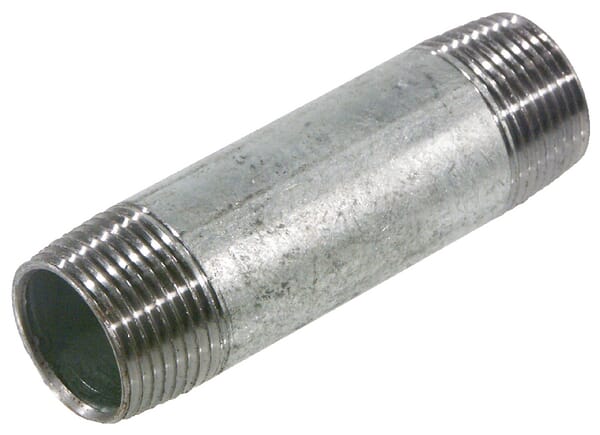

Kramp Pipe nipple galv. 1 1/4"x180mm FG23114180
£4.48 excl.
£5.38 incl.
In stock
Expected to ship on Friday 18 September
BPA000199448
Kramp Hexagon head bolt DIN931 M12x130 steel 10.9 93112130109B
£1.74 excl.
£2.09 incl.
In stock
Expected to ship on Friday 18 September
BPA000281596

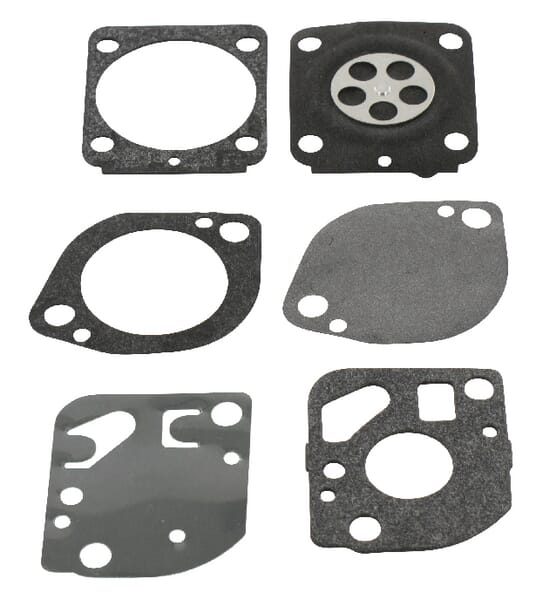

Kramp Membrane set GND72KR
