£45.59
excl. VAT
£54.71 incl. VAT
£54.71
incl. VAT
£45.59 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.

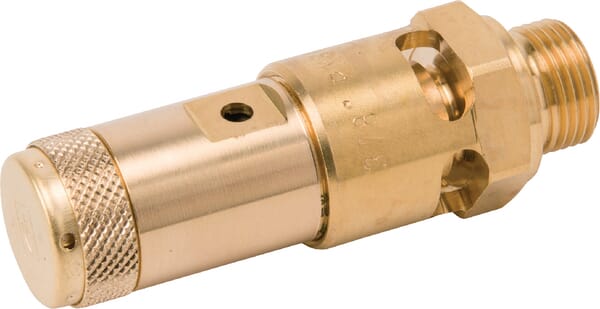

Product details
| Includes | Adjusted safety valve with fixed setting, CE certification : EN 10204 2.2 (Safety valves with a higher CE-certification can be specially ordered) |
|---|---|
| Long description | Safety valves for pneumatic installations are designed to protect the system from overpressure conditions. These valves automatically release air when the pressure within the system exceeds a predetermined limit, thereby preventing potential damage to equipment, reducing the risk of accidents and ensuring the safe operation of the pneumatic system. |
| Max. pressure | 8 BAR |
| Product details | Safety valve with fixed setting, CE-approved : EN 10204 2.2 (Safety valves with a higher CE-certification can be specially ordered), Upon request, any desired pressure between 0.3 and 47 bar may be ordered, For compressed air or neutral gases, Housing: Brass, Inner part: Brass, Compression spring: Stainless steel, Seals: Below 2.4 bar : Silicone, Seals: From 2.4 bar : Fluorubber, Temperature range: -10°C to +180°C |
| Thread diameter | 3/8 Inch |
| Total length | 10 mm |
| Unit | Each |
Logistics
| EAN | 8719607141604 |
|---|---|
| Unit of measure | EA |
| Weight | 147 g |
| Dimensions | 110 × 30 × 30 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000149856
Kramp Mouldboard 14 L P4 LH Kuhn 616075N
£192.33 excl.
£230.80 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000359728
Kramp Rod steel, outer diameter 70mm, 1m SM70C451
£121.74 excl.
£146.09 incl.
In stock
Expected to ship on Friday 18 September
BPA000283688
Kramp Hose fitting 9 mm x 1/8" HCMPOR918
£2.11 excl.
£2.53 incl.
In stock
Expected to ship on Monday 21 September
BPA000323115
Kramp Bearing NWB08389
£13.69 excl.
£16.43 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000088576
Kramp Timing pulley Type -T10 25Z 31T10252
£25.26 excl.
£30.31 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000362718

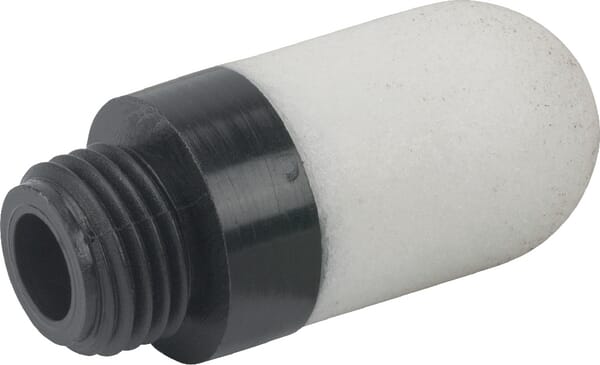

Kramp Silencer SIL14PLM
