£70.69
excl. VAT
£84.83 incl. VAT
£84.83
incl. VAT
£70.69 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.

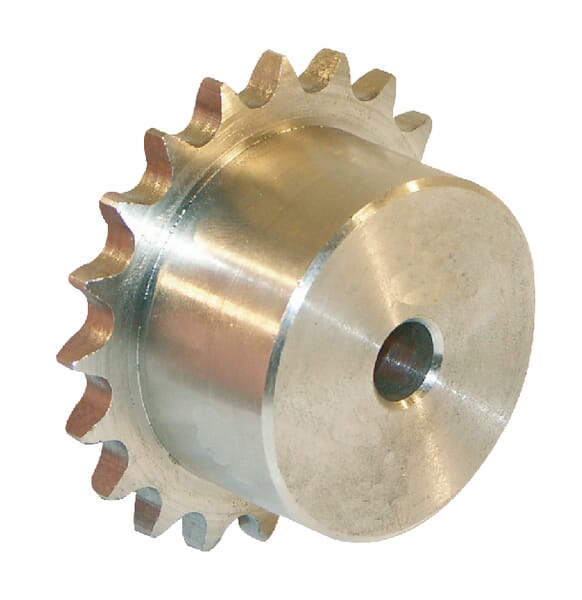

Product details
| Application range | Food industry, Damp environments |
|---|---|

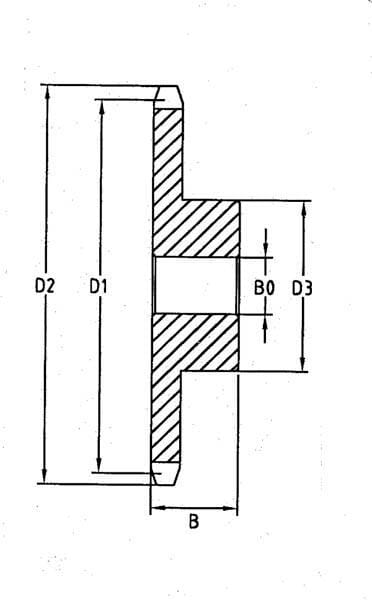

| B0Bore diameter | 16 mm |
| Bore | Yes |
| BWidth | 30 mm |
| Chain size code | 08 B-1 |
| D1Pitch diameter | 121.5 mm |
| D2Outside diameter | 126.3 mm |
| D3Hub diameter | 80 mm |
| Hub type | Hub one side |
| Material | Stainless steel 304 |
| Number of teeth | 30 |
| Technical info | Hub bore, keyway and tapped hole are optional, Recommended maximum bore: D3 x 0.6, - For type 08B1 chain |
| Teeth width | 7.2 mm |
| Type | Simplex |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1460 g |
| Dimensions | 127 × 127 × 30 mm |
| Dangerous goods | No |
You might also like
BPA000054113

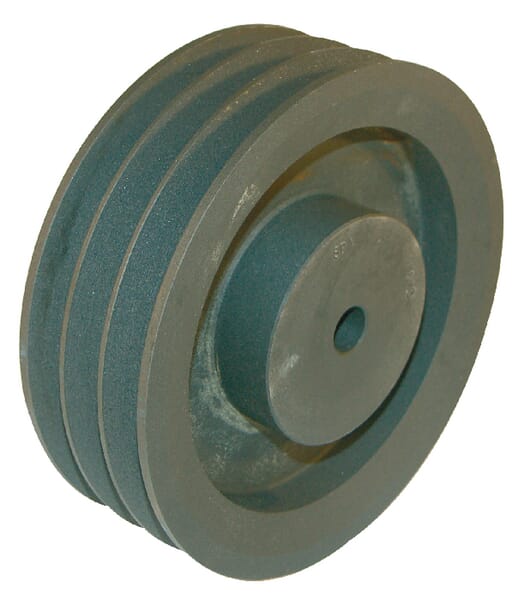

Kramp V-belt pulley 3 groove A or SPA diameter 175.50 mm 170A3
£79.31 excl.
£95.17 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000363017
Kramp Seat K-Lux, air sprung, 520mm, 12V, black SKL8201520BB
£808.09 excl.
£969.71 incl.
In stock
Expected to ship on Monday 21 September
BPA000307048
Kramp Work jacket, red-blue, size 3XL, EU:62, Kramp Original KW101030080062
£43.99 excl.
£52.79 incl.
In stock
Expected to ship on Monday 21 September
BPA000316382
Kramp Spur gear module 1 - Z=23 MOD123
£1.97 excl.
£2.36 incl.
In stock
Expected to ship on Monday 21 September
BPA000375465

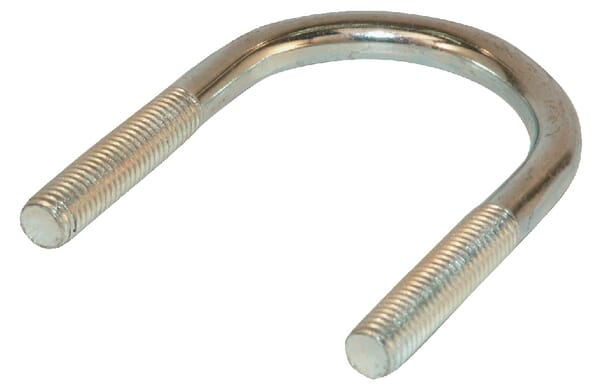

Kramp U bolt M16, 168,3mm - 6" UBM161683
