£83.20
excl. VAT
£99.84 incl. VAT
£99.84
incl. VAT
£83.20 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details

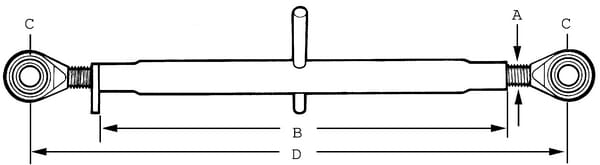

| Application range | M24 for tractors up to 42 kW, M27 for tractors up to 42 kW, cat. 1, M27 for tractors up to 75 kW, cat. 2, M30 for tractors up to 75 kW, M36 for tractors up to 135 kW |
|---|---|
| BRod length | 510 mm |
| Category by machine side | 1 |
| Category by tractor side | 1 |
| CConnection hole diameter by machine side | 19.4 mm |
| CConnection hole diameter by tractor side | 19.4 mm |
| Connections category | Eye - Eye |
| DMax working length | 820 mm |
| DMin working length | 620 mm |
| Long description | Toplink M24 x 3,0 - M36 x 3,0 |
| Properties | Zinc plated spindles, Tube, painted black |
| Rod outside diameter | 44.5 mm |
| Thread diameter | M27 |
| Thread pitch | 3.00 mm |
| Thread type | Metric |
| Unit | Each |
| Wall thickness | 5.5 mm |
Logistics
| EAN | 8716106070114 |
|---|---|
| Unit of measure | EA |
| Weight | 5200 g |
| Dimensions | 710 × 90 × 80 mm |
| Dangerous goods | No |
You might also like
BPA000240128

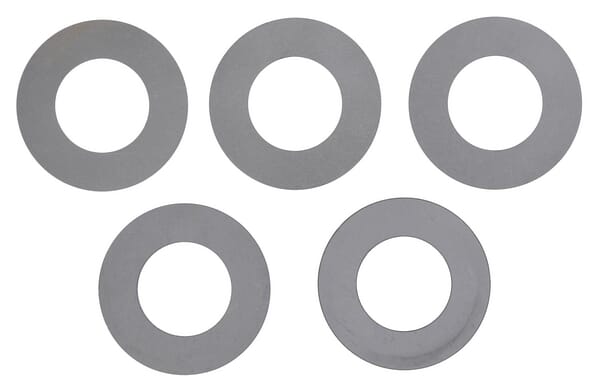

Kramp Shim set diameter 46x80mm CBS4580AKR
£5.25 excl.
£6.30 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000328470
Kramp O-ring 36x4mm 70 shore 10x OR364P010
£4.05 excl.
£4.86 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000298906
Kramp Socket head screw 10x12x25 ISO7379101225
£14.26 excl.
£17.12 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000070738

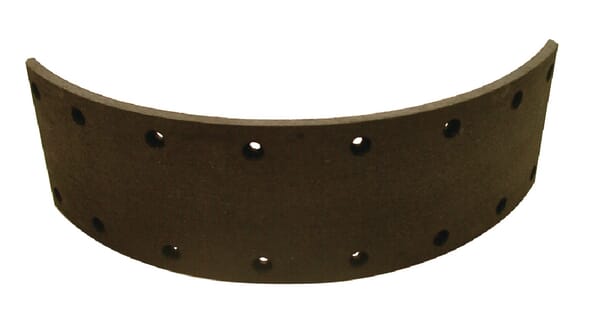

Kramp Brake lining Deutz 2305250N
£22.97 excl.
£27.56 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000285821

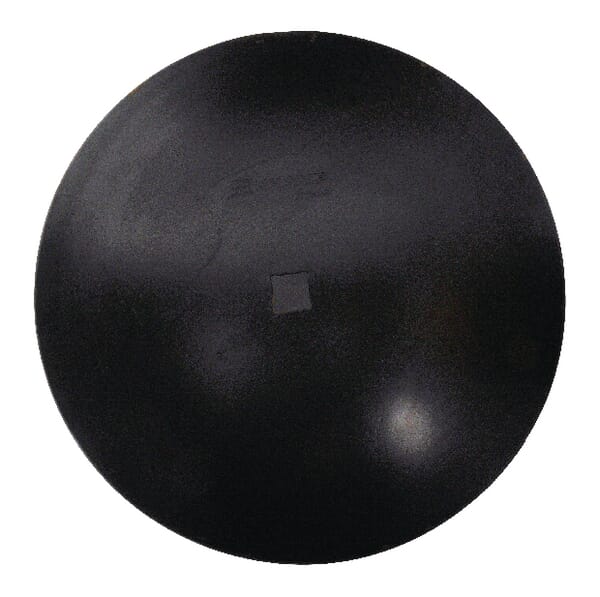

Kramp Harrow disc plain 710x6/41 HD710641KR
