£762.00
excl. VAT
£914.40 incl. VAT
£914.40
incl. VAT
£762.00 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details

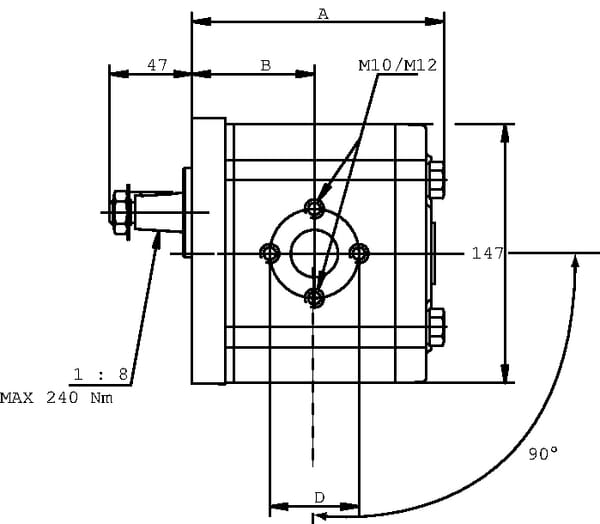

| Center to center pressure side | 40 mm |
|---|---|
| Center to center suction side | 51 mm |

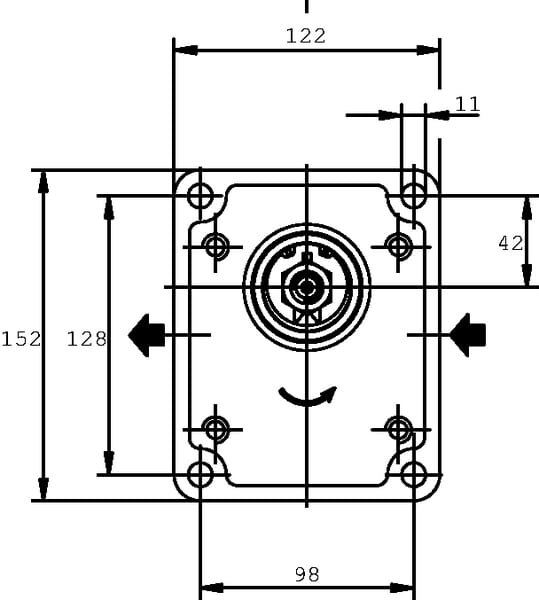

| Connection | European 4-hole flange |
| Length body | 141 mm |
| Length flange to center bore | 68.5 mm |
| Long description | The Casappa Polaris PLM series consists of compact and efficient hydraulic gear motors with a robust design, ideal for high-pressure applications. These gearmotors provide a long service life, low noise levels, and versatile mounting options, making them perfect for both industrial and mobile applications. |
| Material | Pump housing: Aluminium- Flange and back cover: Steel |

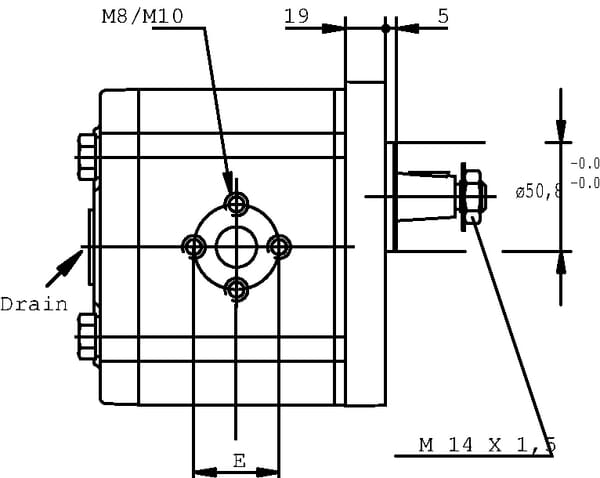

| Note | Always connect leakage oil line |
| P1 (bar) | 240 BAR |
| Pressure flange | 2 G-12 |
| Pressure max. | Pressure continuous (p1): 250 BAR |
| Product details | Only low axial and radial shaft loads possible, If the motor is equipped with a sprocket or a V-belt pulley, a preloaded bearing must be used, e.g., order number T324 |
| Pros | Compact en lichtgewicht, High efficiency, Long service life |
| Rotational speed min. | 350 r/min |
| Rotation max. | 3000 r/min |
| Shaft type | Tapered shaft 1 : 8 |
| Stroke volume | 39,27 cm³/rev |
| Suction flange | 3 G-12 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 9300 g |
| Dimensions | 200 × 155 × 125 mm |
| Dangerous goods | No |
You might also like
BPA000340667

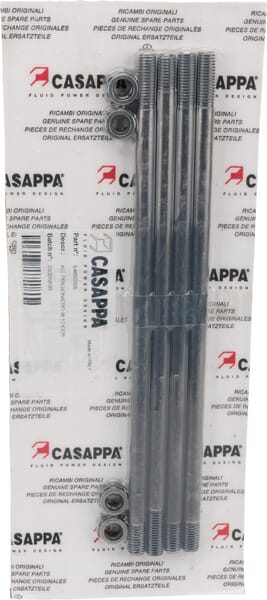

Casappa Tie bolts polaris 30 M12x340 PLP930M12320
£66.92 excl.
£80.30 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340337

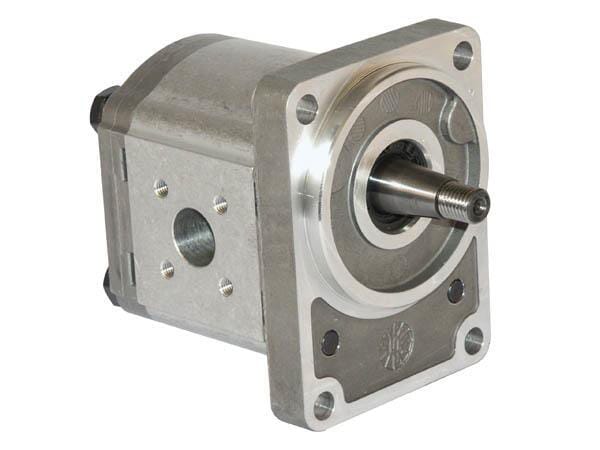

Casappa Pump PLP20.31,5D0-03S2-LEB/EA-N-EL PLP2031D003S2
£386.10 excl.
£463.32 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340455
Casappa Pump PLP30.73D0-83E3-LEF/ED-N-FS PLP3073D083E3
£528.44 excl.
£634.13 incl.
In stock
Expected to ship on Monday 21 September
BPA000340597
Casappa Tie bolts Polaris 20 M10x145 PLP920M10145
£17.41 excl.
£20.89 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000279356
Casappa Pump FP40.109-SO-19T1 FP40109S
£880.72 excl.
£1,056.86 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340190

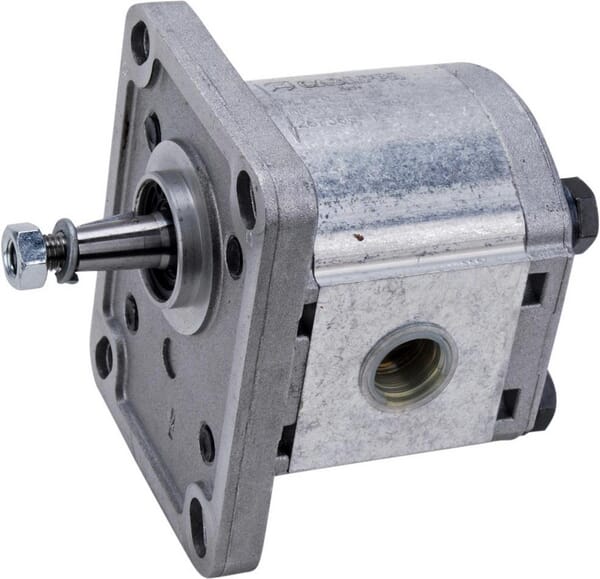

Casappa Pump PLP10.3,15 S0-81E1-LBB/BA PLP103S081E1
£220.22 excl.
£264.26 incl.
In stock
Expected to ship on Monday 21 September
Recently viewed
BPA000405280
GLT/LHG Bearing bush 28x32x10mm ZB283210PTFE
£0.58 excl.
£0.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000236956
Bburago New Holland T7.315 with haytrailer BB1844067
£34.50 excl.
£41.40 incl.
In stock
Expected to ship on Monday 21 September
BPA000223368
Kverneland / Accord Drill disc notched Z=11 complete, Accord AC821839
£49.56 excl.
£59.47 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000217055
Kverneland Tarpaulin mid vicon 432h A144013100
£704.55 excl.
£845.46 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000092706
Walterscheid Yoke, Profile tube, W2400/P400/W400E 3514157
£138.14 excl.
£165.77 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340070
Casappa Cartridge PLC051-175Bar PLD10/ PLD920VPE175
£78.46 excl.
£94.15 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000356846
Kramp Sprocket Duplex 18 teeth 1/2" chain 08 B-2 for taperlock bush 1210 SD1218TL
£13.29 excl.
£15.95 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000223482

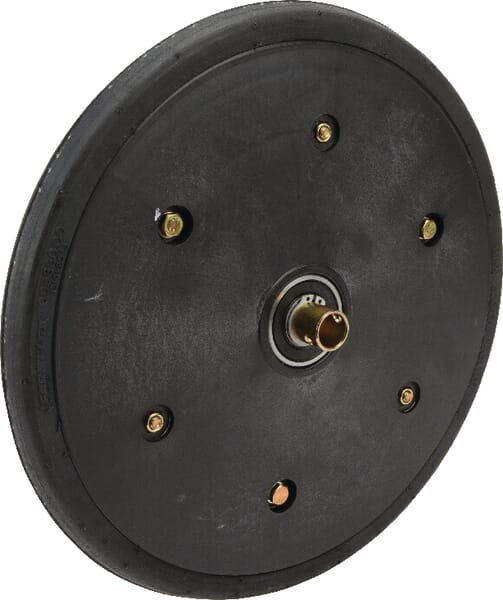

Kverneland / Accord Complete rubber V pr. rllr 310x25 AC825817
£117.16 excl.
£140.59 incl.
In stock
Expected to ship on Monday 21 September
BPA000270812

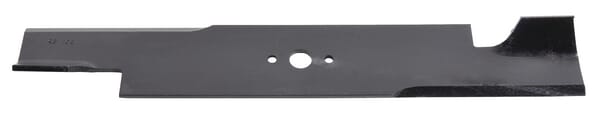

Kramp Blade L: 412mm, round hole: diameter 15.8 by FGP011060
